APC EasyPDU, Switched, Zero U, 22 kW, 230V, (30) C13 & (6) C19;IEC309

APC EasyPDU, Switched, Zero U, 22 kW, 230V, (30) C13 & (6) C19;IEC309
APC EasyPDU, Switched, Zero U, 22 kW, 230V, (30) C13 & (6) C19;IEC309
APC EasyPDU, Switched, Zero U, 22 kW, 230V, (30) C13 & (6) C19;IEC309
APC EasyPDU, Switched, Zero U, 22 kW, 230V, (30) C13 & (6) C19;IEC309
R58,263
It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 22 kW and operates at 230V with a 32A input cur... Read More
Stock Out Of StockNo Stock Code 1724115 Brand APC Model EPDU2232SX3620 Warranty 2 Years

Shipping & Returns

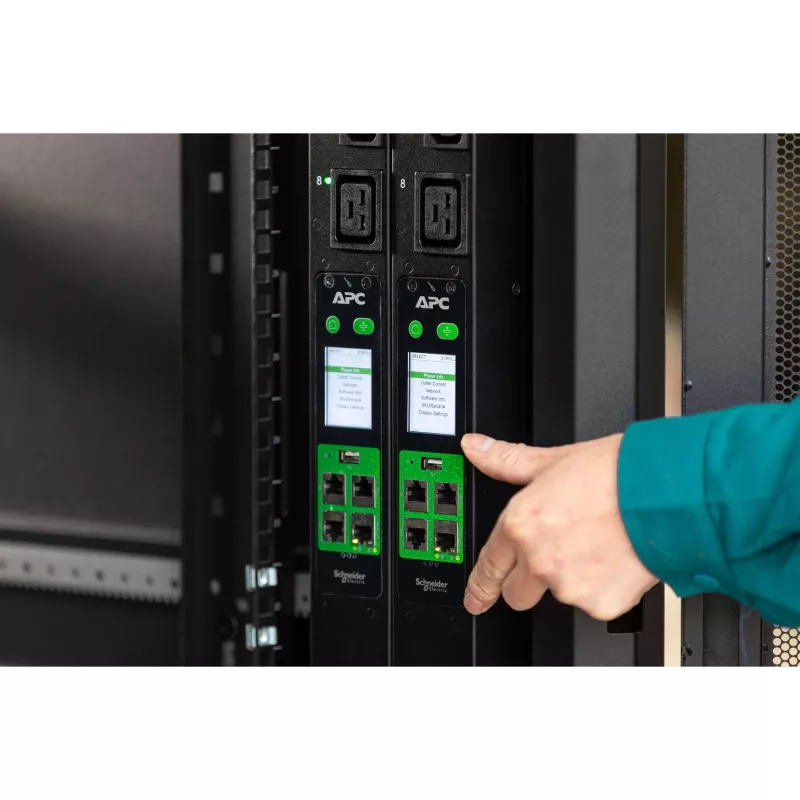

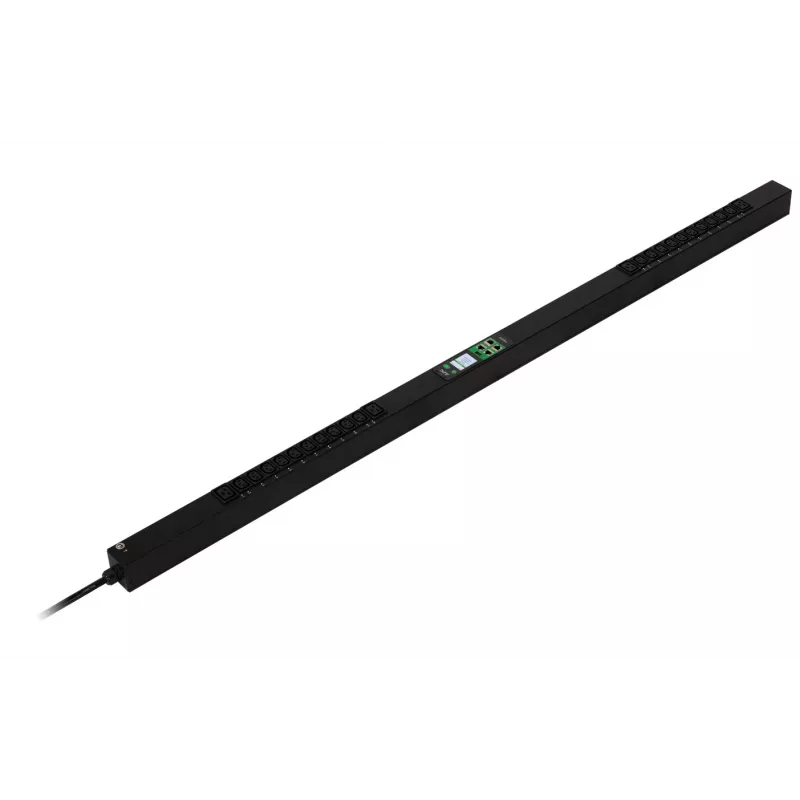

It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 22 kW and operates at 230V with a 32A input current. It includes 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. The unit is equipped with an IEC 60309 32A 3P+N+PE input plug and supports 3-phase power distribution. Additionally, it offers remote management capabilities, allowing users to monitor and control individual outlets for optimized power usage. The PDU is built with robust materials, ensuring durability and reliable performance in demanding environments.

APC EasyPDU, Switched, Zero U, 22 kW, 230V, (30) C13 & (6) C19;IEC309. PDU types: Switched, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 30 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C13 coupler. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50/60 Hz. Compliance certificates: CE, UKCA. Width: 56 mm, Depth: 62 mm, Height: 1800 mm

Key Highlights
  • input: 3PH, 32A, 200/346-240/415VAC
  • Outlets: (30) C13, (6) C19
  • Switched
  • Full-featured network management capability
  • Interactive LCD display
Specifications
AC input frequency
50/60 Hz
AC outlet types
C13 coupler, C19 coupler
AC outlets quantity
30 AC outlet(s)
Compliance certificates
CE, UKCA
Depth
62 mm
Height
1800 mm
Load capacity
22080 VA
Maximum current
32 A
Mounting
Vertical
Nominal input voltage
400 V
Nominal output voltage
230 V
Number of phases
3
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-5 - 50 °C
Output voltage
230 V
Package depth
1960 mm
Package height
1260 mm
Package weight
10.6 kg
Package width
170 mm
PDU types
Switched
Power plug
C13 coupler
Product colour
Black
Rack capacity
0U
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-25 - 65 °C
Total carbon footprint (kg of CO2e)
2245
Type
Three-phase
Weight
8.75 kg
Width
56 mm

Manual

Open Manual

Leaflet

Open Leaflet

Document

Open Document
