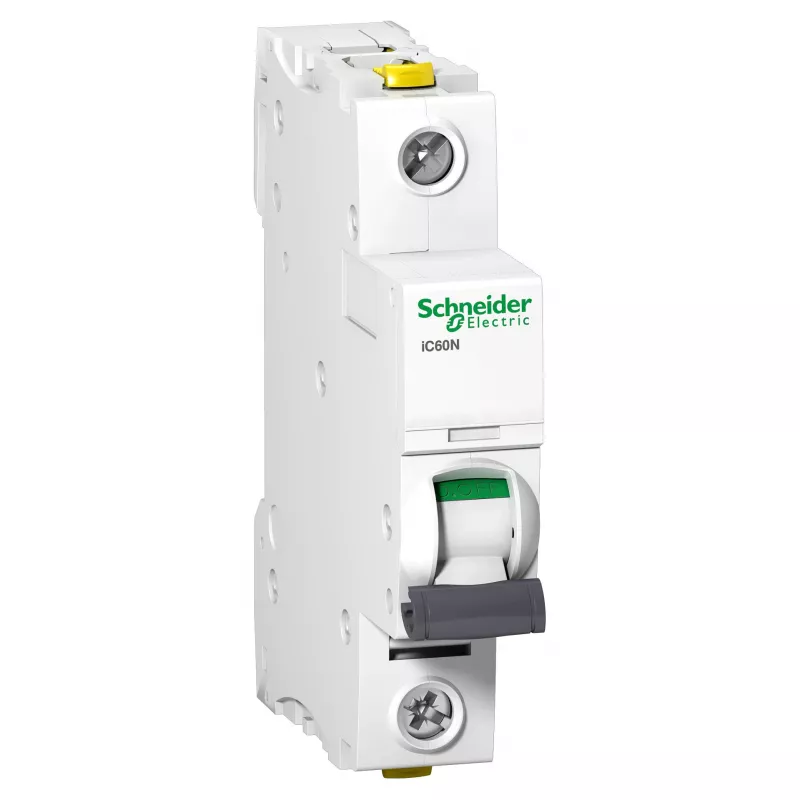

APC A9F03116 Acti9 Miniature Circuit Breaker 1P C-Curve 16A 10kA

The APC A9F03116 is a high-quality miniature circuit breaker (MCB) from the Acti9 range, designed for reliable overcurrent and short-circuit protection in residential and commercial electrical installations. With a 1-pole configuration, C-curve tripping characteristic, and a rated current of 16 A, this MCB ensures safe and efficient operation for lighting and general-purpose circuits.

Advantages

Compact 1-module design saves space on DIN rail; thermal-magnetic trip unit provides both overload and short-circuit protection; high breaking capacity of 10 kA ensures safety under fault conditions; robust construction with IP20 protection and wide operating temperature range.

Suitable for

• Lighting circuits
• General-purpose socket outlets
• Small appliance protection
• Residential and commercial distribution boards

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Range: Acti9
• Poles: 1P
• Rated Current (In): 16 A
• Tripping Curve: C
• Breaking Capacity (Icn): 10 kA at 230/400 V AC
• Rated Voltage (Ue): 230/400 V AC
• Mounting: Clip-on DIN rail
• Module Width: 18 mm (1 module)
• Degree of Protection: IP20
• Standards: IEC 60898-1, EN 60898-1
• Electrical Durability: 10,000 cycles
• Mechanical Durability: 20,000 cycles
• Operating Temperature: -35 to 70 °C
• Terminal Capacity: 1 to 25 mm² rigid, 1 to 16 mm² flexible

Recommendations

For optimal performance, pair with APC Acti9 residual current devices and enclosures. Always consult local electrical codes and regulations before installation.
