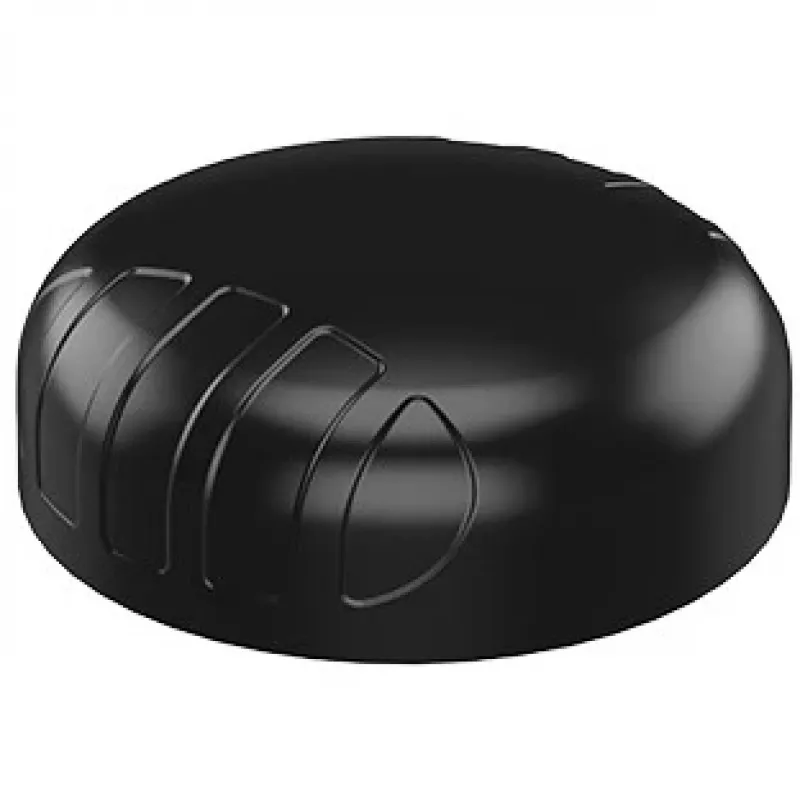

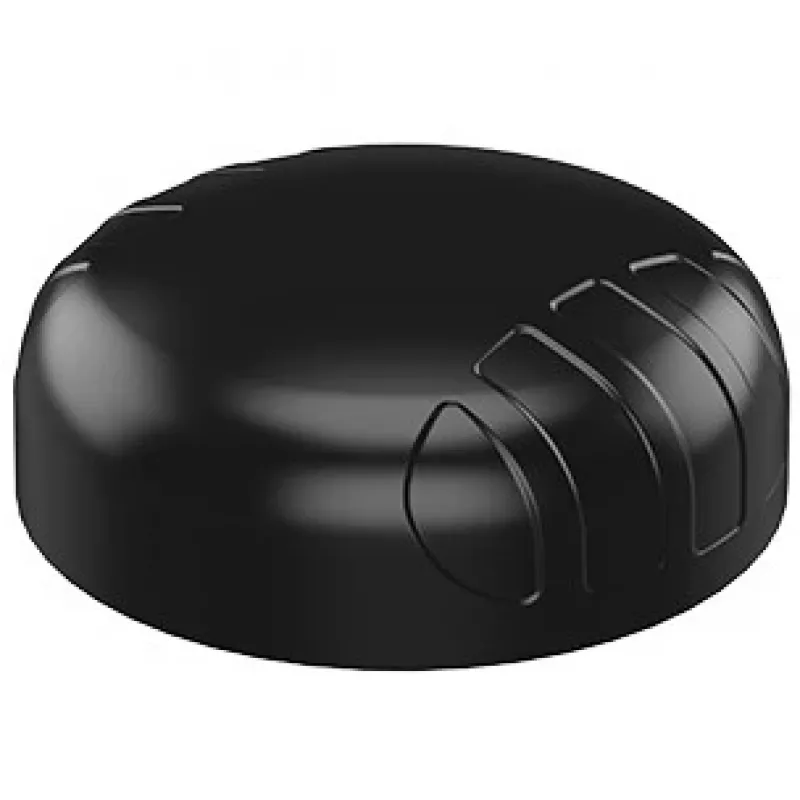

Antenna Poynting A-PUCK-0007-V2-01 black — omnidirectional LTE/4G/3G/2G puck antenna with SMA (M) and RP-SMA adapter

The Poynting A-PUCK-0007-V2-01 black is a compact omnidirectional puck antenna designed for cellular networks including LTE/4G, 3G and 2G. Its low-profile, weather-resistant housing and integrated SMA (male) connector with an RP-SMA adapter make it compatible with a wide range of routers, modems and M2M devices. The antenna is suitable for both indoor and outdoor mounting and is intended to improve mobile broadband reception, signal stability and data throughput in areas with variable cellular coverage.

Advantages

The antenna's omnidirectional pattern provides uniform reception from multiple directions without the need for precise alignment. Its compact puck form factor simplifies installation in constrained spaces and on flat surfaces. Inclusion of an SMA (male) connector plus an RP-SMA adapter increases compatibility with common consumer and industrial networking equipment. The housing is built to resist environmental exposure, making the antenna usable in outdoor applications where weather resistance and reliability are required.

Suitable for

• Improving cellular signal for home or office routers and mobile broadband devices
• M2M and IoT installations requiring stable 4G/LTE connectivity
• Temporary or fixed outdoor installations such as kiosks, digital signage and point-of-sale terminals
• Vehicles or mobile units where a low-profile external antenna is needed

Key specifications

• Frequency coverage: cellular bands for LTE/4G, 3G and 2G
• Radiation pattern: omnidirectional for broad-area reception
• Connector: integrated SMA (male) with supplied RP-SMA adapter for compatibility
• Housing: compact puck-style, weather-resistant for indoor or outdoor use
• Mounting: suitable for surface mounting on flat or slightly curved surfaces

How to use

Choose a mounting location with clear access to the sky and minimal obstructions for optimal cellular reception. Attach the antenna to the device using the integrated SMA (male) connector or fit the supplied RP-SMA adapter if the device requires an RP-SMA interface. Secure the puck antenna to the desired surface using suitable screws or adhesive depending on the mounting surface, ensuring the cable and connector are strain-relieved. After installation, verify signal strength and data throughput on the connected router or modem and adjust the mounting position if necessary to achieve better reception.

Recommendations

For best performance, mount the antenna as high as practical and away from large metal objects or dense building materials. If used outdoors, periodically inspect the housing and connectors for water ingress or physical damage and re-tighten connectors to maintain a reliable RF connection.
