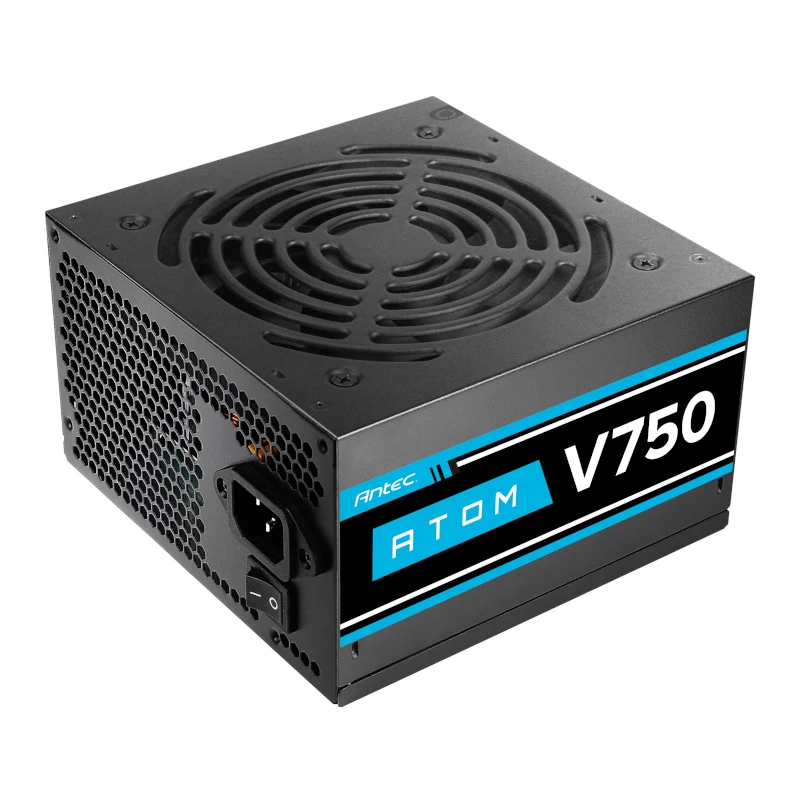

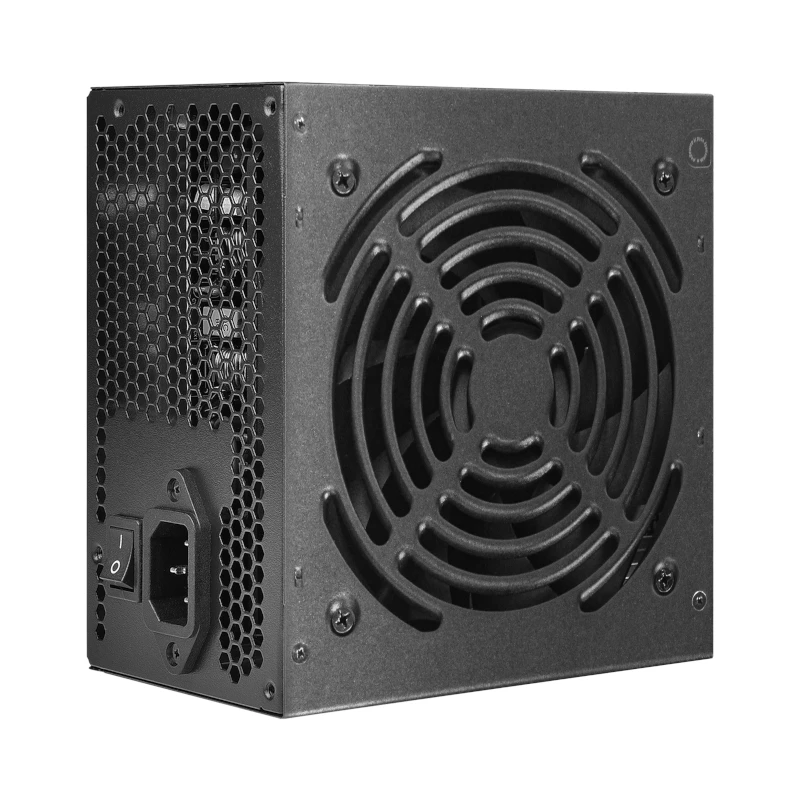

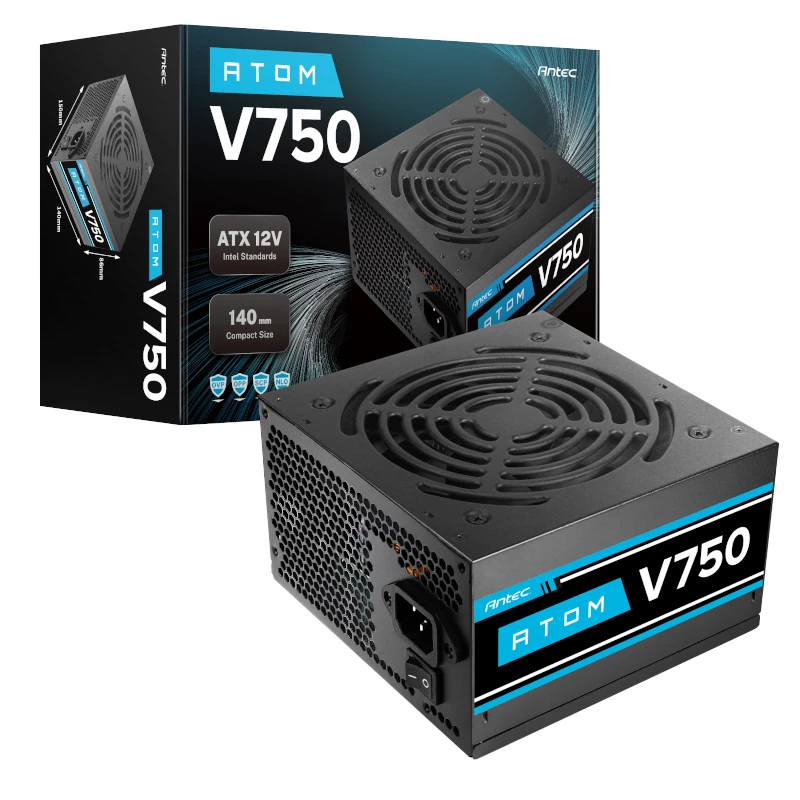

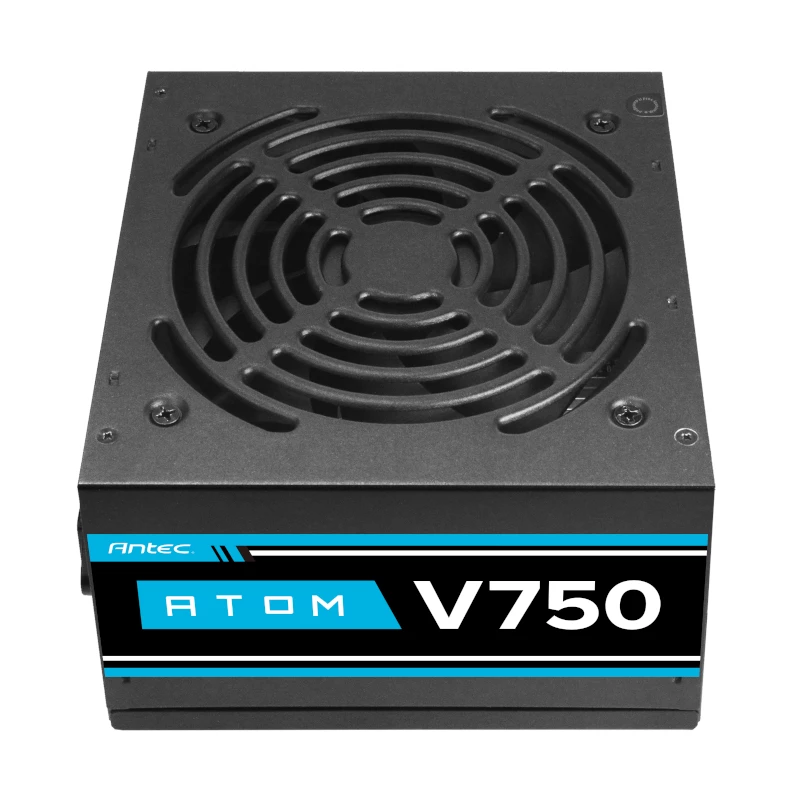

Antec Atom V750 Non-Modular 750W 80 PLUS Bronze ATX Power Supply

The Antec Atom V750 is a non-modular ATX power supply that delivers 750W of continuous output with 80 PLUS Bronze efficiency, ensuring stable and energy-conscious power for demanding system builds. Its single +12V rail with 62A provides robust power to high-end GPUs and multi-core CPUs, while the 120mm fan keeps noise levels low under load.

Advantages

Active PFC and a single +12V rail with 62A provide stable power to high-end GPUs and multi-core CPUs. Four PCIe 6+2 connectors support dual graphics configurations, and seven SATA connectors cover extensive storage arrays. Comprehensive protections—OVP, UVP, SCP, OPP, and NLO—safeguard your components against electrical anomalies. Backed by a 3-year warranty and 100,000-hour MTBF for long-term peace of mind.

Suitable for

• Mid-range to high-end gaming PCs with up to two graphics cards
• Workstations running demanding creative or engineering software
• Home servers and NAS systems with multiple drives
• System integrators needing a reliable, cost-effective PSU

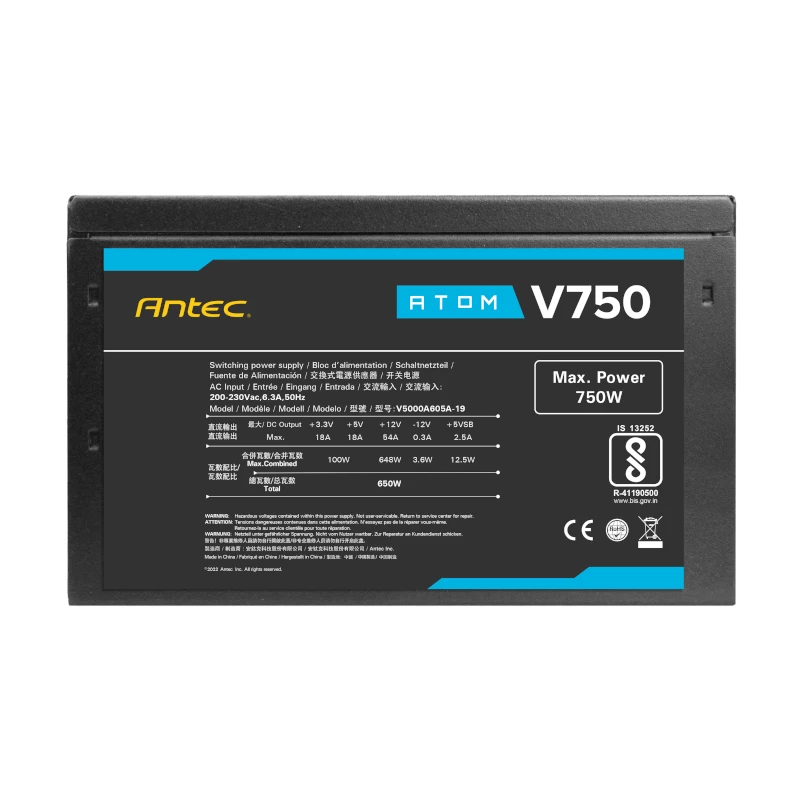

Key specifications

• 750W total power, 80 PLUS Bronze certified
• ATX form factor, non-modular cabling
• 1x 20+4 pin ATX, 1x 4+4 pin EPS/CPU, 4x 6+2 pin PCIe
• 7x SATA, 2x Molex peripheral connectors
• 120mm fan, Active PFC, single +12V rail (62A)
• Input: 100-240V AC, 50-60Hz
• Protections: OVP, UVP, SCP, OPP, NLO
• Certifications: CE, CB, TUV, cTUVus, RCM, EAC, CCC, RoHS, WEEE, ErP Lot 6

Recommendations

Pair with a mid-tower case that has bottom PSU mounting and good cable management space. For systems with high transient loads, ensure adequate case airflow.
