Zalman ZM600-TXII V2 MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E power supply unit 600 W 20+4 pin ATX ATX Black

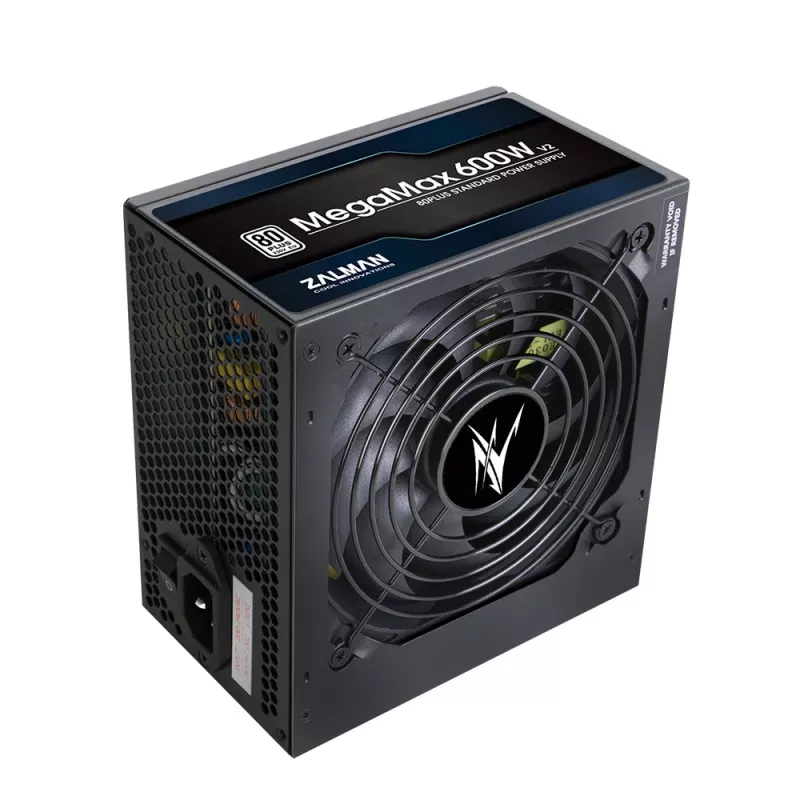

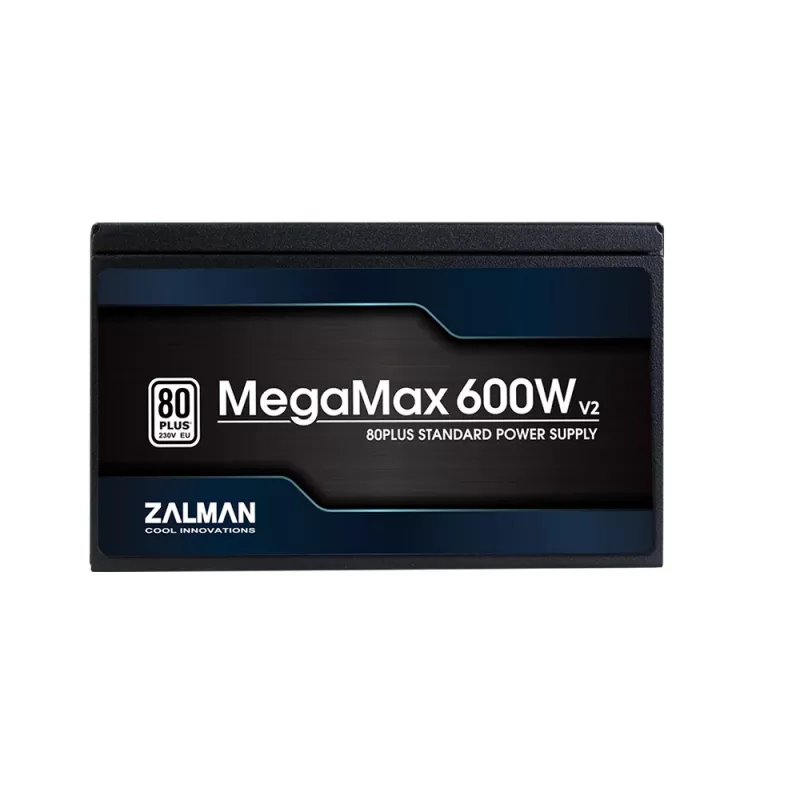

The Zalman MegaMax ZM600-TXII V2 is a 600W ATX power supply designed for desktop PCs. It features 80 PLUS 230V EU Standard certification for up to 86% efficiency at typical load, active PFC with up to 98% power factor, a 120 mm hydro-dynamic bearing (HDB) fan for low noise and effective cooling, and protection circuits including OPP, OVP, UVP and SCP. The unit uses quality components for reliable, stable power delivery and is manufactured to meet RoHS and related environmental standards.

Advantages

The MegaMax provides efficient power conversion certified by 80 PLUS Standard and maintains optimized operating temperatures even at full load. Active PFC improves energy efficiency and reduces electromagnetic interference. The HDB 120 mm fan ensures quiet operation and extended lifespan while keeping internal temperatures low. Built-in protection features and durable components contribute to stable and safe system performance.

Suitable for

• Mainstream desktop PCs and office workstations
• Home and small-form gaming builds that do not require modular cabling

Key specifications

• Model: MegaMax [600W] ZM600-TXII V2
• Total power: 600 W
• 80 PLUS certification: 80 PLUS (230V EU Standard)
• Efficiency: up to 86% @ 220 VAC (typical load)
• Input voltage: 200–240 VAC, 50–60 Hz; Input current: 5 A
• PFC: Active PFC, up to 98% power factor
• Type: Intel ATX 12V Ver 2.31
• Protection: OPP / OVP / UVP / SCP
• Fan: 120 mm HDB, rated speed 2,300 rpm
• Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
• Weight: 1.68 kg
• MTBF: 100,000 hours
• Regulation / approvals: KC, CE, CB, RoHS, EAC
• Cabling: Motherboard 20+4 pin ATX; CPU cables (2); PCIe cables (2); SATA cables (3 conns across 2 cables); Peripheral IDE connectors

How to use

Install the Zalman ZM600-TXII V2 into a compatible ATX case following standard safety procedures: disconnect mains power, ground yourself to prevent static discharge, mount the PSU in the case using the supplied screws, and connect the 20+4 pin ATX cable to the motherboard. Connect CPU power (4+4), PCIe connectors to graphics cards if needed, and SATA/Peripheral cables to drives and peripherals. Ensure input voltage on the mains complies with the rated 200–240 VAC and secure all cables to avoid contact with fans or moving parts before powering on.

Recommendations

Use this power supply in systems within its 600W capacity and avoid continuous operation above rated load. Keep intake and exhaust pathways clear for proper airflow, and periodically clean dust from the 120 mm fan to maintain cooling efficiency and noise performance.
