Angle Grinder Einhell AXXIO 36/230 Q

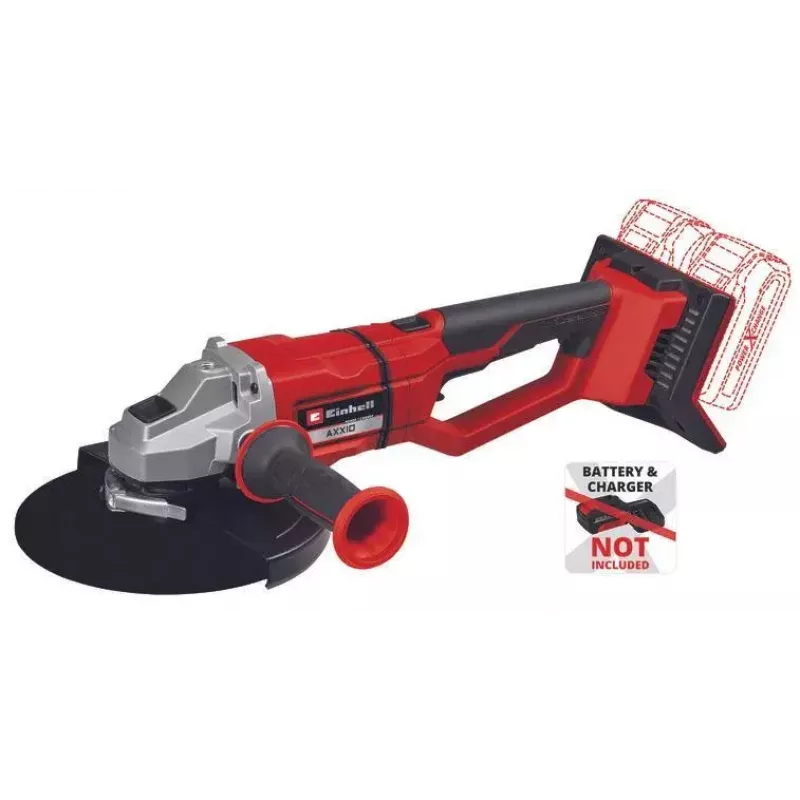

The Einhell cordless angle grinder AXXIO 36/230 Q is a battery-powered grinding and cutting tool designed for work on metal, stone and similar materials. It belongs to the Power X-Change family and requires two 18 V batteries (TWIN-PACK) for operation. The tool features a brushless motor, a 230 mm disc diameter and an extremely large cutting depth of 70 mm, and it is supplied without batteries, charger or cutting discs.

Advantages

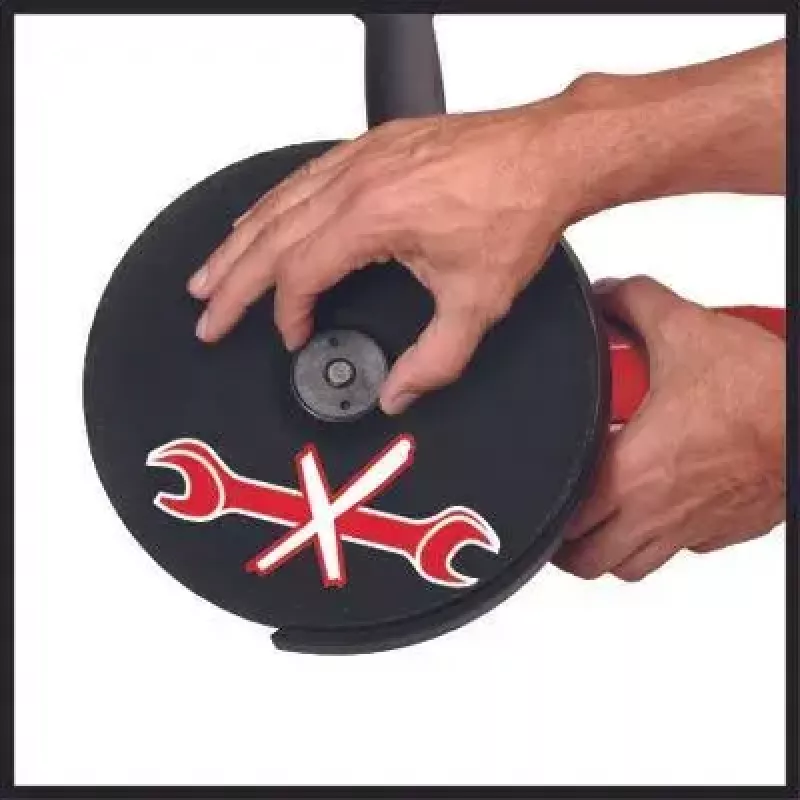

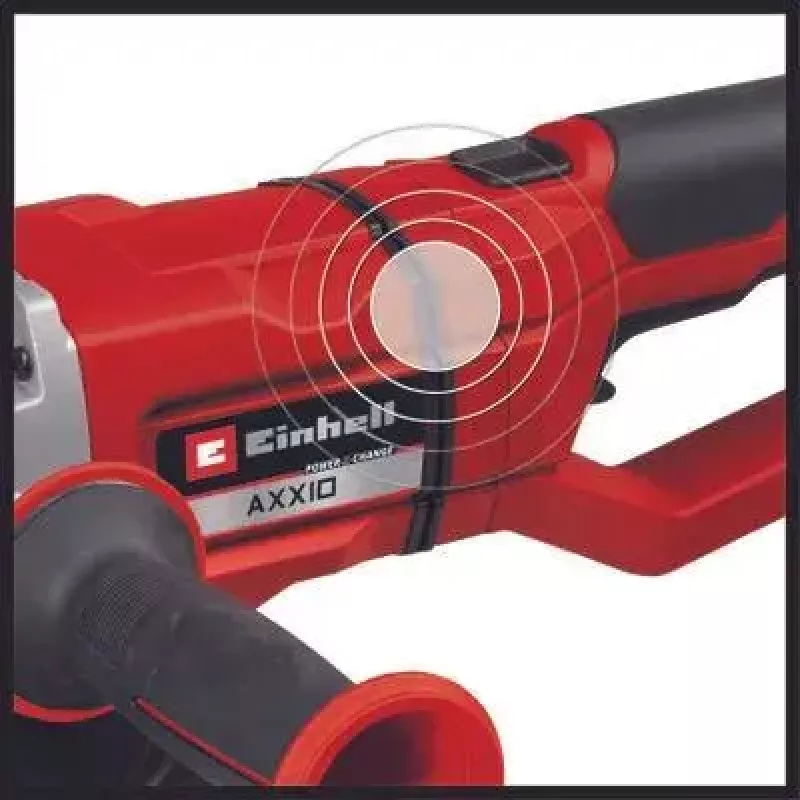

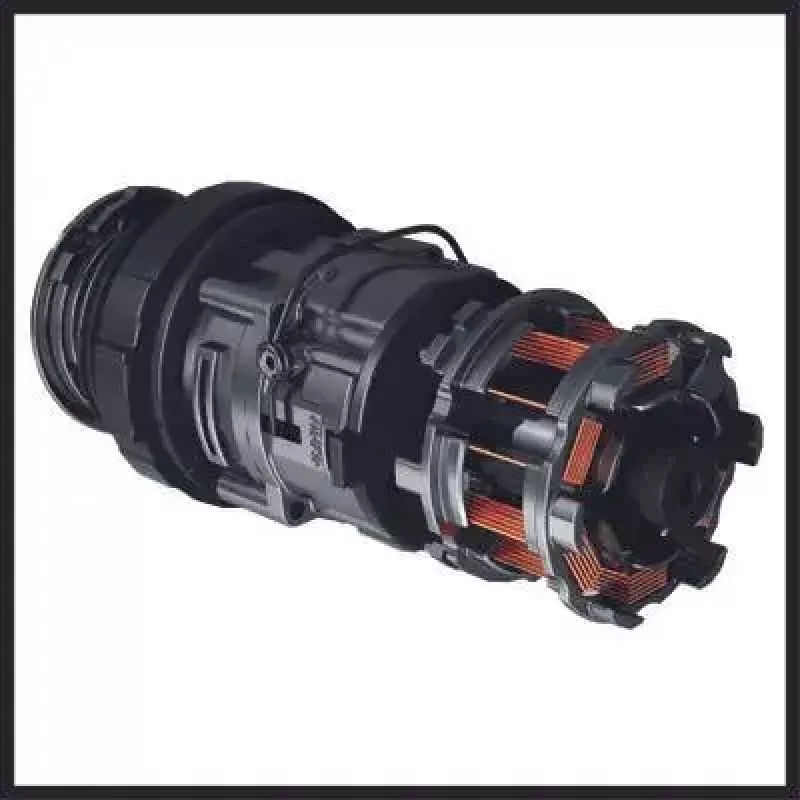

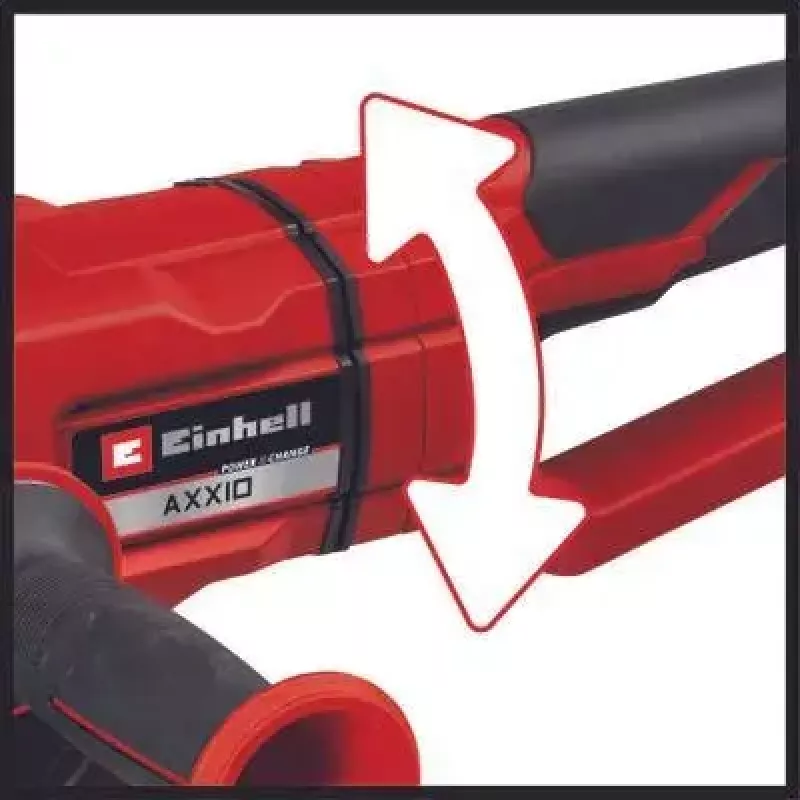

The brushless motor together with the TWIN-PACK technology provides higher power and extended runtime. A quick-release nut enables tool-free disc changes. The rotating main handle and a disc guard with quick adjustment increase working flexibility. Anti-vibration function and ergonomic softgrip support low-vibration, comfortable handling. Robust aluminium gearbox housing and overload protection enhance durability, while softstart and restart protection increase user safety. Battery protection reduces damage from flying sparks and dust.

Suitable for

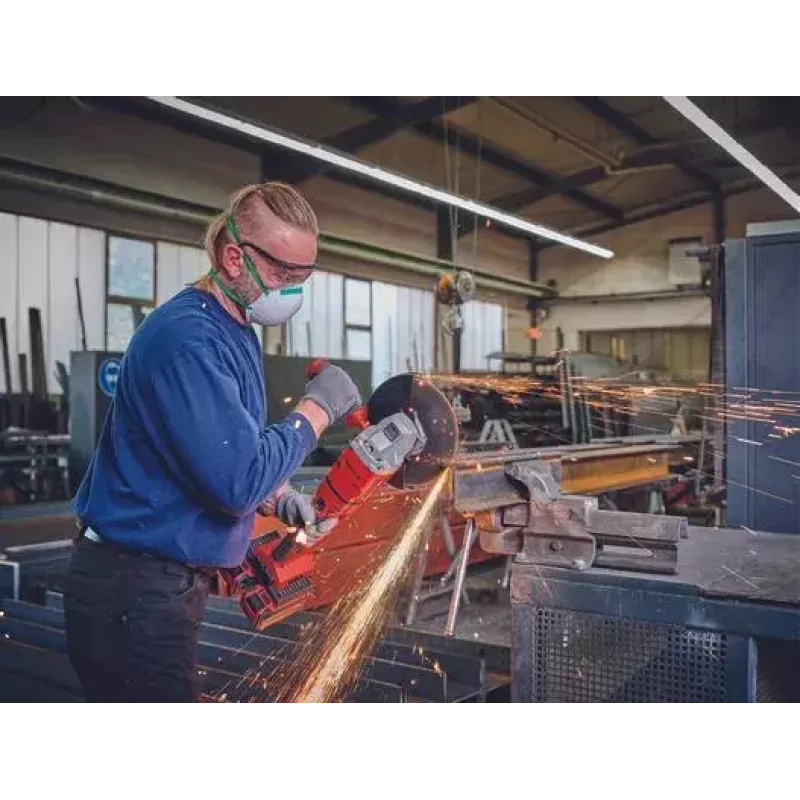

• Cutting metal components and profiles
• Grinding and polishing stone and concrete
• Renovation and construction site tasks requiring mobile power
• Work where a large cutting depth (70 mm) is needed

Key specifications

• Model: Angle Grinder Einhell AXXIO 36/230 Q (MPN 4431160, EAN 4006825658514)
• Disc diameter: 230 mm
• Cutting depth: 70 mm
• No-load speed: up to 6600 rpm
• Power system: Power X-Change, requires 2 × 18 V batteries (TWIN-PACK)
• Recommended battery capacity: 3.0 Ah or higher
• Weight: 4.21 kg
• Colour: Red, Black

How to use

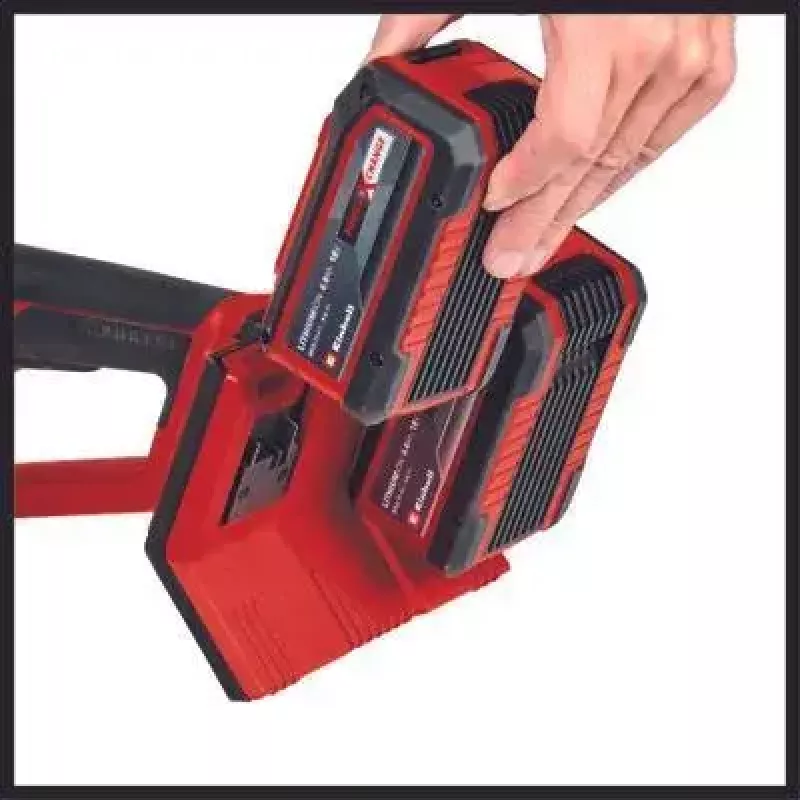

Fit two compatible Power X-Change batteries before use and ensure the quick-release nut and disc guard are correctly mounted. Select a suitable cutting or grinding disc (not included) and secure it using the quick-release nut. Use the rotating main handle and mount the additional handle in one of three positions for a stable two-handed grip. Start the tool and allow the softstart to reach operating speed, then perform cutting or grinding with steady, controlled movements. After work, switch off the tool and remove the batteries before changing discs or performing maintenance.

Recommendations

For optimal performance use two Power X-Change batteries of 3.0 Ah or higher. Always wear appropriate personal protective equipment (eye, ear and respiratory protection, gloves) and use discs rated for 230 mm and compatible with the grinder's maximum speed. Batteries and charger are sold separately; consider a starter kit if you do not already own compatible batteries.
