Analog Telephone Adapter (ATA) Auerswald FTA5102E2 — 2 ports, G.711a/u, G.729A/ab, DC power, black

The Flyingvoice FTA5102E2 VoIP analogue adapter allows two analogue devices (telephone, fax, door station, etc.) to operate on a single VoIP connection. It accepts SIP credentials from an internet telephony provider or registration details for an extension on a VoIP-capable telephone system such as Auerswald COMtrexx. Both analogue ports are configurable independently and the device can be provisioned with a basic configuration for Auerswald COMtrexx systems.

Advantages

The FTA5102E2 supports two independent analogue lines while offering integrated network connectivity via WAN and dual LAN ports. It can operate as a standalone gateway without the need for a PC or an additional telephony system, simplifying deployment. Status LEDs for power and for each network/analogue port provide clear operational feedback.

Key specifications

• Two analogue ports for connecting telephones, fax machines, door intercoms, etc.

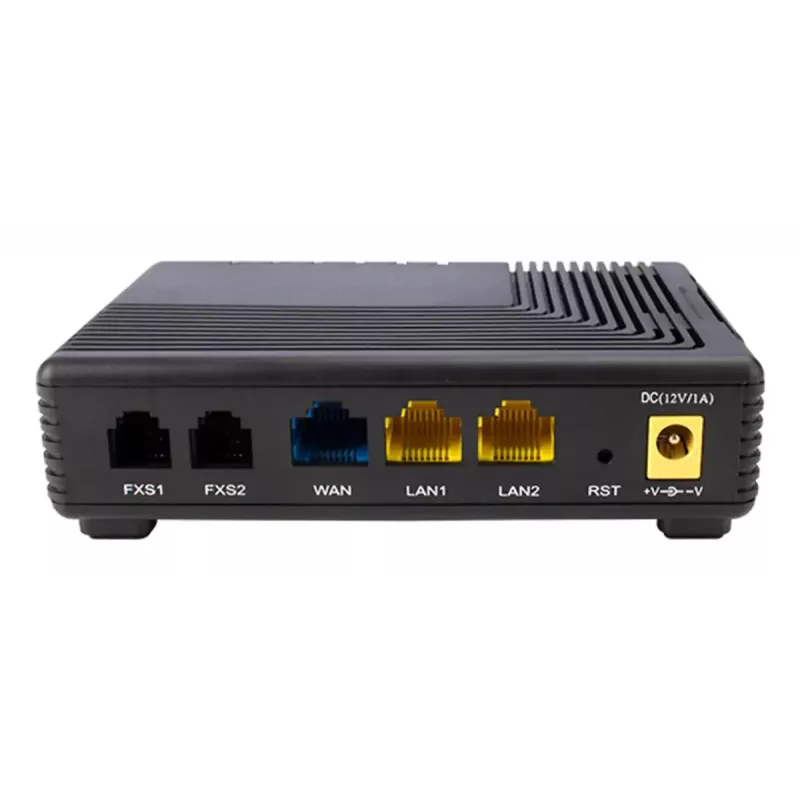

• One WAN port plus two integrated LAN ports
• Operates as an independent gateway without a PC or PBX

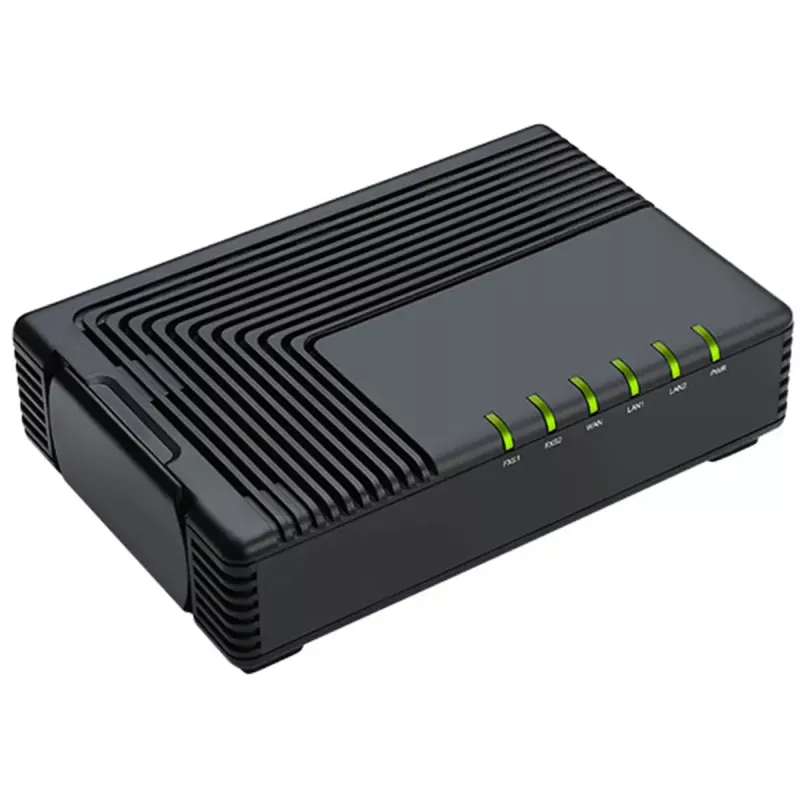

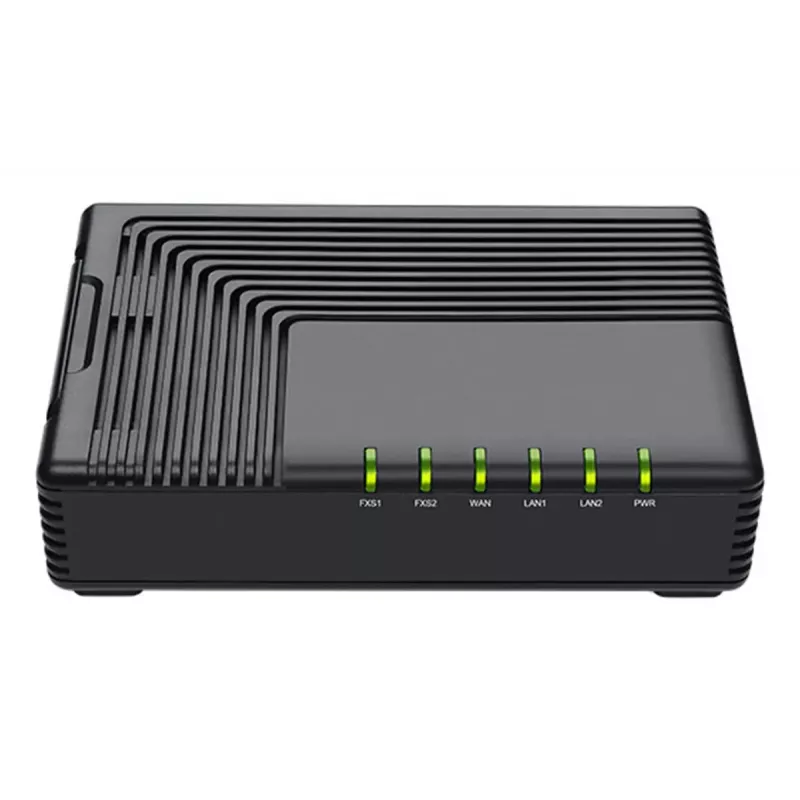

• Power LED plus individual status LEDs for each of the five ports
• Supports SIP registration with internet telephony providers or as an extension on VoIP-capable telephone systems (e.g., Auerswald COMtrexx)

How to use

Connect analogue devices to the two FXS ports and attach the network cable to the WAN port; optionally connect devices to the LAN ports. Enter the SIP access data provided by your VoIP provider or the extension login from your VoIP telephone system into the adapter’s web interface or provisioning server. Configure each analogue port independently as required and verify operation using the status LEDs.

Recommendations

Use the adapter with compatible VoIP systems such as Auerswald COMtrexx for easy provisioning. Ensure you have the correct SIP credentials from your provider and update firmware when available to maintain compatibility and security.
