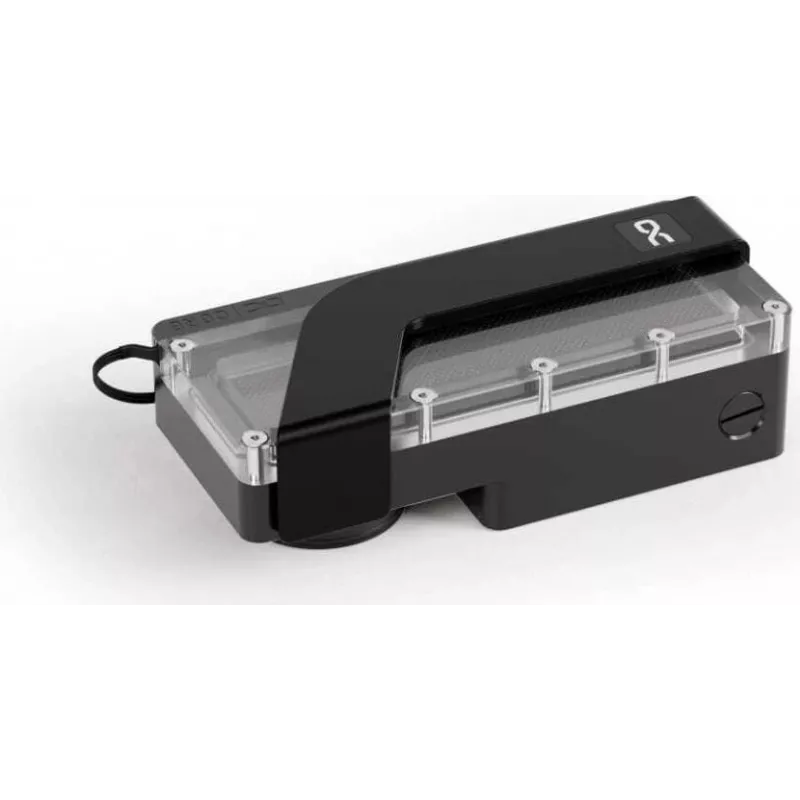

Alphacool Core DDCzero Flat Reservoir 140 with Pump (14568)

Space constraints in compact PC builds often force compromises in water cooling performance. The Alphacool Core DDCzero Flat Reservoir 140 with Pump solves this by combining a low-profile reservoir and a reliable DDCzero pump in a single unit that mounts directly to 140mm fan slots. Its slim 40mm depth fits into tight cases without sacrificing flow or convenience.

Who is it for

This reservoir-pump combo is ideal for small form factor and mid-tower builders who need efficient cooling in limited space. It suits custom loops where a separate pump and reservoir would be impractical, and it works well for both beginners and experienced modders looking for a clean, integrated solution.

Main features

• Integrated Alphacool DDCzero pump with fixed 2500 RPM for quiet, steady operation
• Ultra-flat acrylic reservoir with anti-cyclone plate to prevent air bubbles
• Three G1/4" ports for flexible tubing routing
• Mounts directly to standard 140mm fan holes (125x125mm spacing)
• Transparent reservoir with black pump housing for a sleek look
• Low power consumption of just 2.5W from a 3-pin connector

Specifications

• Product type: Pump/reservoir combo
• Reservoir material: Acrylic (PMMA)
• Pump type: Alphacool DDCzero
• Max head pressure: 0.85 m
• Max flow rate: 100 L/h
• Pump voltage: 12V DC
• Pump speed: 2500 RPM (fixed)
• Power consumption: 2.5 W
• Power connector: 3-pin
• Ports: 3x G1/4"
• Max operating temperature: 60°C
• Reservoir dimensions (LxWxH): 140 x 140 x 25 mm
• Overall dimensions (LxWxH): 140 x 140 x 40 mm
• Colour: Transparent reservoir, black pump housing

Tips

For best results, mount the reservoir with the ports facing upward to ease filling and bleeding. Use soft tubing with angled fittings if clearance is tight. The anti-cyclone plate works best when the pump is running at full speed; avoid reducing voltage below 12V to maintain flow.
