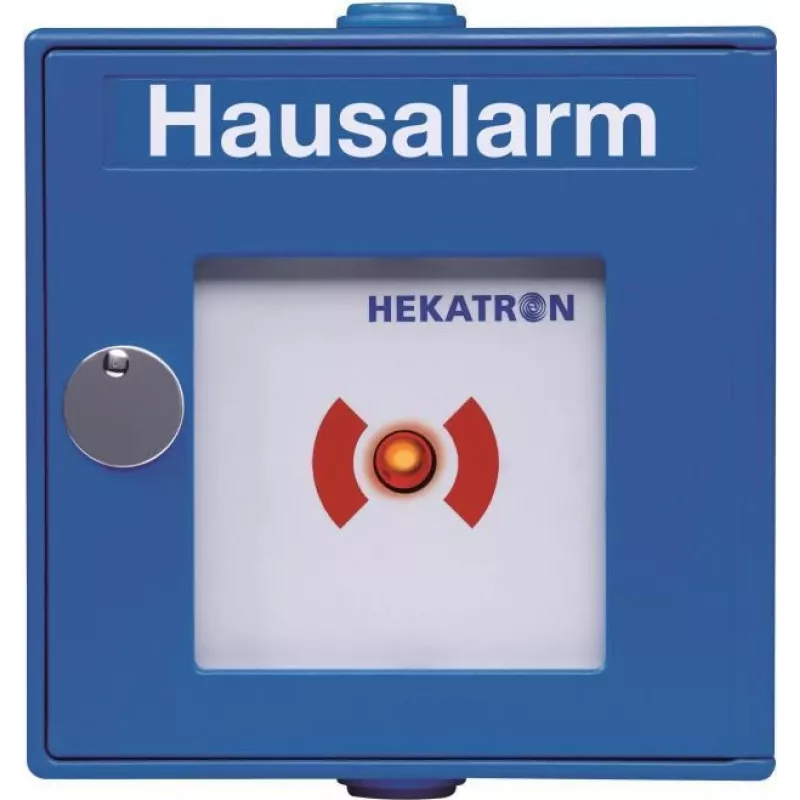

Alarm Trigger Module Hekatron 31-5000013-01-03 Blue White 10-30V 1A

The Hekatron alarm trigger module in blue and white is designed for secure and reliable activation within alarm and fire detection systems. It accepts a wide input voltage range from 10 to 30 V and provides switching capability up to 1 A. With compact rectangular dimensions of 130 mm × 130 mm × 32 mm, the unit is suitable for mounting where space is limited while maintaining clear visual identification by its color scheme.

Advantages

The module offers stable operation across a broad supply voltage range and delivers predictable switching performance at currents up to 1 ampere. Its compact form factor and distinctive blue-white appearance simplify installation and maintenance. The construction supports consistent trigger response for downstream signaling devices and integrates with standard alarm system wiring practices.

Suitable for

• Alarm and intruder detection control panels
• Fire alarm and notification circuits
• Accessory triggering for sirens, strobes, or relay interfaces
• Retrofit projects requiring compact trigger modules

Key specifications

• Operating voltage: 10–30 V DC
• Maximum switching current: 1 A
• External dimensions: 130 mm (W) × 32 mm (D) × 130 mm (H)
• Color: blue and white housing
• Mounting: panel or enclosure mounting compatible with compact modules

How to use

Connect the module to the alarm system following the system manufacturer’s wiring diagram: supply the module with a DC voltage within the 10–30 V range and route the trigger output to the device being controlled. Ensure correct polarity and verify connections are secure before powering the system. After installation, perform a functional test by activating the alarm input to confirm the module switches at the expected current and that connected notification devices respond correctly.

Recommendations

Install the module in a dry, ventilated enclosure away from direct heat sources. Use wiring and protective fuses appropriate for the 1 A switching current and the supply voltage range to ensure safe operation. Follow local electrical codes and the alarm system manufacturer’s integration guidelines when incorporating this trigger module into an existing system.
