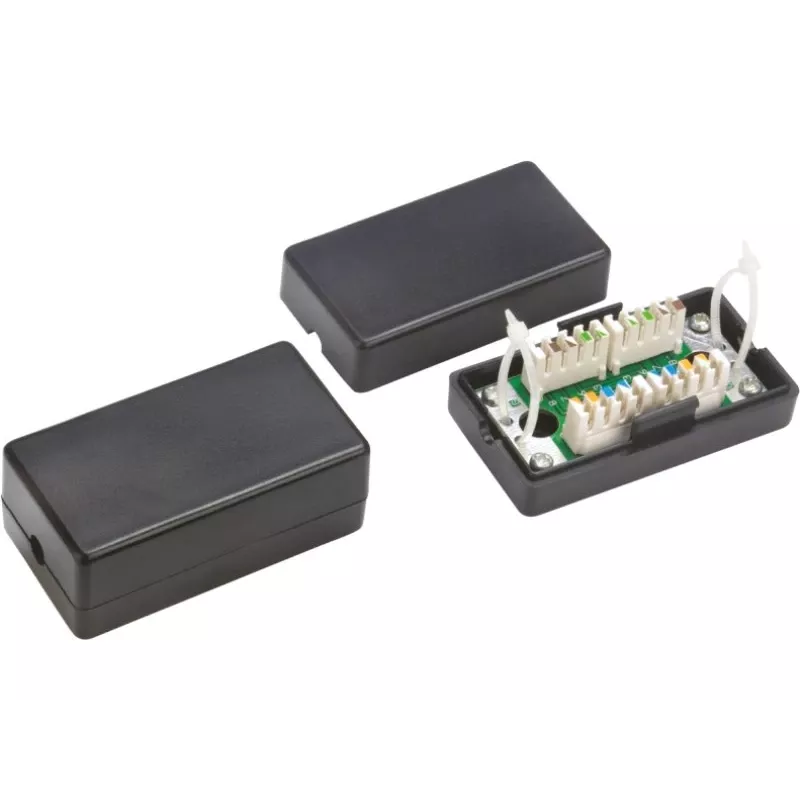

Network junction box A-LAN WTM06 for Cat5e cables, AWG 22–26, black

The Alantec WTM06 Cat5e network junction box is designed to extend unshielded installation cables and to reconnect damaged cable runs. It complies with the Cat5e standard and uses LSA IDC termination to provide reliable connections for four- or eight-core installation cables in AWG 26–22. The unit is finished in black for a discrete appearance and is suitable for home and small-office networking.

Advantages

The junction box uses LSA IDC termination, allowing quick and tool-assisted connection of conductors without soldering. It is compatible with commonly available four- and eight-core unshielded installation cables in the AWG 26–22 range, providing straightforward extension or repair of network runs while maintaining Cat5e performance characteristics.

Suitable for

• Extending unshielded Cat5e installation cables
• Reconnecting or repairing damaged network cable runs
• Home and small office Ethernet wiring

Key specifications

• Standard: Cat5e
• Termination: LSA IDC
• Compatible cable cores: 4 or 8
• Compatible cable size: AWG 26–22
• Colour: Black
• Brand / MPN: A-LAN / WTM06
• EAN: 5901738552272

How to use

Open the junction box, insert the stripped cable ends into the appropriate LSA IDC slots and press the IDC connector to terminate each conductor. Ensure that the cable cores are aligned with the correct contacts for the intended wiring scheme. Close the housing to secure the connection and mount the box as required within the cable run.

Recommendations

Use with unshielded twisted-pair installation cables only (UTP) and verify cable continuity and pair wiring after termination. Do not use with shielded cables or cables outside the AWG 26–22 range.
