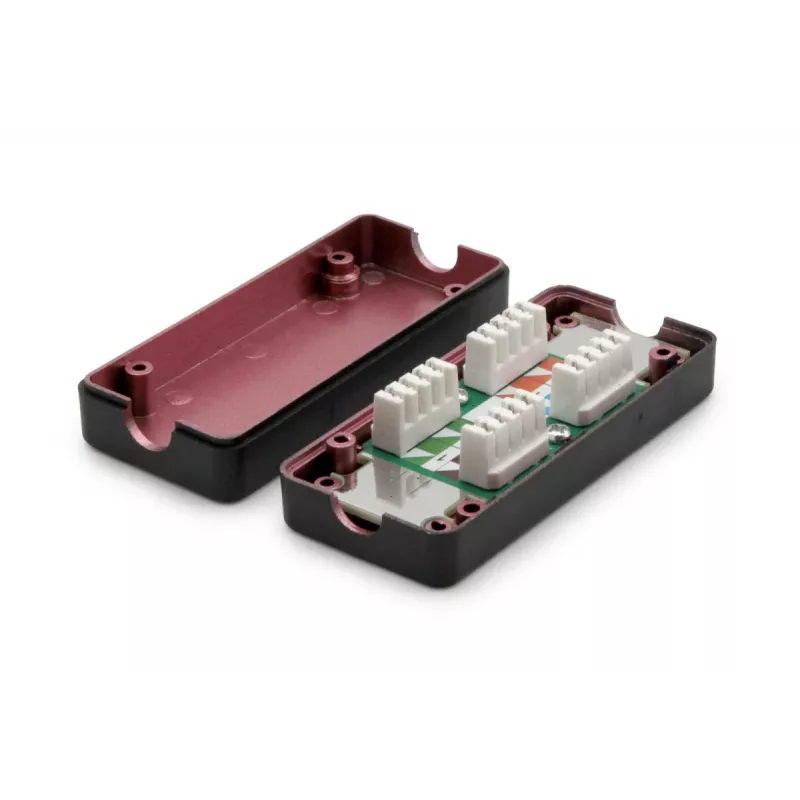

DIGITUS Junction Box CAT 7, 600 MHz LSA strIPS for AWG 22-26, fully shielded compact design, 26x35x80 mm

DIGITUS Junction Box CAT 7, 600 MHz LSA strIPS for AWG 22-26, fully shielded compact design, 26x35x80 mm
DIGITUS Junction Box CAT 7, 600 MHz LSA strIPS for AWG 22-26, fully shielded compact design, 26x35x80 mm
DIGITUS Junction Box CAT 7, 600 MHz LSA strIPS for AWG 22-26, fully shielded compact design, 26x35x80 mm
DIGITUS Junction Box CAT 7, 600 MHz LSA strIPS for AWG 22-26, fully shielded compact design, 26x35x80 mm
DIGITUS Junction Box CAT 7, 600 MHz LSA strIPS for AWG 22-26, fully shielded compact design, 26x35x80 mm
DIGITUS Junction Box CAT 7, 600 MHz LSA strIPS for AWG 22-26, fully shielded compact design, 26x35x80 mm
R202
Future-oriented standards and high-end quality for your networkThe DIGITUS® CAT 7 connection module is used for optimum connection of shielded data cables. Use the connection module to extend the cabling or to replace damaged cables by reconnecting them without having to reinstall the entire cabling... Read More
Stock 25 Code 130413 Brand DIGITUS Model DN-93907-1 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network

The DIGITUS® CAT 7 connection module is used for optimum connection of shielded data cables. Use the connection module to extend the cabling or to replace damaged cables by reconnecting them without having to reinstall the entire cabling section. For quick and easy installation, the cable connector uses tried-and-tested LSA technology with 45° angled contacts.

Key Highlights
  • Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • General properties:
  • Suitable for installation in trunking, flush-mounted & surface-mounted
  • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
  • Suitable for connecting installation cables - extending cables, replacing defective cable sections
  • Integrated strain relief for installation cables
  • Suitable for cable AWG 22-26 average
  • Technical features:
  • Housing material: ABS UL-94V-0
  • RJ45 socket material: ABS UL 94V-0
  • Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
  • RJ-45 shielding: Nickel-plated bronze
  • LSA cutting clamp: Krone LSA+, UL 94V-0, galvanized phosphor bronze
  • Printed circuit board: FR4, UL 94V-0
  • Physical properties:
  • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Core receptacle: 22-26 AWG solid and stranded conductors
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Specifications
AWG wire size (max)
26
AWG wire size (min)
22
Country of origin
China
Depth
80 mm
Height
26 mm
Housing material
Metal
Product colour
Black
Weight
40 g
Width
35 mm

Leaflet

Open Leaflet
