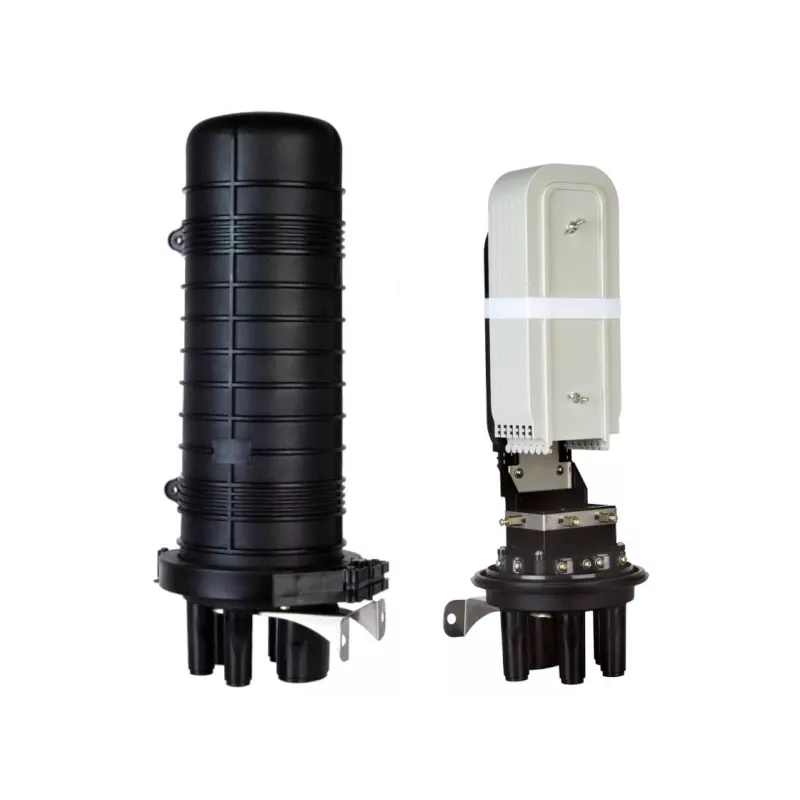

ALANTEC FOM-144K Vertical Fiber Optic Splice Closure, 144 Splices, Complete Set with Splice Trays, Splice Protectors, Heat Shrink Sleeves, Mounting Elements

The ALANTEC FOM-144K is a complete vertical fiber optic splice closure designed for reliable protection and organization of up to 144 fiber splices. This fully equipped set includes all necessary accessories for immediate installation, making it an ideal solution for FTTH, FTTB, and other fiber optic network deployments. The closure features a robust high-strength engineering plastic housing with IP68 protection, ensuring long-term performance in aerial, duct, buried, or wall-mounted environments.

Advantages

This splice closure offers exceptional durability and ease of use. The vertical dome design provides ample space for splicing and storage, while the included 12 splice trays (each holding 12 fibers) allow for efficient fiber management. The heat shrink cable entry and mechanical gasket dome closure guarantee a watertight seal. With UV and corrosion resistance, the FOM-144K is built to withstand harsh outdoor conditions.

Suitable for

• Fiber optic network installations (FTTH, FTTB, FTTx)
• Telecommunications infrastructure
• CATV networks
• Local area networks (LAN)
• Data centers

Key specifications

• Product Type: Fiber Optic Splice Closure
• Design: Vertical (Dome Type)
• Max. Splice Capacity: 144 Fibers
• Number of Splice Trays Included: 12
• Splice Tray Capacity: 12 Fibers per tray
• Material: High-strength Engineering Plastic (PC/ABS Blend)
• Sealing Method: Heat Shrinkable (cable entry), Mechanical Gasket (dome closure)
• Ingress Protection (IP) Rating: IP68
• Cable Entry Ports: 1 Oval Port, 4 Round Ports
• Main Cable Diameter Compatibility: 10mm - 25mm
• Branch Cable Diameter Compatibility: 5mm - 18mm
• Operating Temperature: -40°C to +65°C
• Dielectric Strength: 15kV DC, 1 min, no breakdown
• Insulation Resistance: >2 x 10^4 MΩ
• Application Environment: Aerial, Duct, Buried, Wall-mounted
• Included Accessories: Splice trays, splice protectors, heat shrink sleeves, mounting bracket, sealing tape, buffer tubes, cable ties, grounding wire
• UV Resistance: Yes
• Corrosion Resistance: Yes

Recommendations

For optimal performance, ensure proper cable preparation and follow the manufacturer's installation guidelines. The closure is designed for use with fusion or mechanical splices. Always verify compatibility with your cable diameters before installation.
