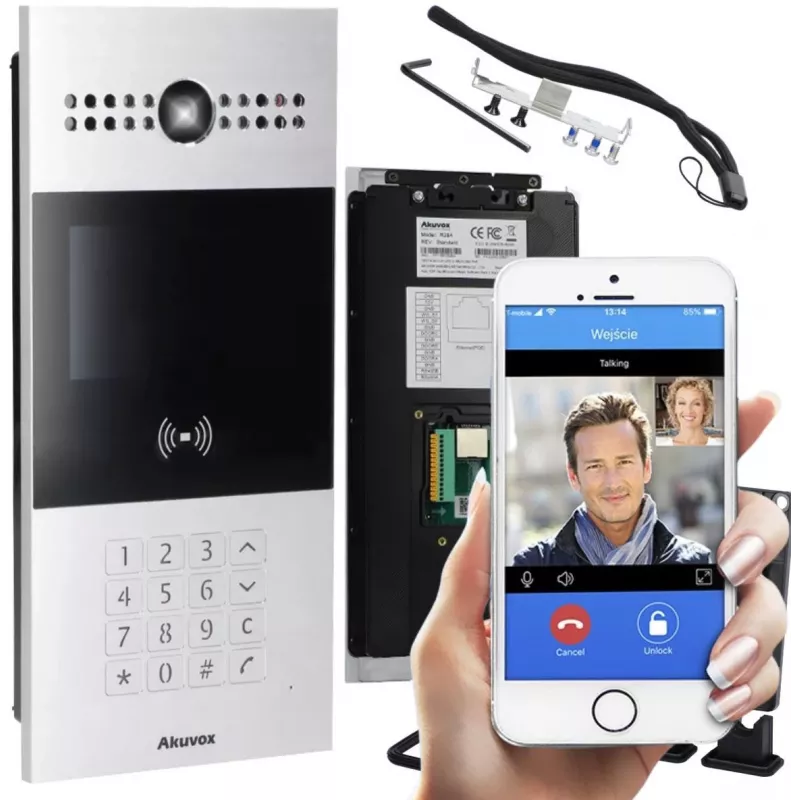

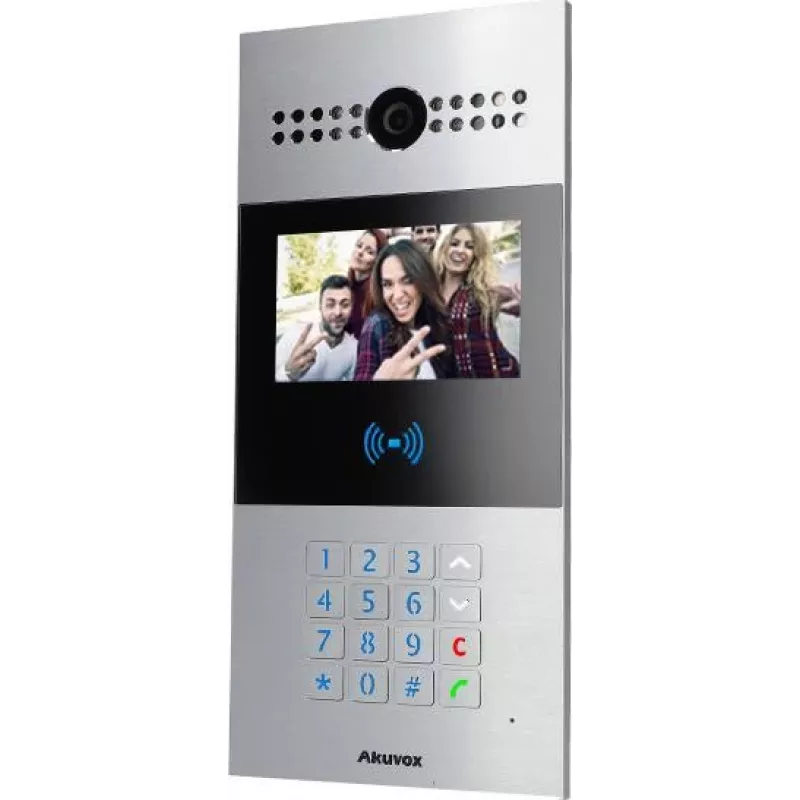

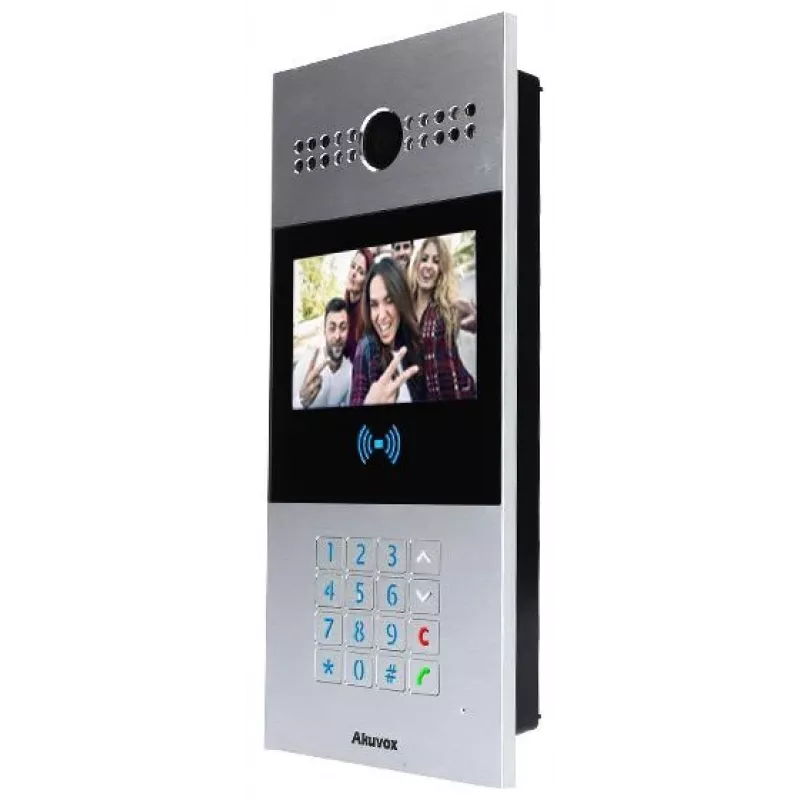

AKUVOX AKV-R28A IP Door Panel with 7-inch Touch Screen, Facial Recognition, and PoE

The AKUVOX AKV-R28A is a premium IP door panel designed for modern access control systems. Featuring a 7-inch IPS LCD capacitive touch screen, 2MP camera with WDR, and multiple access methods including facial recognition, PIN code, RFID/NFC, QR code, Bluetooth, and mobile app, this panel offers secure and convenient entry management. With IP65 weather resistance and IK06 vandal resistance, it is suitable for both indoor and outdoor installations.

Advantages

High-security facial recognition with 20,000 face capacity, full-duplex audio with echo cancellation, and flexible connectivity via Gigabit Ethernet, Wi-Fi, and Bluetooth 5.0. Power over Ethernet (PoE) simplifies installation.

Suitable for

• Office buildings
• Residential complexes
• Industrial facilities
• Educational institutions

Key specifications

• Display: 7-inch IPS LCD capacitive touch screen, 1024x600 resolution
• Camera: 2MP CMOS with WDR and IR night vision
• Access methods: Facial recognition, PIN, RFID/NFC, QR code, Bluetooth, mobile app
• Face capacity: 20,000 faces
• RFID: 13.56MHz (Mifare) & 125KHz (EM)
• Connectivity: Gigabit Ethernet, Wi-Fi 2.4/5GHz, Bluetooth 5.0
• Power: 12V DC 2A or PoE IEEE802.3af
• Audio: Full-duplex, echo cancellation, noise reduction
• Video codec: H.264, H.265
• SIP: SIP 2.0
• Protection: IP65, IK06
• Relays: 2 internal relays for door/gate control
• Wiegand: Input/Output
• Installation: Flush-mounted (surface-mount optional)
• OS: Android 9.0

Recommendations

For optimal performance, use a PoE switch or 12V DC power supply. Ensure network connectivity for remote management and firmware updates.
