AKG WMS470 Sports Set BD8-50MW - Wireless Microphone System

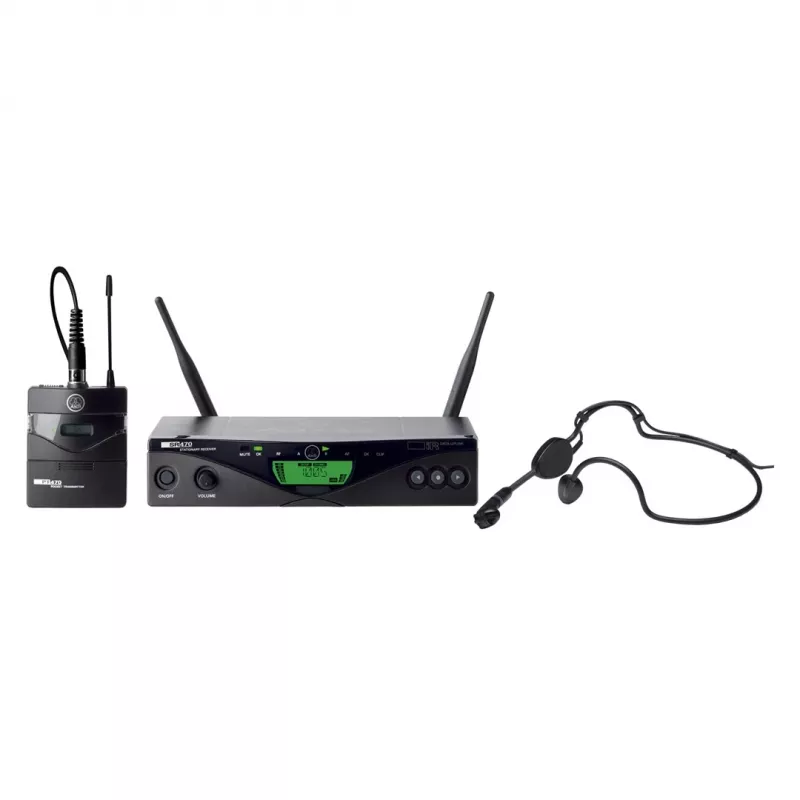

The AKG WMS470 Sports Set BD8-50MW is a professional analog wireless microphone system designed for sports and active use. This complete set includes the SR470 receiver, PT470 bodypack transmitter, and C544 L headset microphone, providing reliable and high-quality audio for fitness instructors, coaches, and performers.

Advantages

With up to 1200 switchable frequencies and 16 simultaneous channels per band, the WMS470 offers exceptional flexibility and interference-free operation in crowded RF environments. The 50 mW transmitter output ensures a robust signal with an operating range of up to 100 meters. The system features a backlit LCD display on the receiver for easy monitoring, and the bodypack transmitter accepts a standard AA battery for up to 14 hours of operation with lithium cells.

Suitable for

• Fitness instructors and group exercise classes
• Sports coaching and events
• Presentations and public speaking
• Live performances and theater

Key specifications

• System Type: Professional Analog Wireless Microphone System
• Components: SR470 Receiver, PT470 Bodypack Transmitter, C544 L Headset Microphone
• Frequency Band: BD8 (500.100 - 530.500 MHz)
• Switchable Frequencies: Up to 1200
• Simultaneous Channels: Up to 16 per frequency band
• Transmitter Output Power: 50 mW
• Modulation: FM
• Frequency Response: 35 Hz - 20 kHz
• Signal-to-Noise Ratio: >120 dB(A)
• Total Harmonic Distortion: <0.3%
• Receiver Outputs: 1x Balanced XLR, 1x Unbalanced 1/4" Jack
• Transmitter Battery: 1x AA (Alkaline, NiMH, Lithium)
• Battery Life: Up to 14 hours (with lithium)
• Headset Microphone: Condenser, Cardioid, Mini XLR connector
• Operating Range: Up to 100 m (line of sight)
• Rack Mountable: Yes (1/2 19" rack unit)
• Antenna: Detachable BNC

Recommendations

For optimal performance, use high-quality lithium AA batteries and ensure the receiver antennas are properly positioned. The system is rack-mountable for permanent installations.
