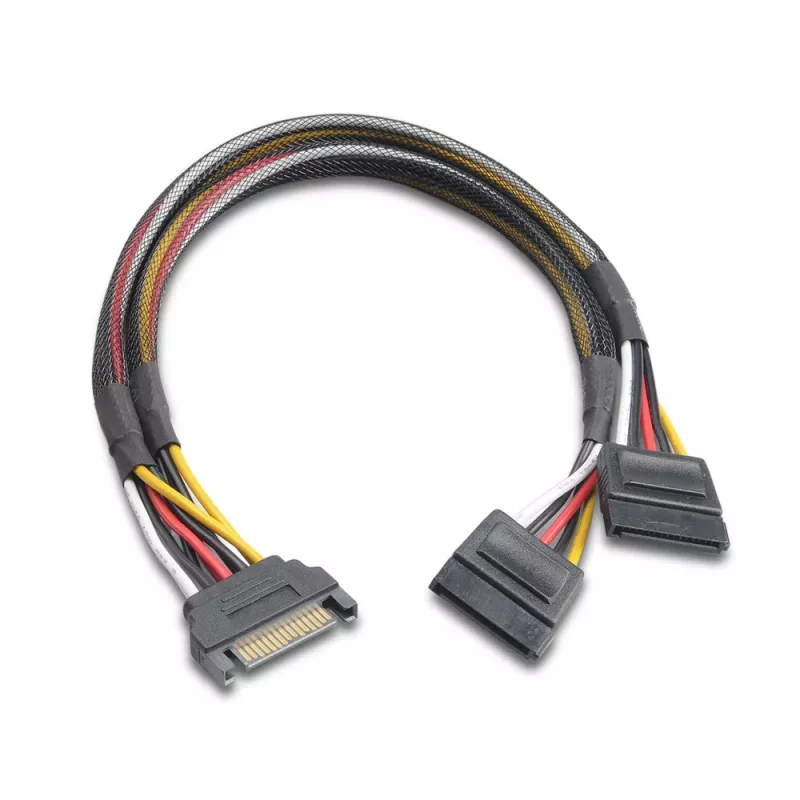

Akasa AK-CBPW05-30 SATA Power Splitter Cable 30 cm Black

The Akasa AK-CBPW05-30 is a high-quality SATA power splitter cable designed to expand your internal PC power distribution. It converts one SATA 15-pin male connector into two SATA 15-pin female connectors, allowing you to power multiple SATA devices from a single power source. Ideal for upgrading or building systems with limited SATA power connectors.

Advantages

This cable simplifies cable management by reducing the number of power cables needed. It supports both 5V and 12V rails, ensuring compatibility with a wide range of SATA devices. The 30 cm length provides flexibility in routing within the case. Nickel-plated connectors ensure reliable conductivity and corrosion resistance.

Suitable for

• Adding extra SATA hard drives or SSDs
• Powering optical drives
• Internal PC power distribution in desktop computers
• DIY PC builds and upgrades

Key specifications

• Cable Type: Power Splitter Cable
• Input Connector: 1 x SATA 15-pin Male
• Output Connectors: 2 x SATA 15-pin Female
• Cable Length: 30 cm (11.8 inches)
• Colour: Black
• Conductor Material: Copper
• Insulation Material: PVC
• Connector Plating: Nickel
• Voltage Support: 5V, 12V
• Data Transfer: No (Power Only)
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure your power supply can handle the additional load. This cable is a simple and effective solution for expanding SATA power connections without replacing your PSU.
