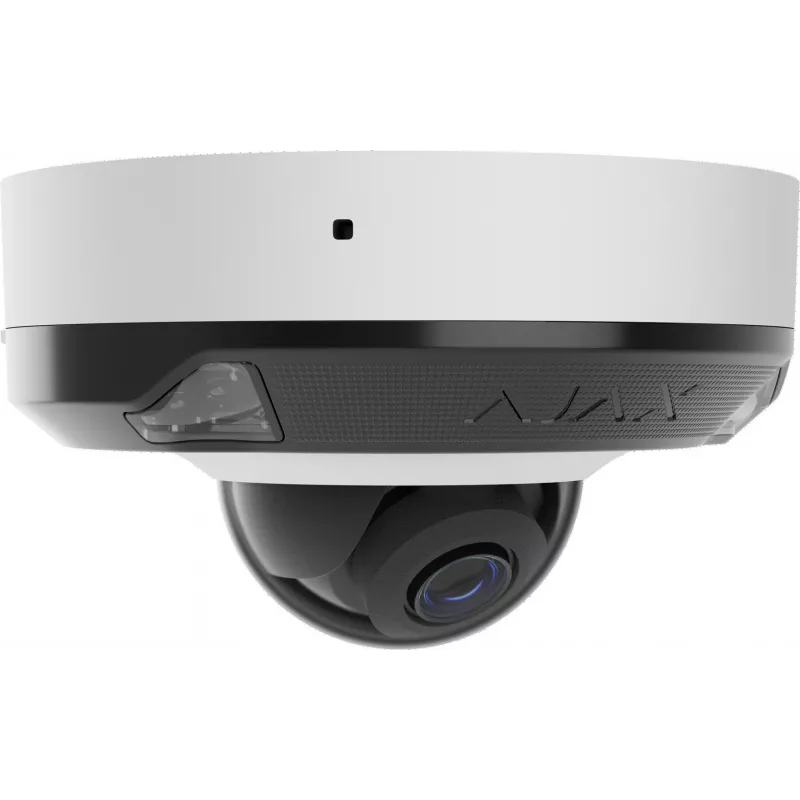

Ajax DomeCam Mini 5MP IP Dome Camera, 2.8mm Lens, White

Monitoring a small business, office, or home often means choosing between bulky cameras that draw attention and compact models that compromise on image quality. The Ajax DomeCam Mini solves this by packing a 5-megapixel sensor into a discreet dome housing, delivering sharp 2560 × 1920 video while blending into any ceiling. With integrated IR night vision up to 15 meters and smart analytics, it provides round-the-clock clarity without complexity.

Who is it for

This camera is ideal for retail shops, offices, and residential users who need professional-grade surveillance in a compact, vandal-resistant form. It suits anyone already using the Ajax security system, as it integrates seamlessly for unified monitoring and alerts.

Main features

• 5 MP progressive scan CMOS sensor for detailed images
• Fixed 2.8 mm lens with 97° horizontal field of view
• IR night vision up to 15 m for low-light coverage
• Built-in microphone for audio capture
• Smart motion detection with human/vehicle recognition
• Cross-line detection and tampering alarm
• IP66 weatherproof and IK08 vandal-resistant housing
• PoE or 12V DC power options
• MicroSD slot for local storage up to 256 GB
• H.264/H.265 compression for efficient bandwidth use

Specifications

• Image sensor: 1/2.7" progressive scan CMOS
• Max resolution: 2560 × 1920 (5 MP)
• Frame rate: up to 30 fps
• Lens: 2.8 mm fixed, FOV 97° horizontal / 73° vertical
• Night vision: IR LED, up to 15 m
• Video compression: H.264, H.265
• Audio: built-in microphone
• Connectivity: Ethernet RJ45 10/100 Mbps
• Power: PoE (802.3af/at) or 12V DC
• Local storage: microSD up to 256 GB
• Ingress protection: IP66
• Vandal resistance: IK08
• Operating temperature: -10°C to +50°C
• Colour: White

Tips

For optimal performance, pair the DomeCam Mini with an Ajax NVR or hub to unlock full event management and remote access. Position the camera at a height of 2.5–3 meters and angle it slightly downward to maximize the field of view while reducing blind spots. Use a PoE switch to simplify installation and avoid separate power cabling.
