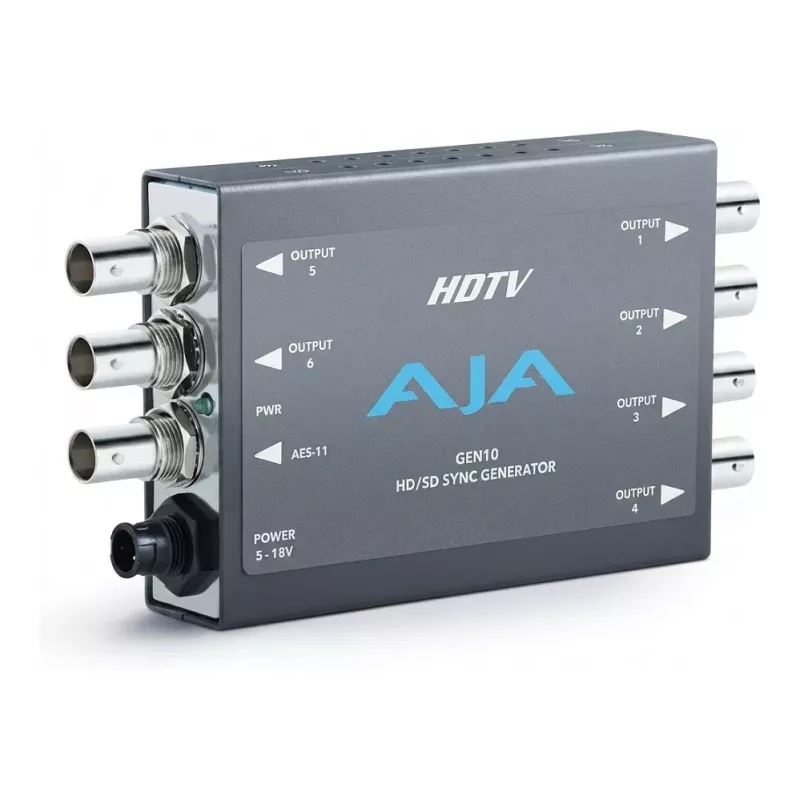

AJA GEN10 HD/SD Sync Generator with Genlock, 4 BNC Outputs, Black Burst & Tri-Level Sync, 5V DC, 3W, Desktop/Rackmount

In professional broadcast and post-production environments, unstable or drifting synchronization can cause glitches, frame drops, and costly downtime. The AJA GEN10 HD/SD Sync Generator eliminates these issues by providing a rock-solid, crystal-controlled reference signal for all your video equipment. With four independent BNC outputs, it distributes Black Burst or Tri-Level Sync to multiple devices simultaneously, ensuring perfect timing across your facility.

Who is it for

Broadcast studios, post-production houses, live event production teams, and educational institutions that require reliable, accurate sync signals. Its compact size and low power consumption make it equally suited for permanent rack installations or portable field use.

Main features

• Four independent BNC outputs for Black Burst (SD) or Tri-Level Sync (HD)
• Supports all common SD and HD sync standards, including NTSC, PAL, 720p, 1080i, and 1080p
• Genlock input with phase adjustment for locking to an external reference
• Crystal-controlled frequency stability ensures drift-free operation
• DIP switch configuration for quick, tool-free setup
• Ultra-low 3W power consumption via included 5V DC universal power supply
• Compact desktop form factor; rack-mountable with optional kit
• Backed by AJA's 5-year warranty

Specifications

• Signal Type: HD/SD Sync Generator
• Reference Outputs: 4x BNC, 75 Ohm
• Output Formats: Black Burst (NTSC, PAL), Tri-Level Sync (720p, 1080i, 1080p at various frame rates)
• Genlock Input: 1x BNC, accepts SD Black Burst or HD Tri-Level Sync
• Control Interface: DIP switches
• Power Input: 5V DC (DWP-U-R1 universal power supply included)
• Power Consumption: 3W
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Dimensions: Compact desktop (rack-mountable with optional kit)
• Included Accessories: DWP-U-R1 Universal Power Supply

Tips

For larger installations, use the GEN10 as a master sync source and distribute its signal to multiple devices directly or via a distribution amplifier. When integrating with existing systems, connect an external reference to the genlock input and adjust phase as needed. The DIP switches allow you to quickly change output formats without a computer, making it ideal for on-the-fly adjustments in live environments.
