Air cooler Akasa Turing FX 12 cm Black

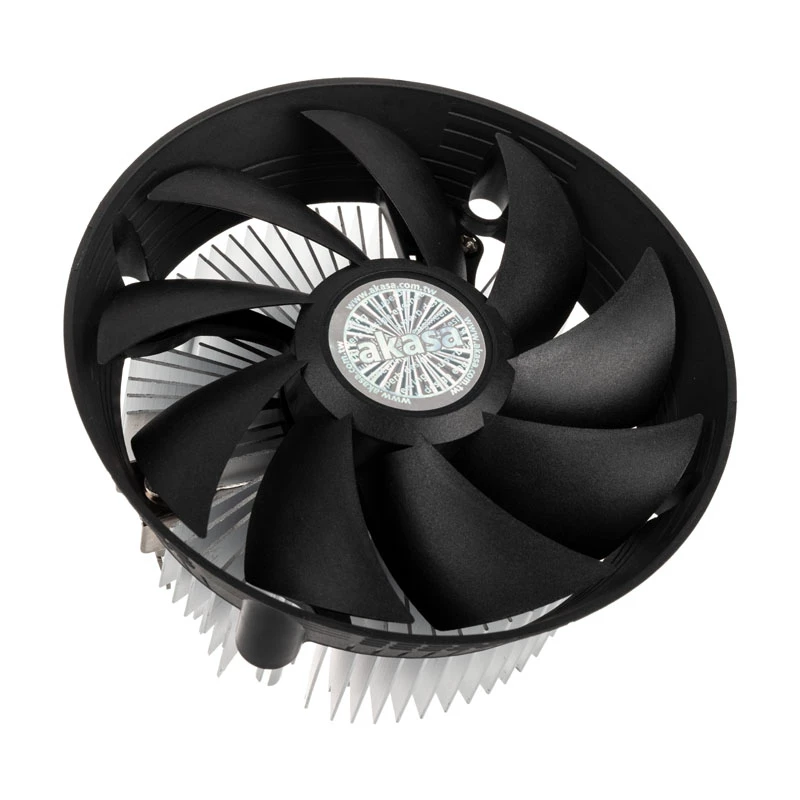

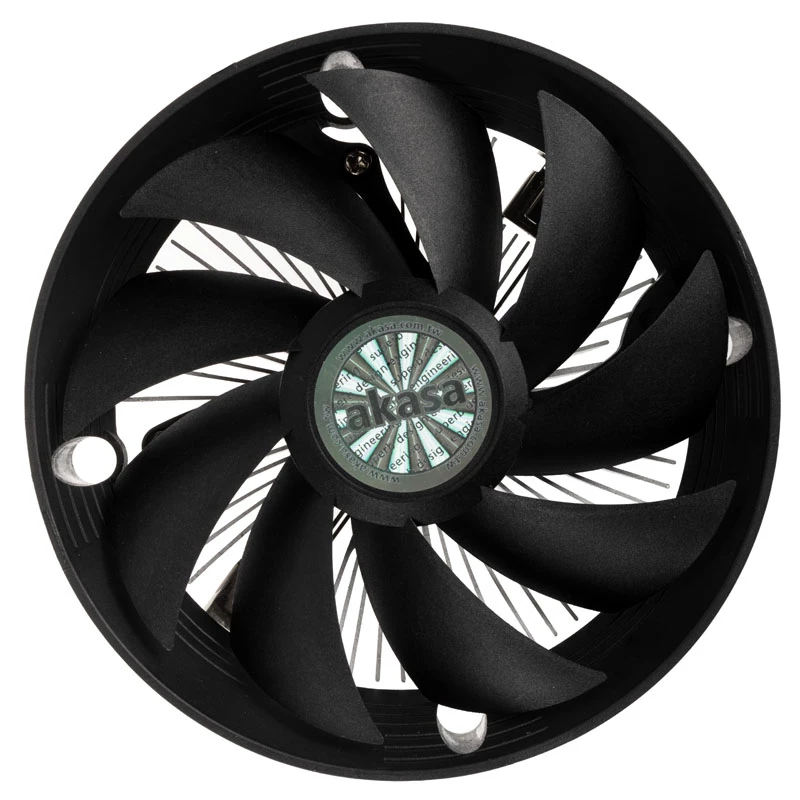

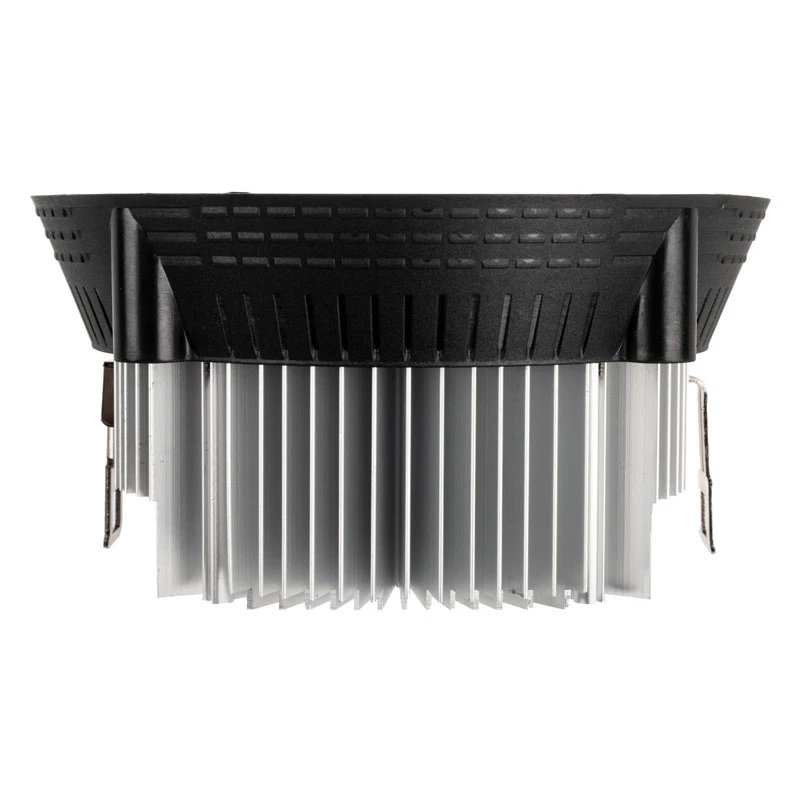

Akasa Turing FX 12 cm Black is a 120 mm air cooler designed for compact and efficient CPU cooling. The cooler uses a solid aluminium heatsink with a sunflower fin layout to increase the dissipation area, and a 120 mm PWM-controlled fan with hydraulic bearing for balanced airflow and quiet operation. Its compact dimensions (120 x 63 x 120 mm) and black finish suit a variety of PC builds and support common AMD sockets.

Advantages

The sunflower heatsink design provides an expanded surface area for heat dissipation while the funnel-style fan frame focuses airflow directly onto the CPU and nearby motherboard components. The 120 mm smart fan supports PWM control up to 1800 RPM and uses a hydraulic bearing to reduce noise and extend service life. Compact size and 120 mm fan diameter make the cooler compatible with many enclosures where space is limited.

Suitable for

• Silent or compact desktop builds
• Systems using Socket AM4 and Socket AM3+ processors
• Motherboards requiring focused airflow over VRM and CPU area

Key specifications

• Type: Air cooler
• Fan diameter: 120 mm
• Max fan speed: 1800 RPM (PWM)
• Airflow: 51.3 m³/h
• Noise level: 32.5 sone
• Bearing type: Hydraulic
• Dimensions: 120 x 63 x 120 mm
• Weight: 0.34 kg
• Supported sockets: Socket AM4, Socket AM3+
• Colour: Black

How to use

Mount the Akasa Turing FX onto a compatible motherboard following the included mounting hardware and instructions for your socket (AM4 or AM3+). Align the heatsink so the funnel fan frame directs airflow over the CPU and nearby components, secure the cooler, and connect the 4-pin PWM fan header to the motherboard to enable automatic speed control. Ensure there is sufficient clearance in the case for the cooler's 120 x 63 x 120 mm dimensions.

Recommendations

For best results, set the motherboard fan curve to allow PWM control and maintain regular case airflow. Periodically clean dust from the heatsink fins and fan to preserve cooling performance and low noise operation.
