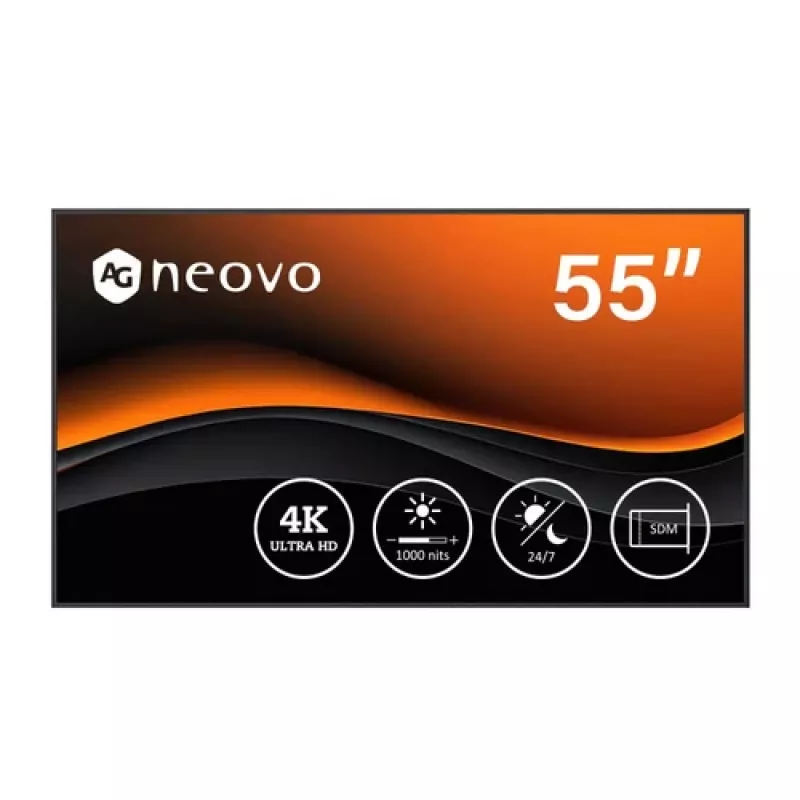

AG NEOVO TECHNOLOGY PD-5502 55 inch 4K UHD 1000 cd/m² 1200:1 SDM Ready Commercial Display

The AG NEOVO TECHNOLOGY PD-5502 is a professional 55-inch 4K UHD commercial display designed for high-brightness environments. With a brightness of 1000 cd/m² and a VA panel, it delivers stunning visuals with deep blacks and wide viewing angles. The display is SDM-ready, supporting Intel SDM-L slot for easy integration of smart modules, making it ideal for digital signage, corporate lobbies, and retail applications.

Advantages

Ultra-high brightness ensures clear visibility even in brightly lit rooms. The 4K UHD resolution provides sharp and detailed images. The VA panel offers excellent contrast ratio of 1200:1 and wide 178° viewing angles. SDM slot allows for future-proofing and easy upgrades. Built-in 2x10W speakers eliminate the need for external audio. The display supports 16/7 continuous operation, ensuring reliability for commercial use.

Suitable for

• Digital signage in retail stores, malls, and airports
• Corporate lobbies and conference rooms
• Education and training facilities
• Hospitality and entertainment venues
• Control rooms and command centers

Key specifications

• Display Size: 55 inches (138.7 cm)
• Panel Type: VA (Vertical Alignment)
• Native Resolution: 3840 x 2160 (4K UHD)
• Aspect Ratio: 16:9
• Brightness: 1000 cd/m²
• Contrast Ratio (Static): 1200:1
• Dynamic Contrast Ratio: 50,000,000:1
• Response Time: 8ms (GtG)
• Refresh Rate: 60Hz
• Viewing Angles: 178° (H) / 178° (V)
• Color Depth: 1.07 Billion colors (10-bit)
• HDR Support: HDR10
• Operating Hours: 16/7
• SDM Slot: Intel SDM-L Slot (Smart Display Module Large)
• Connectivity - Input: 3x HDMI 2.0, 1x DisplayPort 1.2, 2x USB 2.0 Type A, 1x USB 2.0 Type B, 1x Audio In (3.5mm), 1x RS232, 1x RJ45 (LAN)
• Connectivity - Output: 1x HDMI Out, 1x Audio Out (3.5mm)
• Built-in Speakers: 2 x 10W
• VESA Mount Compatibility: 400 x 400 mm
• Bezel Width: Top/Sides: 12.5 mm, Bottom: 15.5 mm
• Surface Treatment: Anti-Glare, Hardness 3H
• Orientation: Landscape / Portrait

Recommendations

For optimal performance, use with an Intel SDM module for smart signage capabilities. Pair with a compatible VESA mount for flexible installation. Ensure adequate ventilation for 16/7 operation.
