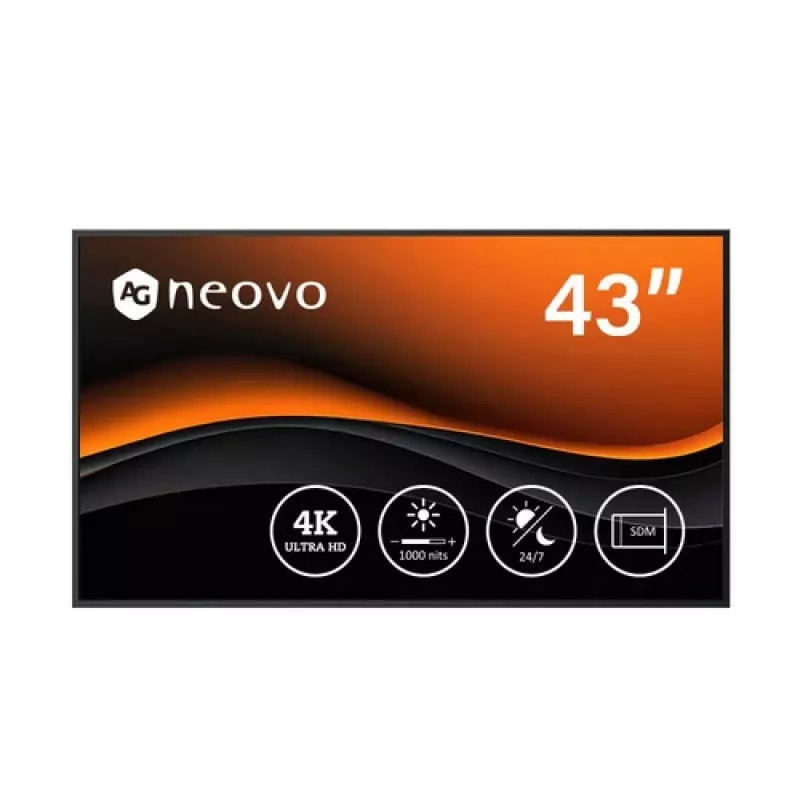

AG NEOVO PD-4302 43 inch 4K UHD IPS Professional Display with SDM Slot

The AG NEOVO PD-4302 is a 43-inch professional display designed for commercial and digital signage applications. Featuring 4K UHD resolution (3840x2160) and an IPS panel, it delivers stunning image clarity and wide viewing angles. With a brightness of 500 cd/m² and a contrast ratio of 1200:1, this display ensures vibrant visuals even in well-lit environments. The integrated Intel Smart Display Module (SDM) slot allows for easy integration of computing modules, making it ideal for interactive kiosks, corporate communications, and retail signage.

Advantages

The PD-4302 offers exceptional reliability with 16/7 operation capability, ensuring continuous performance in demanding environments. Its slim bezel design (11.9mm top/side, 14.9mm bottom) enables seamless multi-display setups. The display supports both landscape and portrait orientations, providing flexibility for various installations. With multiple connectivity options including 3 HDMI 2.0 ports, DisplayPort 1.2, USB 2.0, and Ethernet, it easily integrates into existing systems.

Suitable for

• Digital signage in retail, hospitality, and corporate lobbies
• Interactive kiosks and wayfinding systems
• Video walls and multi-display configurations
• Control rooms and command centers
• Education and training environments

Key specifications

• Display Size: 43 inches (42.51" viewable)
• Resolution: 3840 x 2160 (4K UHD)
• Panel Type: IPS
• Brightness: 500 cd/m²
• Contrast Ratio: 1200:1 (static), 50,000:1 (dynamic)
• Response Time: 8ms (GtG)
• Refresh Rate: 60Hz
• Viewing Angles: 178° horizontal/vertical
• Color Depth: 1.07 billion colors (10-bit)
• Operating Hours: 16/7
• SDM Slot: Intel Smart Display Module (small-form-factor)
• Inputs: 3x HDMI 2.0, 1x DisplayPort 1.2
• USB Ports: 2x USB 2.0 Type A, 1x USB 2.0 Type B
• Ethernet: 1x RJ45
• Internal Speakers: 2x 10W
• VESA Mount: 200 x 200 mm
• Power Consumption: 70W (typical)

Recommendations

For optimal performance, use the PD-4302 with an Intel SDM module for interactive applications. Pair with a compatible VESA mount for flexible installation. Ensure proper ventilation for continuous 16/7 operation.
