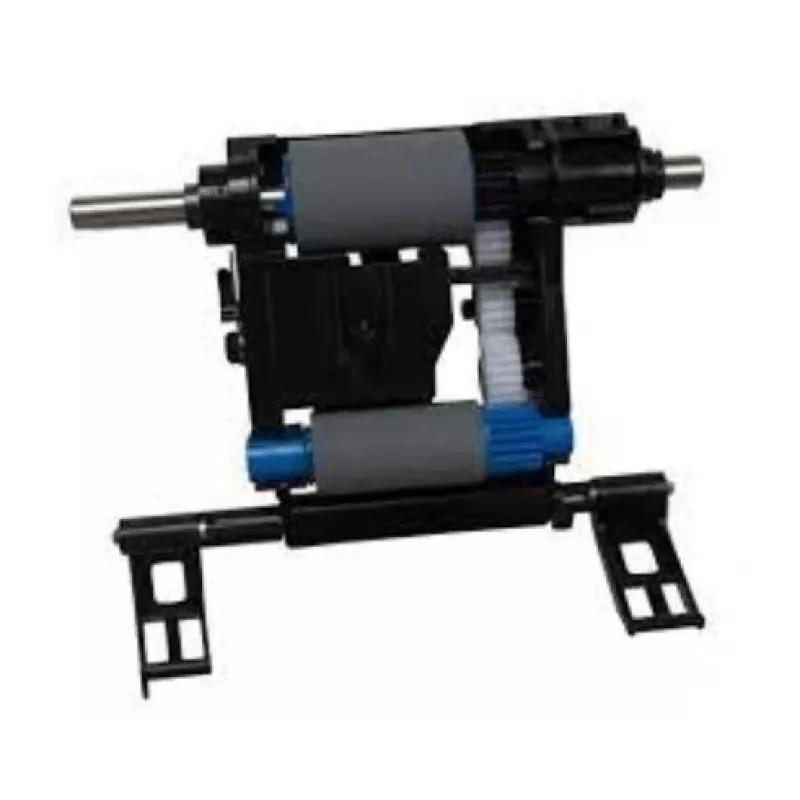

ADF Frame Assembly OKI 45856101 for automatic document feeder

Replacement ADF Frame Assembly for OKI automatic document feeders. This spare part restores the structural support and alignment inside the ADF mechanism, helping to maintain consistent paper feeding and scanning performance. Designed for use in compatible OKI devices, the assembly is intended for technicians and service personnel performing repairs or preventive maintenance.

Advantages

The ADF frame assembly re-establishes correct alignment of feeding components, which reduces the frequency of paper misfeeds and jams when installed properly. It provides the necessary rigidity and mounting points for ADF rollers and sensors, supporting stable transport of documents through the feeder. As a direct-fit replacement for the original part, it helps restore factory-level mechanical tolerances and can extend the operational life of the automatic document feeder.

Suitable for

• Repairing OKI printers and multifunction devices with compatible automatic document feeders
• Replacing damaged or warped ADF structural components to address misfeeds and feeding errors
• Servicing ADF units during scheduled maintenance to restore alignment and stability

Key specifications

• Component type: ADF frame assembly for automatic document feeder
• Function: Restores structural support and alignment of feeder mechanism
• Compatibility: Designed for use with compatible OKI ADF-equipped devices
• Material characteristics: rigid molded frame suitable for mounting rollers and sensors
• Installation: Intended for technician installation during repair or maintenance

How to use

Power off the device, disconnect it from the power source and follow the service manual instructions for removing the ADF housing. Remove old or damaged ADF frame components and transfer any reusable subcomponents such as rollers or sensors if required by the service procedure. Install the replacement ADF frame assembly, ensure correct seating and fasten all retaining screws and clips to restore factory alignment. Reconnect the device and perform a test feed and scan cycle to verify proper operation and to confirm that feeding errors have been resolved.

Recommendations

Use only when the ADF shows mechanical feeding problems, warping, or damage that cannot be corrected by cleaning or roller replacement. Follow the device service manual and anti-static precautions during installation. After replacing the frame assembly, calibrate or align the ADF per the manufacturer's service instructions and run multiple test pages to confirm reliable feeding.
