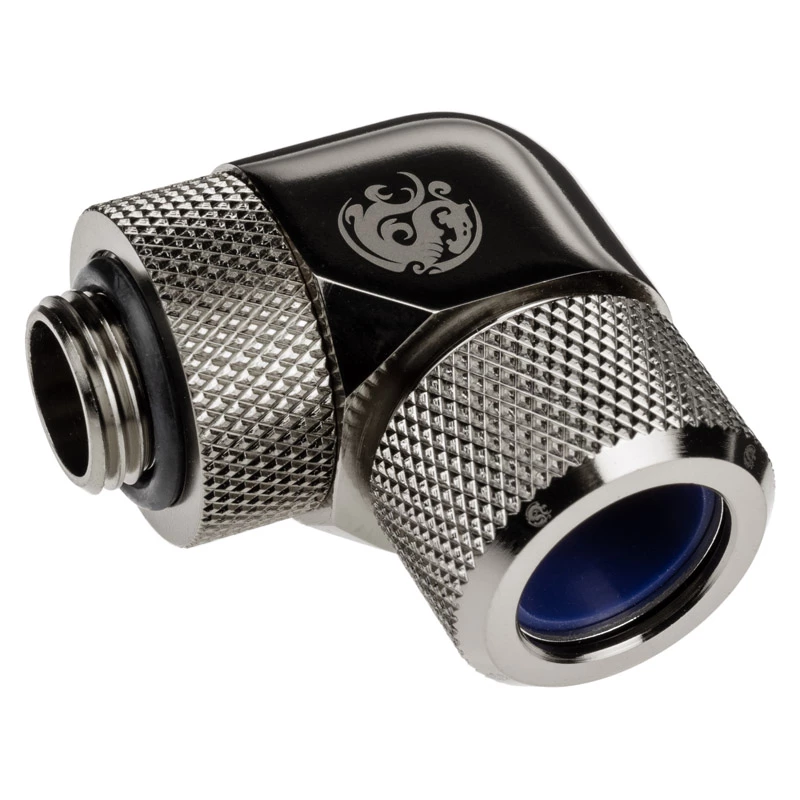

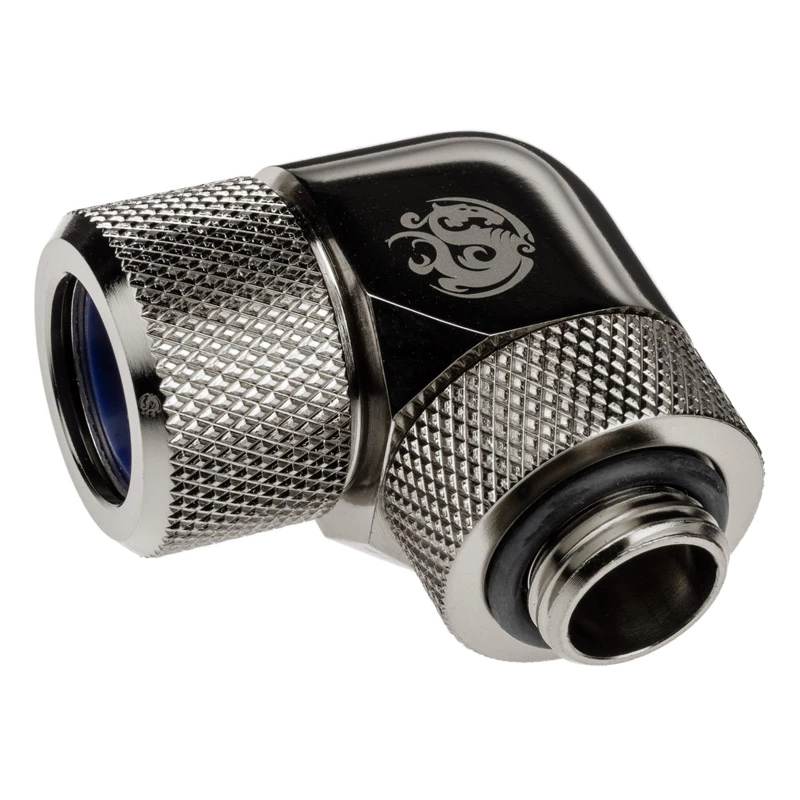

Adapter 90° BitsPower Advanced Multi-Link G1/4 inch AG to 14mm OD Hardtube — swivel

BitsPower Advanced Multi-Link 90° adapter converts a G1/4" male thread connection to fit 14 mm outer-diameter hard tubing. Designed for custom PC water-cooling systems, this compact swivel adapter provides a controlled 90° change of direction between a threaded port and rigid hardtube, reducing the need for extra bends and simplifying tube routing in confined spaces.

Advantages

The swivel mechanism allows rotation after installation to align the hardtube without twisting the fitting. The 90° profile creates a compact transition and helps preserve coolant flow while maintaining a tidy loop layout. Manufactured to match standard G1/4" threads and sized for 14 mm OD hard tubes, the adapter offers a secure, leak-resistant connection when used with compatible tubing and proper assembly practices.

Suitable for

• Custom PC liquid-cooling loops with rigid 14 mm outer-diameter hard tubing
• Situations requiring a compact 90° turn without adding multiple bends
• Installations where post-fit rotation is needed to align tubing

Key specifications

• Thread type: standard G1/4" male interface
• Hardtube compatibility: 14 mm outer diameter
• Angle: fixed 90° elbow profile
• Swivel functionality: rotational joint for alignment after tightening
• Application: PC water-cooling system fittings for rigid tubing

How to use

Install the adapter by threading the G1/4" male end into a compatible port or component until hand-tight, then secure with an appropriate tool to the manufacturer’s recommended torque to avoid over-tightening. Insert the 14 mm OD hardtube into the adapter’s receiving end according to the tube and adapter sealing method used (compression, O-ring, or other compatible sealing interface). After final tightening, rotate the swivel section to align the hardtube routing before fully locking the assembly. Verify all connections for correct seating and absence of stress or deformation in the tubing.

Recommendations

Use with rigid hard tubing of the specified outer diameter only; ensure seals and ferrules (if applicable) are correctly positioned. Pressure-test the loop after assembly and check fittings for leaks before normal operation. Avoid excessive torque and ensure compatible materials to prevent thread damage or sealing failure.
