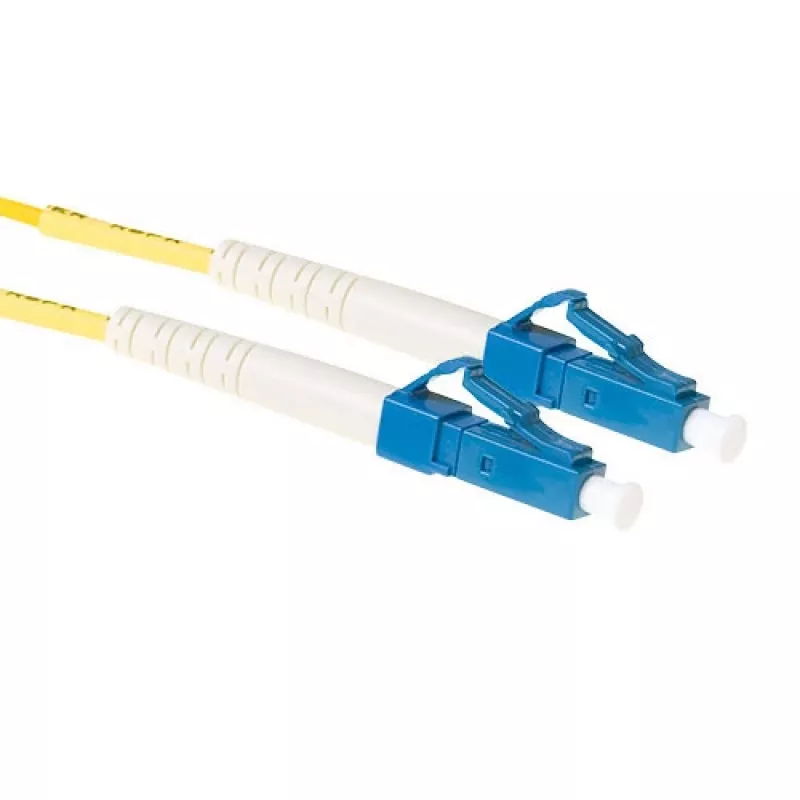

ACT 3 meter LSZH Singlemode 9/125 OS2 fiber patch cable simplex with LC connectors

The ACT 3 meter LSZH Singlemode 9/125 OS2 fiber patch cable with LC connectors is a simplex optical jumper designed for indoor networks and telecommunications environments. It uses a 9 µm singlemode core and OS2 grading to support efficient long-distance data transmission while the LSZH jacket reduces smoke and halogen emission in case of fire. Connectors are factory-terminated and finished with UPC polish for consistent optical performance.

Advantages

Each cable is supplied with an individual test report showing insertion loss (IL) and return loss (RL) measurements, and end-faces are 100% inspected to ensure connector integrity. The fiber is Grade A and connector end-faces are prepared using laser-precision cleaving to achieve low loss and repeatable connections. The LSZH outer jacket provides improved safety for indoor use.

Suitable for

• Data center patching and interconnects
• Telecommunications backbone and indoor fiber runs
• Optical equipment links and server connections

Key specifications

• Fiber type: Singlemode 9/125 µm (OS2)
• Length: 3 meters
• Configuration: Simplex
• Connector type: LC to LC with UPC polish
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Fiber grade: Grade A

How to use

Install the simplex fiber patch cable by inserting the LC connectors into the corresponding LC ports on transceivers or patch panels, ensuring proper orientation and secure seating. Avoid tight bends and maintain recommended bend radius during routing. Handle connector end-faces by keeping dust caps on until insertion and clean connectors if contamination is suspected before connection to maintain test report performance.

Recommendations

For best performance, follow standard fiber handling procedures: keep the cable within manufacturer bend-radius limits, avoid excessive tension, store with protective caps on connectors, and verify connections with appropriate optical test equipment when integrating into critical links.
