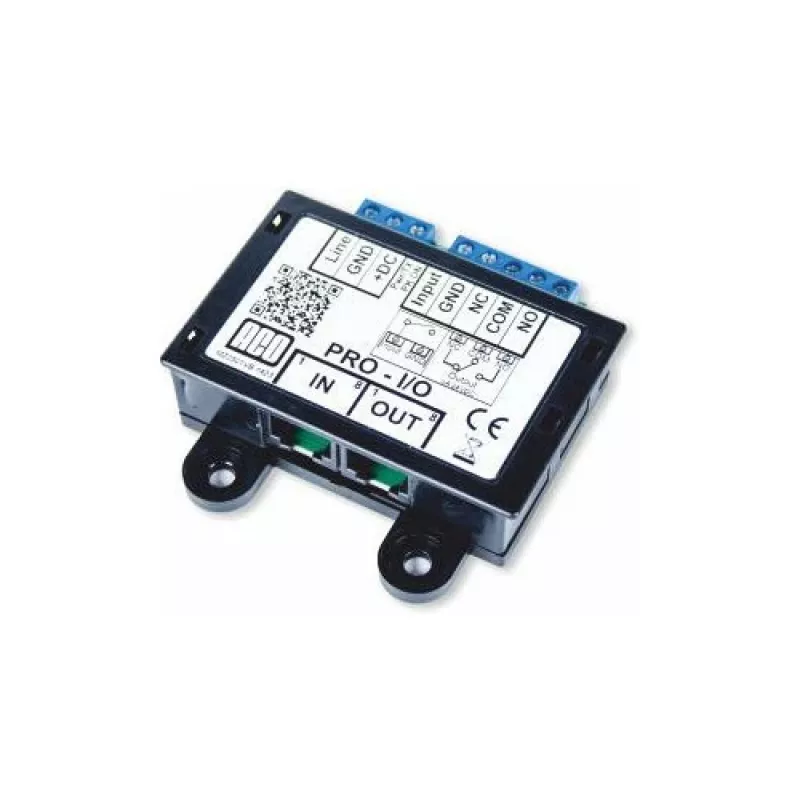

ACO PRO-I/O-60 Relay Module for Additional Inputs and Outputs for Familio PRO

The ACO PRO-I/O-60 is a DIN rail mountable relay module designed to expand the input and output capabilities of the ACO Familio PRO intercom system. It provides two potential-free relay outputs and four programmable dry contact inputs, enabling seamless integration of gate control, lighting, external sensors, and alarm systems.

Advantages

Easily add extra I/O points to your Familio PRO system without complex wiring. The compact 2-module DIN rail design saves space in the distribution board. Relay outputs support both normally open and normally closed configurations for flexible control.

Suitable for

• Gate and door automation
• Lighting control
• External sensor integration (motion, door/window contacts)
• Alarm system interfacing

Key specifications

• System Compatibility: ACO Familio PRO Intercom System
• Number of Relay Outputs: 2
• Relay Type: Potential-free (Dry Contact), NO/NC
• Max Relay Switching Voltage: 30V DC
• Max Relay Switching Current: 2A
• Number of Programmable Inputs: 4
• Input Type: Dry Contact (NO/NC)
• Power Supply: 15V DC (from Familio PRO bus)
• Current Consumption (Standby): < 50 mA
• Current Consumption (Max): < 100 mA
• Mounting Type: DIN Rail (2 modules)
• Operating Temperature Range: -20°C to +55°C
• Protection Rating: IP20
• Connection Interface: 2-wire bus (Familio PRO)

Recommendations

For optimal performance, use the PRO-I/O-60 with the ACO Familio PRO intercom system. Ensure proper DIN rail mounting and bus connection. Refer to the installation manual for detailed wiring and configuration instructions.
