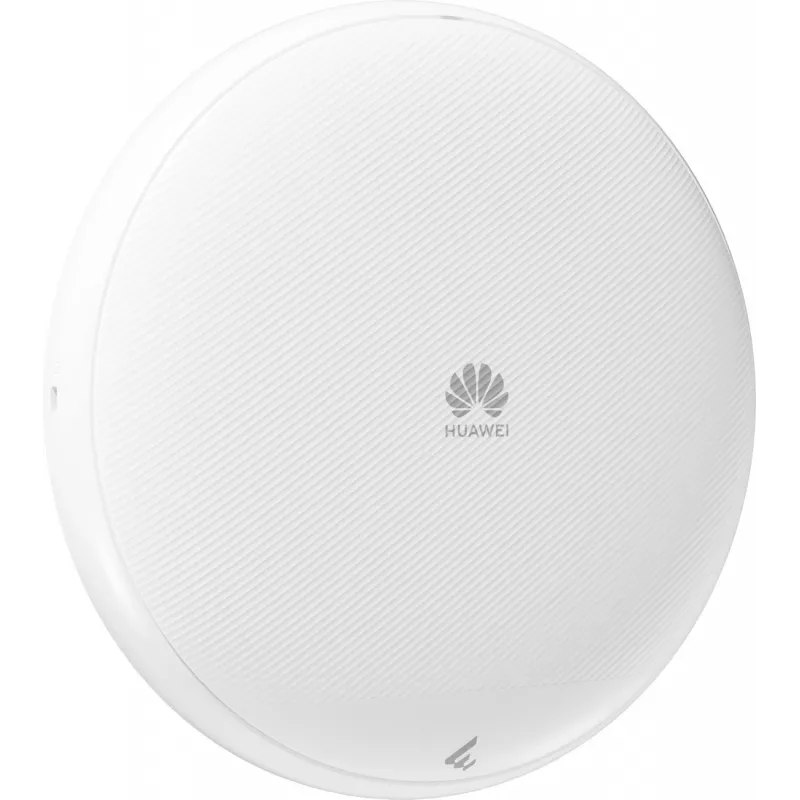

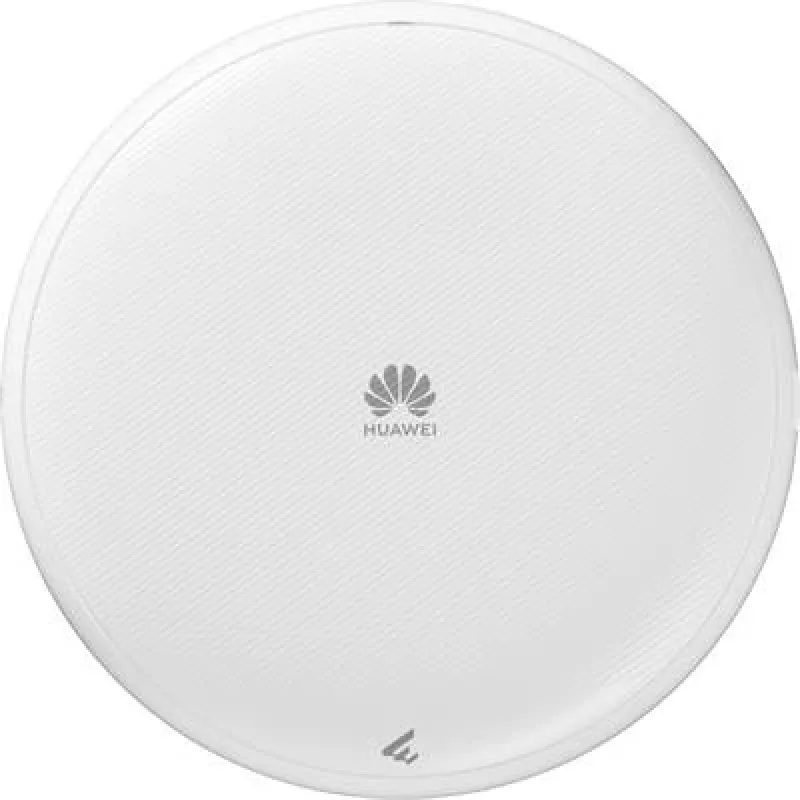

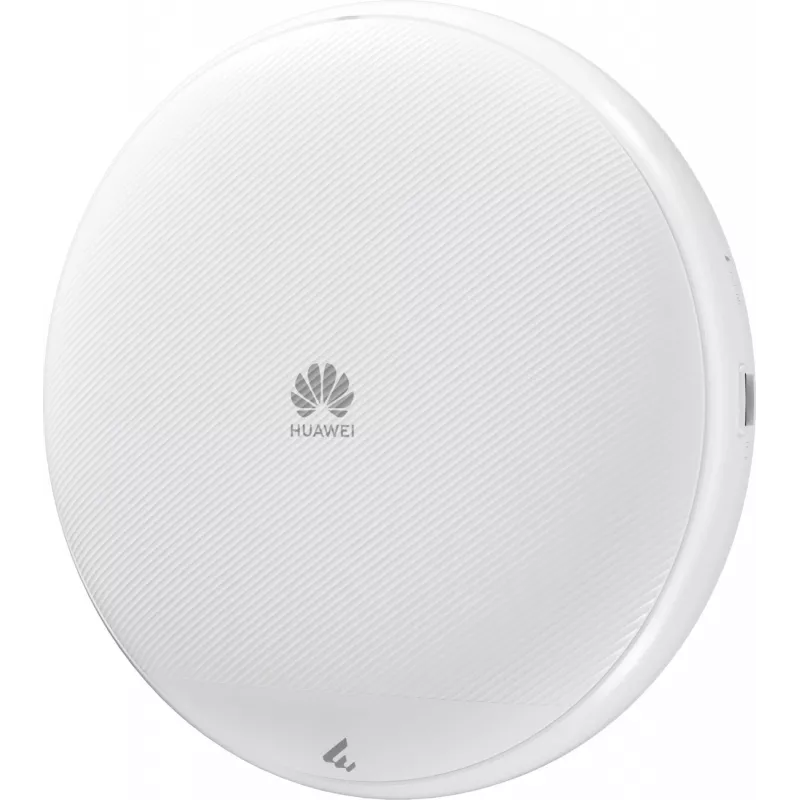

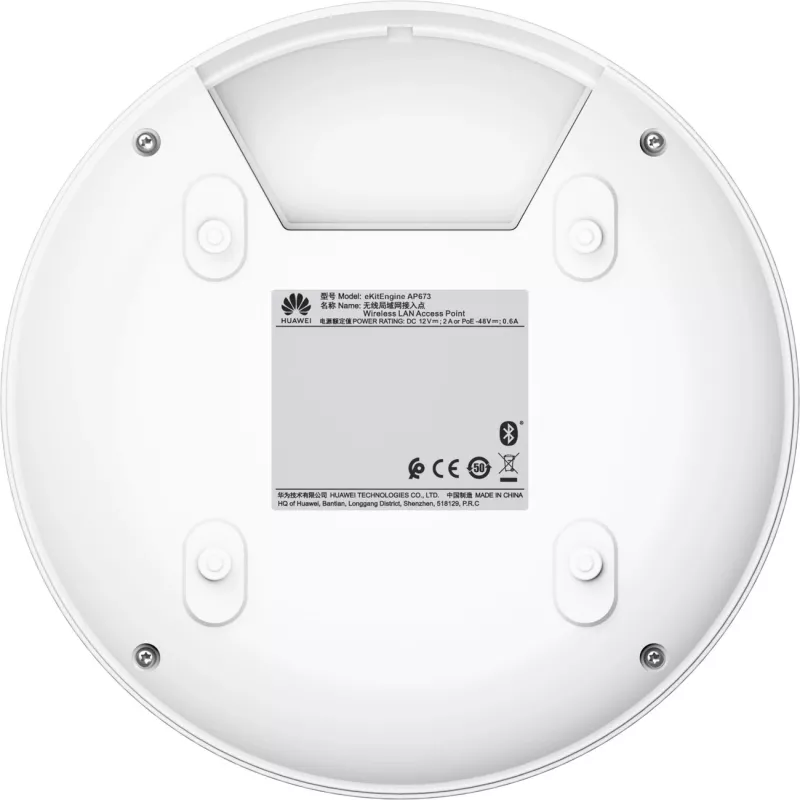

Access Point HUAWEI eKit AP673 2.4 GHz 5 GHz 6 GHz Wi-Fi 6

The HUAWEI eKitEngine AP673 is a next-generation indoor access point that complies with the Wi‑Fi 7 (802.11be) standard and supports simultaneous operation on 2.4 GHz, 5 GHz and 6 GHz bands. The AP delivers up to 13.66 Gbps aggregate throughput using eight spatial streams (2x2 MIMO on 2.4 GHz, 2x2 MIMO on 5 GHz and 4x4 MIMO on 6 GHz). It integrates smart antennas for consistent coverage and is designed for compact, flexible deployment in indoor environments such as enterprise offices, hospitals and shopping malls.

Advantages

The device provides high multi‑band capacity with Wi‑Fi 7 technologies to improve wireless experience and reduce congestion. Built‑in smart antennas help maintain stable user signals. Power over Ethernet (PoE) support simplifies installation and reduces cabling. Compact dimensions and efficient power use lower total cost of ownership. Security features include SSH‑2, WPA2‑PSK and WPA3‑SAE.

Suitable for

• Small and midsize enterprise offices
• Hospital indoor wireless coverage
• Shopping malls and supermarkets
• Indoor areas requiring high-capacity multi‑band Wi‑Fi

Key specifications

• Wi‑Fi standard: 802.11be (Wi‑Fi 7)
• Frequency bands: 2.4 GHz, 5 GHz, 6 GHz
• Spatial streams: 8 (2x2 on 2.4 GHz, 2x2 on 5 GHz, 4x4 on 6 GHz)
• Maximum aggregate data rate: 13660 Mbit/s (13.66 Gbps)
• Ethernet LAN (RJ‑45) ports: 2
• Maximum Ethernet LAN rate: up to 5000 Mbit/s
• Maximum power consumption: 21.1 W
• Weight: 0.745 kg
• Colour: White
• Security: SSH‑2, WPA2‑PSK, WPA3‑SAE

How to use

Deploy the AP673 on a ceiling or wall in the target indoor area and connect it to the network using Power over Ethernet to provide both power and data. Configure and manage the access point locally via EasyWeb or a wireless access controller (WAC), or use the HUAWEI eKit App & SNC platform for remote management and maintenance. Follow standard site‑survey practices to position the AP for optimal coverage and capacity.

Recommendations

For best performance in high‑density areas enable the 6 GHz band when client devices support Wi‑Fi 7 and perform a pre‑deployment survey to determine optimal AP placement. Use PoE switches that meet the device power requirements and keep firmware updated via the management platform to maintain security and stability.
