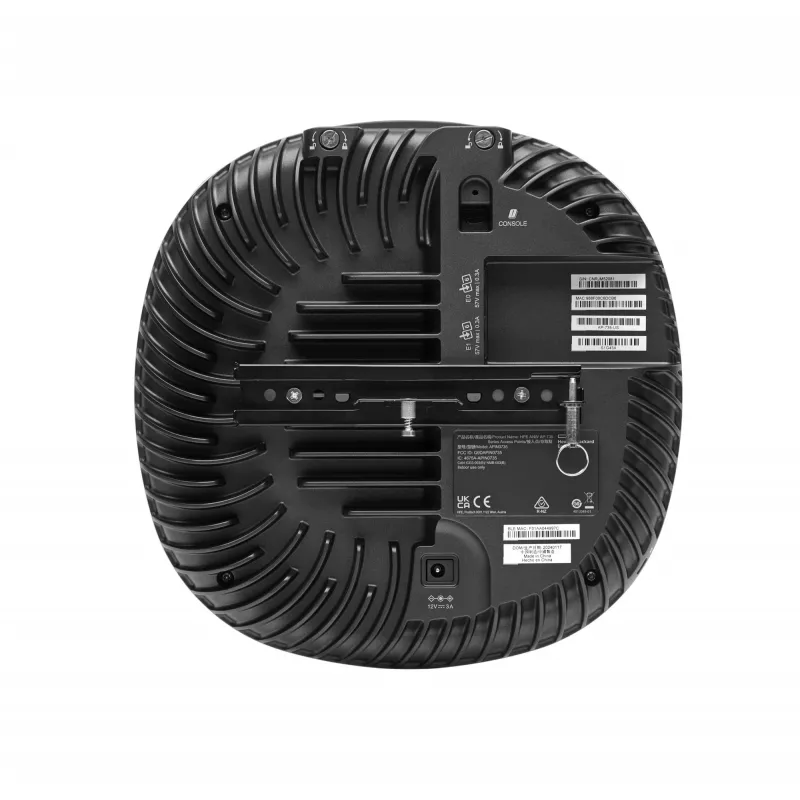

Access Point HPE Aruba Networking AP-735 2.4 GHz 5 GHz 6 GHz Wi-Fi 6

HPE Aruba Networking 730 Series APs expand Wi-Fi 7 capabilities for campus environments, offering increased spectrum, tighter location accuracy, and native IoT platform support. These access points provide tri-band radios with flexible configurations, enhanced security features through AOS‑10 and cloud management, and built-in sensors for precise positioning.

Advantages

The 730 Series delivers higher throughput and capacity—including up to 9.0 Gbps aggregate data rate in tri‑band mode and up to 14.4 Gbps when using dual 6 GHz radios—while using patented ultra tri‑band filtering to reduce interference and increase 6 GHz band capacity. Security is improved with AOS‑10 features such as AI‑driven client classification, Dynamic Segmentation for role‑based access, and optional MACsec for extended wired encryption. Integrated IoT radios (Bluetooth 6 and 802.15.4/Zigbee), USB extensions, and container compute at the edge allow support for higher IoT device densities without overlay gateways. GNSS and barometric sensors enable sub‑1‑meter location precision and automatic self‑location of APs. Cloud‑native HPE Aruba Networking Central provides AI insights, automation, and centralized orchestration.

Suitable for

• Campus and enterprise wireless networks requiring Wi‑Fi 7 performance
• Environments with high device and IoT density (retail, hospitals, manufacturing)
• Deployments needing precise indoor/outdoor location tracking and asset localization
• Networks that require centralized cloud management and advanced security controls

Key specifications

• Wireless bands: 2.4 GHz, 5 GHz, 6 GHz (tri‑band)
• Maximum aggregate data rate: up to 9.0 Gbps (tri‑band) or up to 14.4 Gbps (dual 6 GHz mode)
• Ethernet LAN (RJ‑45) ports: 2
• Supported networking standards: IEEE 802.11be (Wi‑Fi 7), 802.11ax, 802.11ac, 802.11a/b/g/n, IEEE 802.3az
• Power: PoE capable; maximum power consumption listed as 36 W in related AP-735 model data
• Product color: White; weight around 1.44 kg (AP-735 reference)

How to use

Install the AP according to site‑planning guidelines, mount it in the desired indoor or supported outdoor location, and connect to a Power over Ethernet source or appropriate power supply. Configure wireless radios using the Aruba AOS management interface or HPE Aruba Networking Central for cloud‑based provisioning. Choose radio mode (tri‑band or dual 6 GHz) and enable IoT radios and USB extensions as required. Use built‑in GNSS and barometric sensors to enable precise location services and allow automatic self‑location to reduce manual inventory tasks.

Recommendations

For optimal performance, perform a site survey to determine channel planning and radio configuration, enable AOS‑10 security features and Dynamic Segmentation for role‑based access, and use Aruba Networking Central for ongoing monitoring, firmware updates, and AI‑driven client insights.
