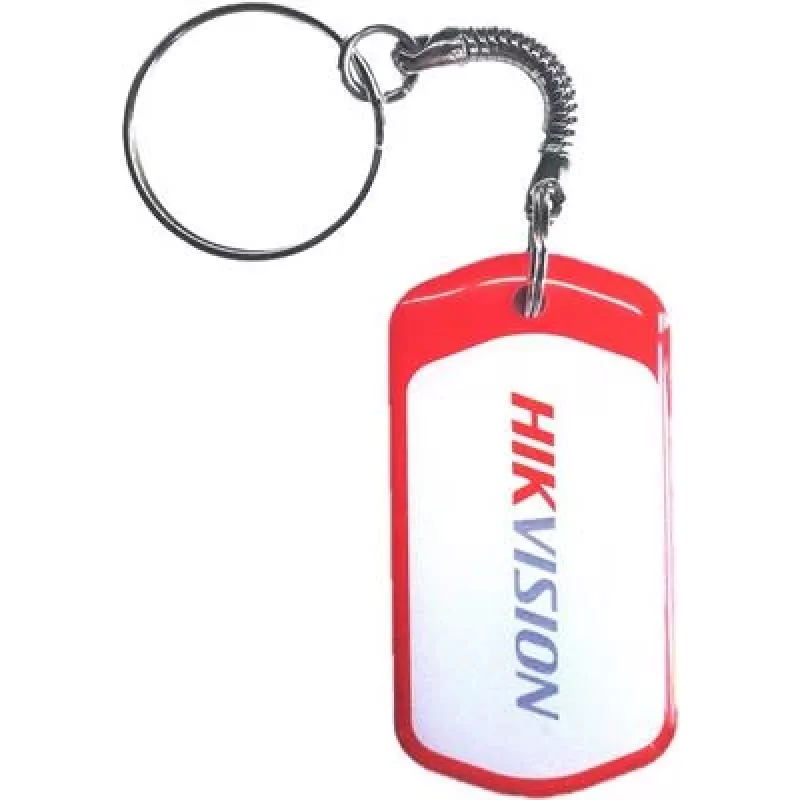

Access cards Hikvision DS-K7M102-M 13560 kHz Red White PVC

The Hikvision DS-K7M102-M access card is a compact ISO14443 Type A contactless card designed for secure identity recognition in access control systems. Constructed from PVC with AB glue, the card has a small, durable form factor measuring 26 mm × 50 mm × 4 mm and is available in red and white. Communication and data exchange are handled at a transfer rate of 106 Kbps for both read and write operations, operating at a frequency of 13560 kHz.

Advantages

The card's PVC construction with AB adhesive ensures durability and resistance to regular handling. Its small size makes it convenient to carry on a keychain. Compliance with the ISO14443 Type A standard provides broad compatibility with many access control readers, while the 106 Kbps data transfer rate supports reliable read/write performance.

Suitable for

• Employee identification and access control in offices and enterprises
• Customer or staff access management in shops and retail environments
• Restricted areas and security-controlled locations

Key specifications

• Brand: Hikvision
• Model / MPN: DS-K7M102-M
• Frequency: 13560 kHz
• Standard: ISO14443 Type A
• Data transfer rate: 106 Kbps (read/write)
• Material: PVC with AB glue
• Colors: Red, White
• Dimensions: 26 mm (width) × 50 mm (height) × 4 mm (thickness)
• EAN: 6941264011859

How to use

Present the Hikvision DS-K7M102-M card to a compatible ISO14443 Type A reader within the reader's operating range. The reader will communicate with the card at 13560 kHz and exchange data at up to 106 Kbps for authentication or data transfer. The card can be attached to a keychain for convenient carrying; avoid bending or exposing the card to strong heat or prolonged direct sunlight to maintain its condition.

Recommendations

The card is intended for use with compatible access control systems and readers supporting ISO14443 Type A. Store the card flat, avoid mechanical stress, and follow your system integrator's instructions for enrolment and security settings.
