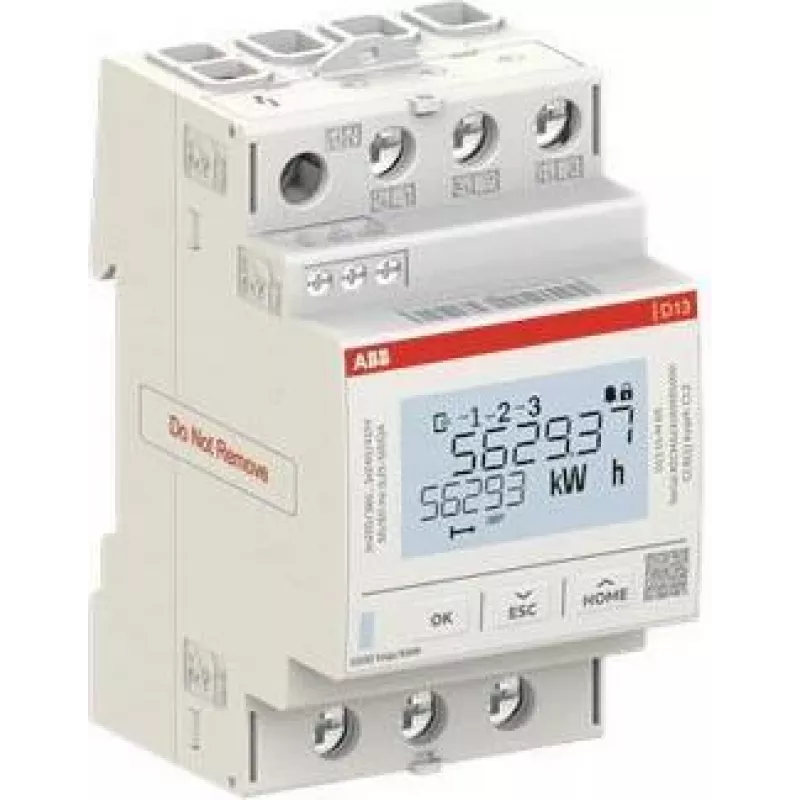

ABB D13 15-M 65 Single-Phase Electronic Energy Meter 65A Direct Connected with Pulse Output

Tracking electricity consumption accurately is essential for energy management and billing in residential and commercial installations. The ABB D13 15-M 65 energy meter provides reliable measurement of active energy (kWh) in single-phase networks, ensuring you have precise data for monitoring and cost allocation. This MID-certified meter is designed for direct connection up to 65 A, making it suitable for a wide range of applications without the need for external current transformers.

Who is it for

This meter is ideal for electricians, panel builders, and facility managers who need a compact, DIN-rail mounted solution for submetering in apartments, small businesses, or industrial control panels. It is also suitable for energy service companies requiring accurate consumption data for billing purposes.

Main features

• Single-phase direct connected meter for active energy (kWh) measurement
• Nominal current 65 A, maximum current 65 A, suitable for loads up to 15 kW at 230 V
• Accuracy Class B according to EN 50470-3 (Class 1 per IEC 62053-21)
• 6+1 digit LCD display for clear reading of energy consumption
• Pulse output (S0) for remote monitoring and integration with energy management systems
• Compact 1 DIN module width (18 mm) for space-saving installation on DIN rail
• MID certified for legal metrology in the EU
• Wide operating temperature range from -25°C to +55°C
• Front protection degree IP51, terminals IP20

Specifications

• Brand: ABB
• Model: D13 15-M 65
• MPN: 2CMA241695R1000
• EAN: 8012542635956
• Meter type: Electronic energy meter
• Measurement function: Active energy (kWh)
• Number of phases: Single-phase
• Connection type: Direct connected
• Nominal voltage (Un): 230 V AC
• Operating voltage range: 184 - 264.5 V AC (0.8 - 1.15 Un)
• Nominal current (In): 65 A
• Maximum current (Imax): 65 A
• Frequency: 50/60 Hz
• Accuracy class: Class B (EN 50470-3) / Class 1 (IEC 62053-21)
• Display: LCD, 6+1 digits
• Communication interface: Pulse output (S0)
• Mounting: DIN rail (1 module, 18 mm)
• MID certified: Yes
• Protection degree (front): IP51
• Protection degree (terminals): IP20
• Operating temperature: -25°C to +55°C
• Tariff type: Single tariff

Tips

For optimal performance, install the meter in a dry, vibration-free environment. Ensure the supply voltage and current do not exceed the rated values. The pulse output can be connected to a data logger or building management system for real-time monitoring and energy analysis.
