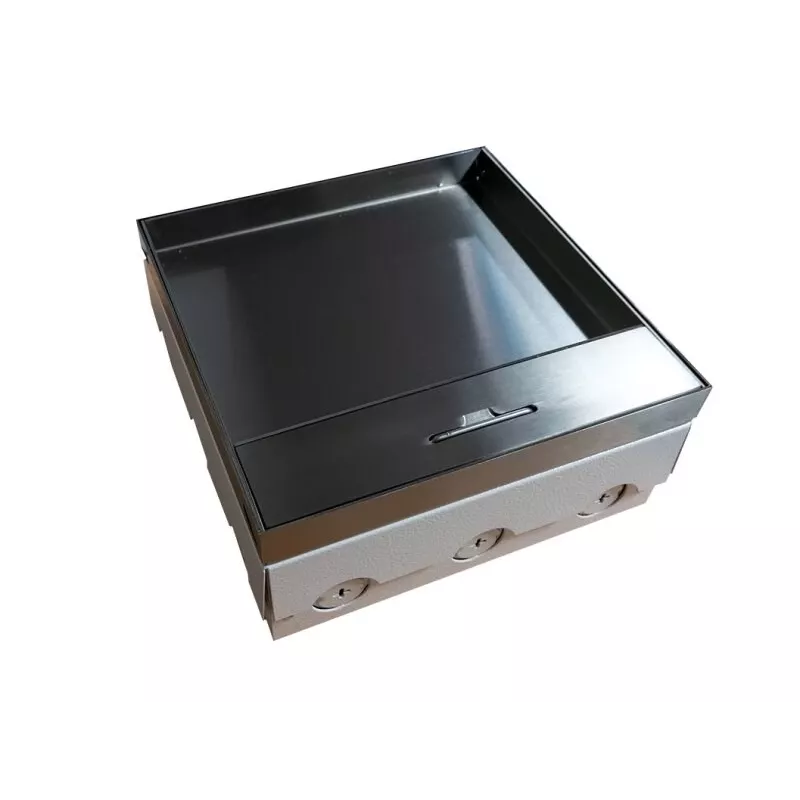

A-LAN Floor Box 12M - 12-Module Floor Box for Standard Sockets 22.5x45 mm (45x45 mm), Angled Mounting

The A-LAN Floor Box 12M is a robust 12-module floor box designed for recessed floor installation, accommodating standard sockets of 22.5x45 mm (half module) and 45x45 mm (full module) with angled mounting. Ideal for commercial, office, retail, and residential environments, it provides a flush, discreet solution for power and data connectivity.

Advantages

This floor box offers high durability with a stainless steel or galvanized steel frame and lid, capable of withstanding pedestrian traffic up to 1500N (150 kg). Its adjustable height allows for precise alignment with floor finishes, while the integrated flush-closing cable outlet maintains a clean appearance. The hinged lid features a recess for floor coverings such as carpet or laminate, ensuring seamless integration.

Suitable for

• Commercial offices and open-plan workspaces
• Retail stores and showrooms
• Residential living areas and home offices
• Conference rooms and training facilities

Key specifications

• Module capacity: 12 modules
• Socket compatibility: 22.5x45 mm (half module), 45x45 mm (full module)
• Mounting: Recessed floor installation, angled socket mounting
• Material: High-grade thermoplastic body, stainless steel/galvanized steel frame and lid
• Colour: Silver/metallic grey
• Ingress protection: IP44 (closed), IP20 (in use)
• Installation depth: approx. 80 mm
• Adjustable height: Yes
• Load capacity: up to 1500N (150 kg)
• Cable outlet: Integrated, flush-closing
• Compatibility: Simon Basic series
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Pair with compatible Simon Basic sockets and faceplates for a complete solution. Suitable for indoor use only.
