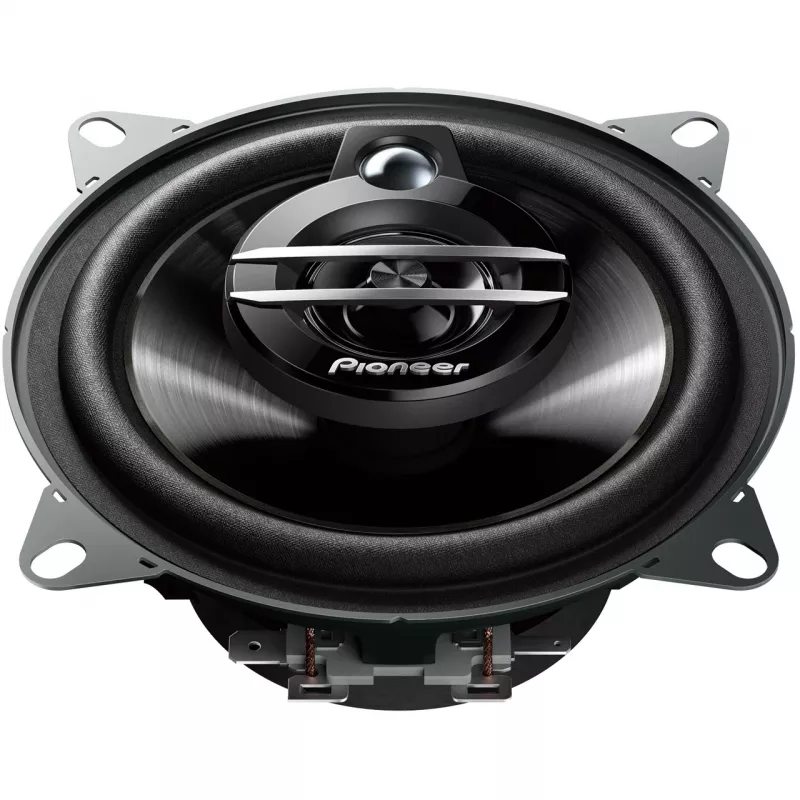

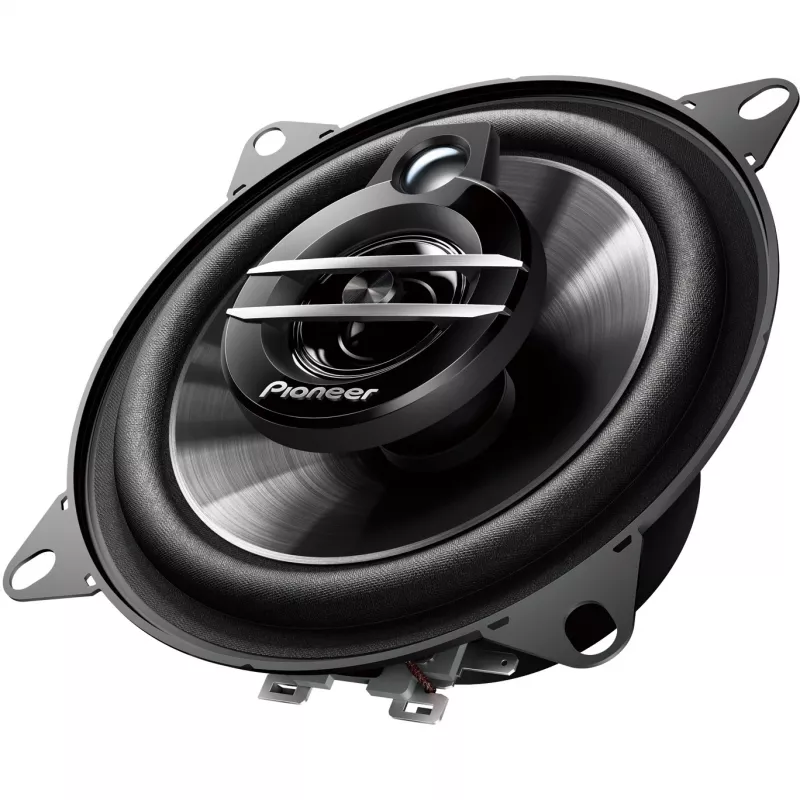

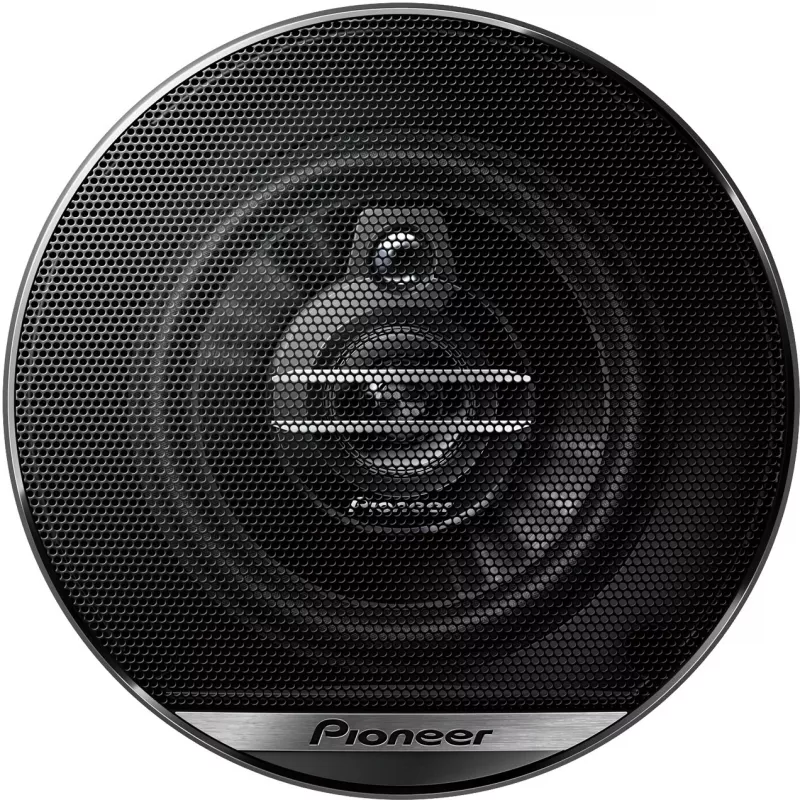

3-way car speaker Pioneer TS-G1030F

The Pioneer TS-G1030F is a 3-way car speaker from the renewed G-series, designed for premium and powerful in-car audio. The compact 10 cm coaxial speaker combines increased power handling and high sensitivity to reproduce deep bass and clear highs, even at higher volumes. Its rigid construction and multi-bolt mounting pattern simplify installation in most vehicles.

Advantages

The TS-G1030F supports a nominal power of 30 W and a peak power of 210 W, delivering balanced midrange and extended high frequencies through its dedicated tweeter. With a shallow mounting depth of 4.3 cm and a lightweight design of 350 g, it is suitable for tight installation spaces while maintaining sound quality.

Suitable for

• Upgrading factory car audio systems to improve clarity and bass
• Compact cars or doors with limited mounting depth
• Users who need a cost-effective speaker with higher peak output for dynamic passages

Key specifications

• Type: 3-way coaxial car speaker
• Model: Pioneer TS-G1030F
• Nominal (RMS) power: 30 W
• Maximum (peak) power: 210 W
• Speaker diameter: 10 cm
• Tweeter diameter: 1 cm
• Mounting depth: 4.3 cm
• Weight: 350 g
• Brand: PIONEER
• MPN/EAN: Pioneer TSG1030F / 884938373838

How to use

Install the TS-G1030F in a compatible 10 cm speaker opening following the vehicle manufacturer’s instructions. Use the multi-bolt mounting pattern to secure the speaker firmly in place. Connect speaker wires observing correct polarity and test at low volume before increasing output. Avoid exceeding the rated power for continuous use to prevent damage.

Recommendations

For best results, pair the TS-G1030F with a properly tuned head unit or a compact amplifier to ensure clean power delivery and to benefit from the speaker’s sensitivity and peak-handling capabilities. If door cavities are thin, use foam or rubber baffles to reduce vibrations and improve bass response.
