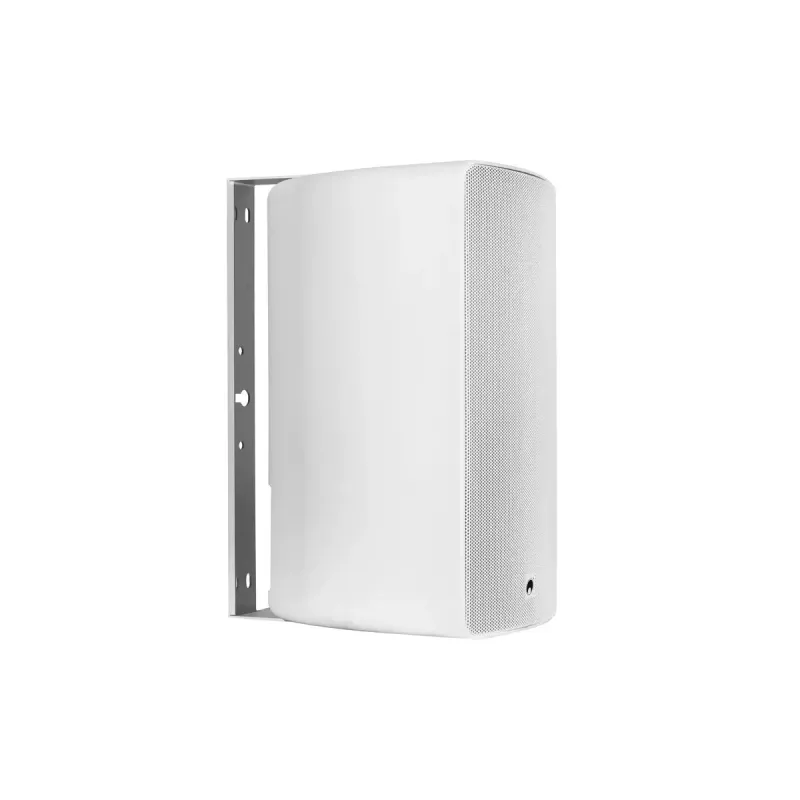

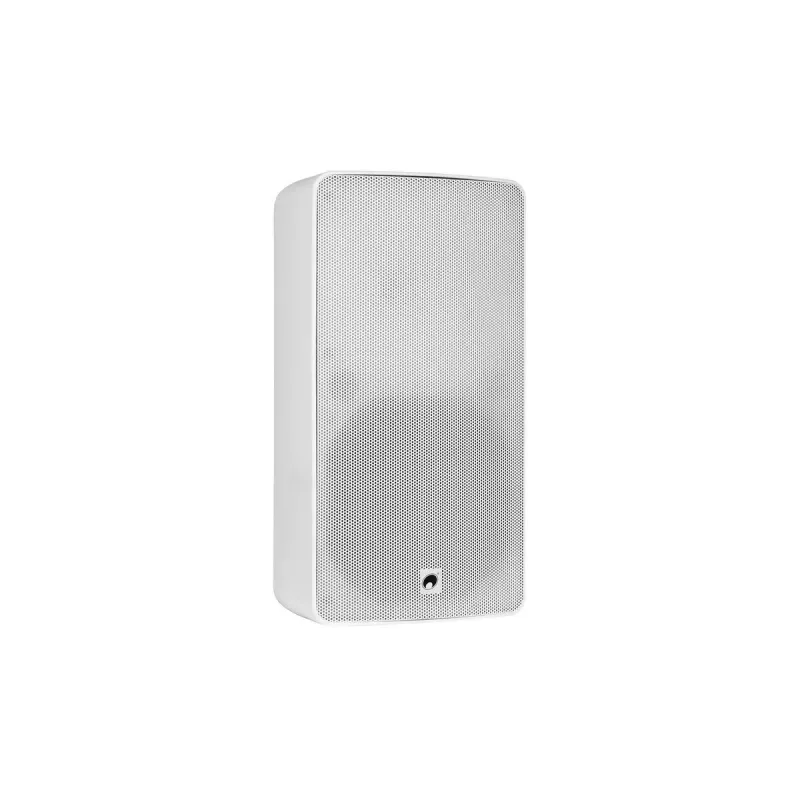

2-way loudspeaker Omnitronic 11036961 150 W

The Omnitronic 11036961 is a 2-way wired loudspeaker delivering reliable, balanced sound for bars, restaurants, shops or hotel conference areas. It provides a broad frequency response (60–18,000 Hz), 150 W RMS power and 94 dB sensitivity. The speaker is available in a low-impedance (16 ohm) model and a 100 V version for larger installations, and comes in a white, weatherproof (IP54) plastic cabinet suitable for both indoor and outdoor use.

Advantages

This Omnitronic 2-way loudspeaker combines clear sound reproduction across a wide frequency range with high sensitivity for efficient performance. The 150 W RMS rating supports strong output while the option of 16 ohm or 100 V configuration covers small to large installations. The rotatable mounting bracket included with the speaker simplifies installation and alignment. The IP54-rated enclosure ensures resistance to dust and splashing water, allowing use in sheltered outdoor areas as well as indoors.

Suitable for

Key specifications

How to use

Mount the speaker using the supplied rotatable bracket and aim it toward the listening area for even sound coverage. Connect to an appropriate amplifier or 100 V line system depending on the selected model (16 ohm wiring for low-impedance systems or the 100 V transformer taps for distributed systems). Adjust amplifier gain and equalization to match the room acoustics and playback material. For outdoor use, install the speaker in a sheltered location to maintain the IP54 protection.

Recommendations

Use the 16 ohm model for direct connection to standard amplifiers in small installations. Choose the 100 V version for larger or distributed systems where multiple speakers are combined on a constant-voltage line. Ensure secure mounting and follow local wiring regulations when connecting to mains-powered amplifiers.
