2-way Loudspeaker Omnitronic 11036953 White Wired 40 W

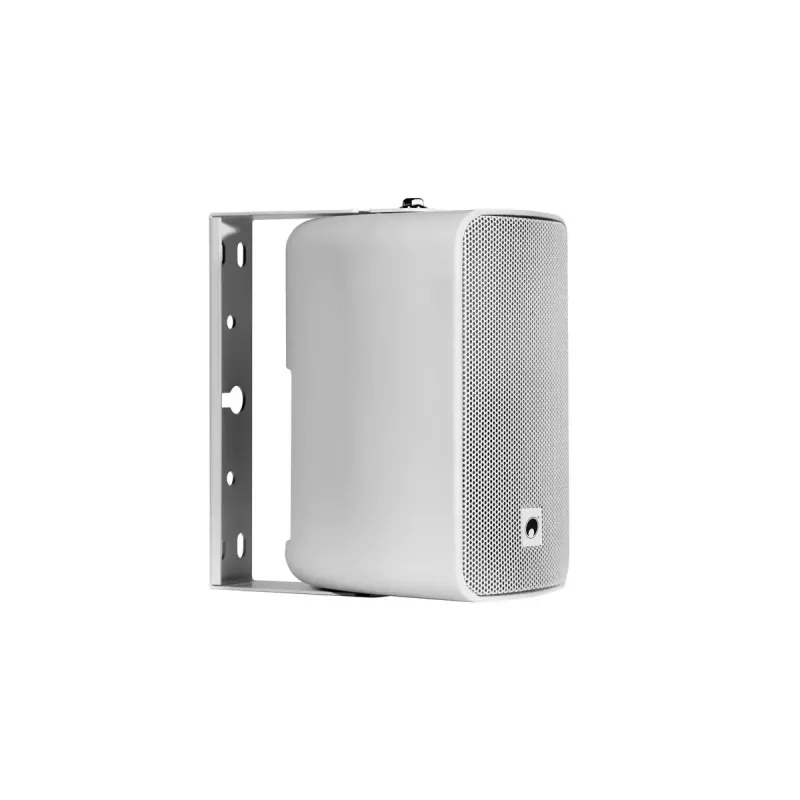

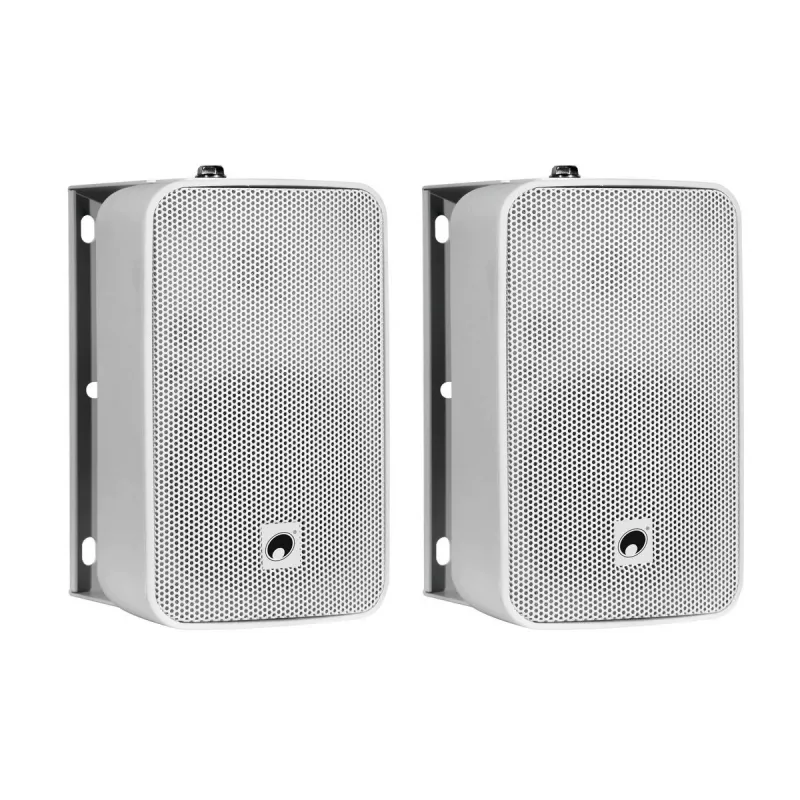

The Omnitronic 2-way loudspeaker model 11036953 delivers balanced, reliable sound for commercial and residential environments and supports both low-ohm (16 Ω) operation and installations that require 100 V line compatibility. Designed for indoor and outdoor use, the speaker comes in a white, weatherproof plastic cabinet (IP54) and includes a rotatable mounting bracket for flexible installation. Its technical characteristics — 40 W power rating, 75–20,000 Hz frequency range and 88 dB sensitivity — make it suitable for background music and public-address applications.

Advantages

The speaker offers a clear and consistent sound pattern across its frequency range and can be used in small and large installations due to the availability of both 16 Ω and 100 V connection options. The IP54-rated plastic enclosure provides protection against dust and splashing water, while the included rotatable mounting bracket simplifies aiming and placement. The white finish integrates unobtrusively into a variety of interiors.

Suitable for

Key specifications

How to use

Mount the speaker using the included rotatable bracket, orienting the driver toward the listening area for even coverage. For low-impedance systems, connect the speaker to a suitable amplifier that matches the 16 Ω nominal impedance. For 100 V line installations, use the matching 100 V transformer version and wire the speaker into the constant-voltage line according to the system layout. Adjust amplifier gain or line taps to achieve the desired loudness while avoiding clipping.

Recommendations

Place the speaker under a roof or in a covered area when used outdoors to extend its service life despite the IP54 protection. Use the 100 V version for large distributed systems and the 16 Ω version for smaller localized installations; set amplifier levels conservatively to prevent distortion.
