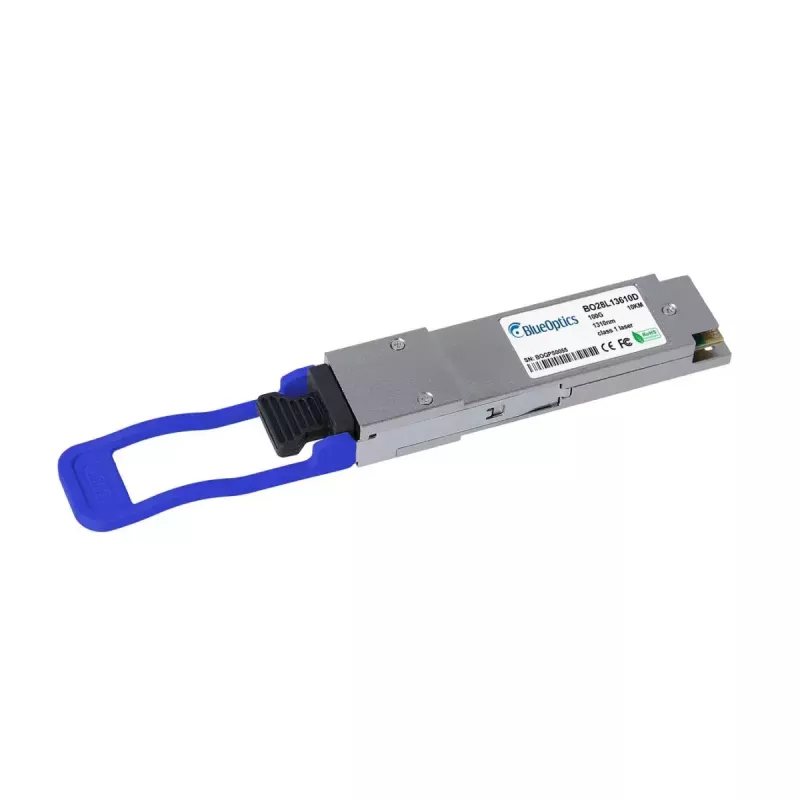

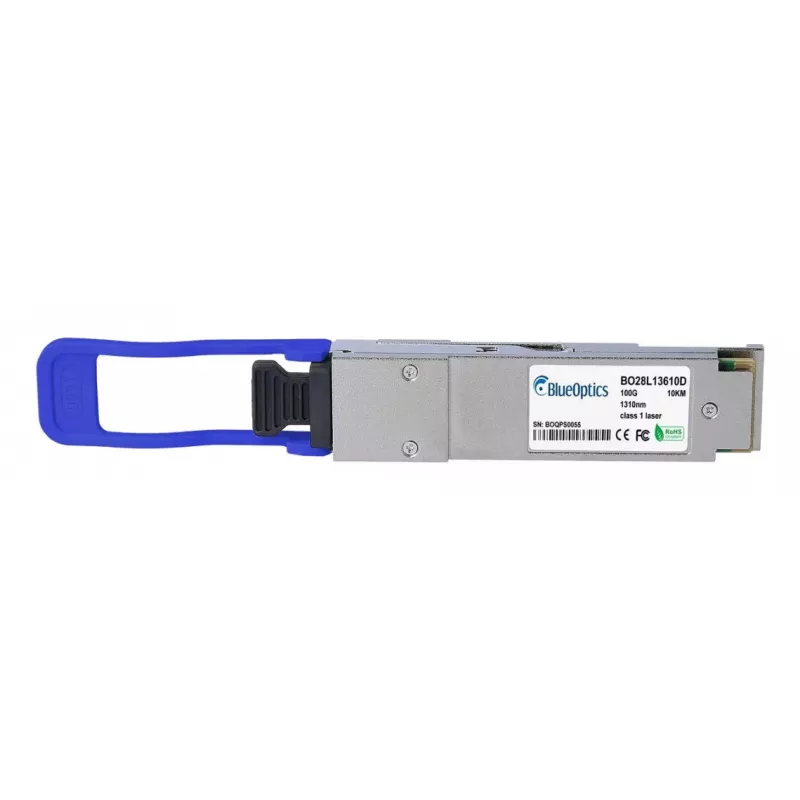

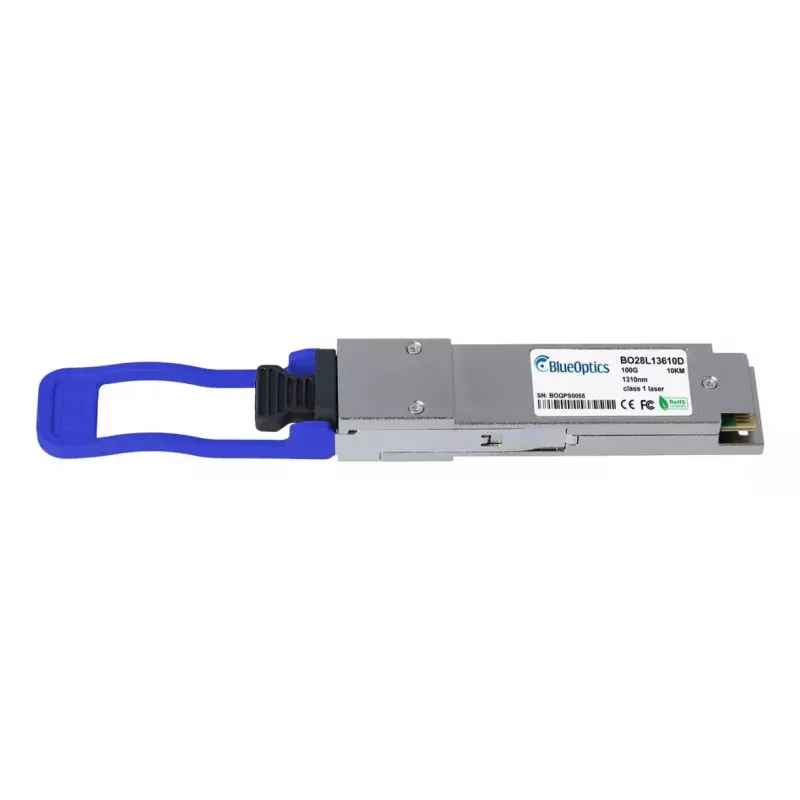

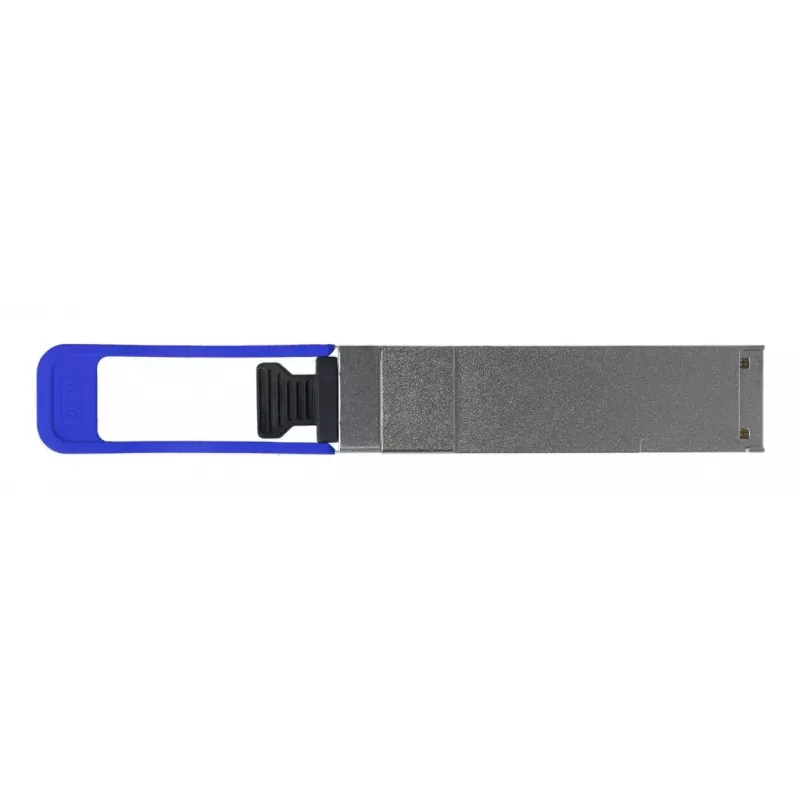

100G QSFP28 Transceiver BlueOptics 100G-QSFP28-LR4LP 100000 Mbit/s

The BlueOptics 100G-QSFP28-LR4LP transceiver is a compact, high-speed optical module designed for 100 Gbit/s networks using a QSFP28 interface. It supports long-reach single-mode fiber connections and is intended for data centre interconnects, core switches and aggregation links where a small form factor and high bandwidth are required. The module is CE, FCC and RoHS compliant and has an MTBF of 1,000,000 hours, reflecting design focus on reliability and continuous operation.

Advantages

This QSFP28 transceiver provides a 100000 Mbit/s maximum transfer rate in a compact silver-coloured housing that fits standard QSFP28 ports. Its small size and QSFP28 interface enable high port density on switches and routers while maintaining high throughput. The specified MTBF supports deployment in critical network paths, and regulatory compliance ensures compatibility with common safety and electromagnetic standards.

Suitable for

• Data centre uplinks and spine-leaf architectures
• High-speed aggregation and core network links
• Server-to-switch and switch-to-switch optical connections
• Long-reach single-mode fiber links up to supported distances

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s (100 Gbit/s)
• Form factor: QSFP28 compact transceiver module
• Weight: 0.02 kg
• Product colour: Silver
• Reliability: MTBF 1,000,000 hours
• Standards compliance: CE, FCC, RoHS

How to use

Install the transceiver into a compatible QSFP28 port on a switch, router or network interface card following the host device manufacturer’s hot-plug or installation instructions. Connect the appropriate single-mode fiber patch cable to the module’s optical interface, taking care to match transmit and receive channels and to use correct fiber type and connector. Verify link status and speed through the host device management interface and monitor for alarms or errors during initial operation.

Recommendations

The module should be handled using ESD-safe procedures and stored in a clean, dry environment when not installed. Use manufacturer-recommended fiber connectors and test the optical link budget to ensure sufficient margin for the intended span. For critical deployments, verify firmware and transceiver compatibility with the network hardware and perform end-to-end validation before placing into production.
