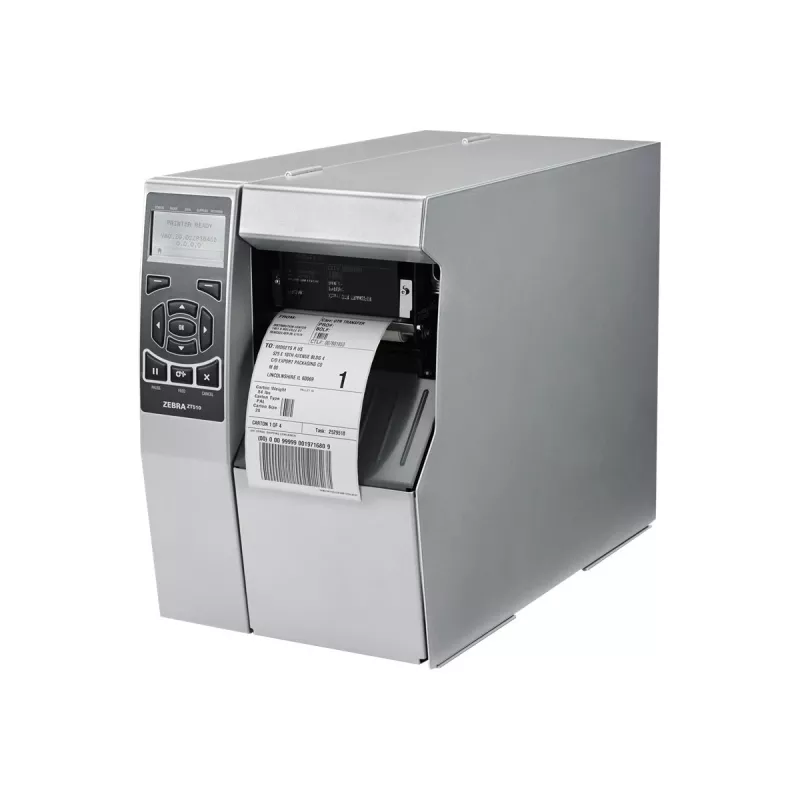

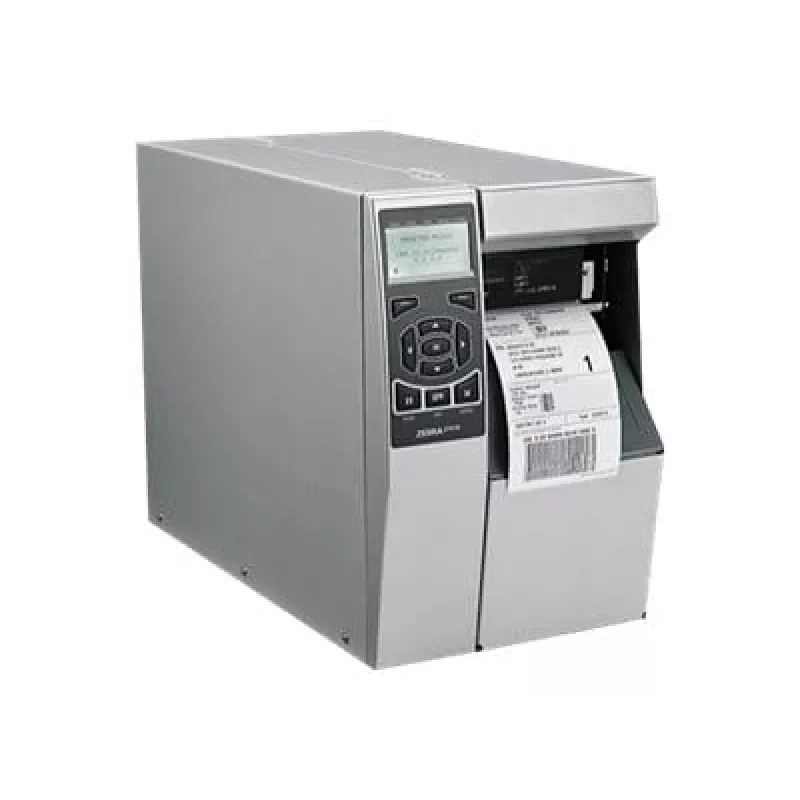

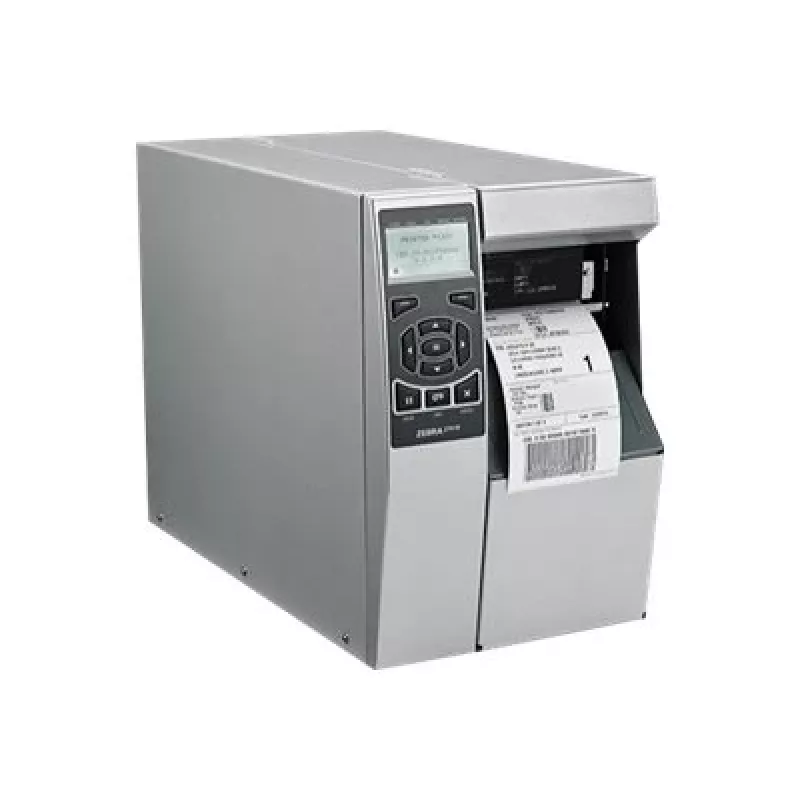

Zebra ZT510 label printer Thermal transfer 203 x 203 DPI 305 mm/sec Ethernet LAN Bluetooth

The Zebra ZT510 label printer builds on the proven design of the 105SLPlus to deliver industrial-grade thermal transfer printing with reliable 24/7 performance. Designed for high-volume production, the ZT510 offers durable steel construction, a 104 mm maximum print width, a print speed up to 305 mm/sec and a 203 x 203 dpi resolution. It includes an LCD display and Ethernet connectivity, and is available in a compact grey housing suitable for demanding warehouse and manufacturing environments.

Advantages

The ZT510 combines rugged mechanical design with advanced management features. Its steel structural components and engineered printing mechanism provide long-term durability in harsh conditions such as dust, debris and wide temperature ranges. Integrated Link-OS support enables remote monitoring and management, while optional field-installable media-handling modules and two communication slots allow flexible expansion. The printer delivers high-duty-cycle performance and fast processing at a cost-effective price point.

Suitable for

• High-volume labeling in warehouses and distribution centers
• Manufacturing production lines and work-in-progress tracking
• Logistics and shipping label generation
• Asset tagging and inventory management

Key specifications

• Print technology: Thermal transfer
• Maximum printing width: 104 mm
• Resolution: 203 x 203 dpi
• Print speed: Up to 305 mm/sec
• Display: LCD
• Connectivity: Ethernet LAN, Bluetooth (no Wi‑Fi)
• Weight: 22.7 kg
• Colour: Grey

How to use

Install the ZT510 on a stable surface and connect it to your network via Ethernet or to a local host using Bluetooth where supported. Load thermal transfer ribbon and label media according to the media-handling guide, set the print width and resolution in the printer settings, then start print jobs from your label design application or print server. Use the LCD display to perform basic configuration and status checks; for large deployments, configure Link-OS to enable centralized monitoring and firmware updates.

Recommendations

For reliable long-term operation, use labels and ribbons recommended by the manufacturer, perform regular cleaning of the printhead and platen roller, and keep the printer in an environment within the specified temperature and dust limits. Enable Link-OS management for remote diagnostics and scheduled maintenance alerts.
