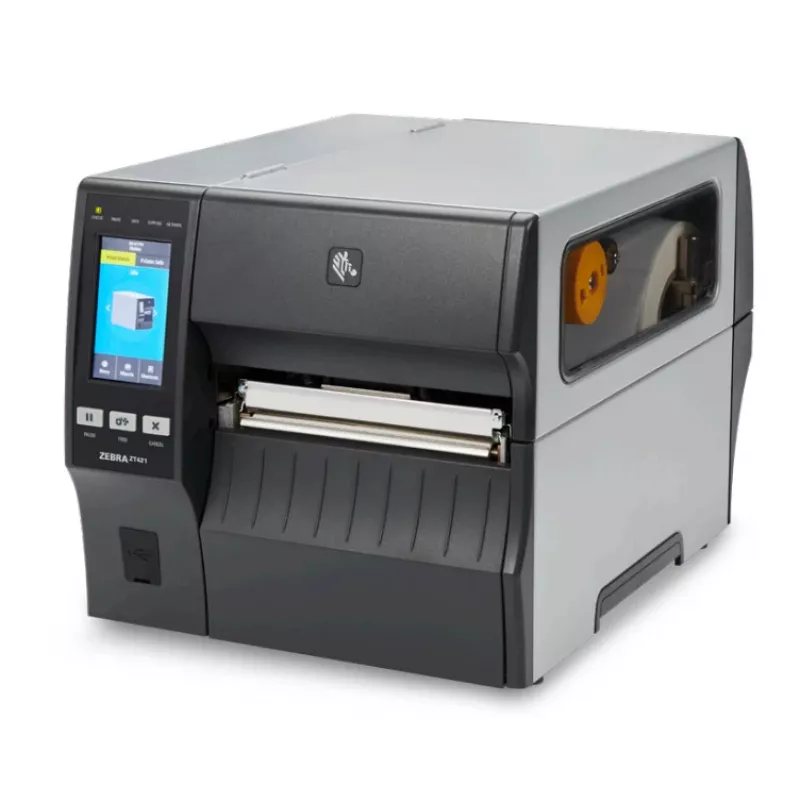

Zebra ZT421 label printer Direct thermal / Thermal transfer 300 x 300 DPI 305 mm/sec Wired & Wireless Ethernet LAN Bluetooth

The Zebra ZT421 label printer combines direct thermal and thermal transfer printing technologies in a durable all-metal frame with a bi-fold door for easy access. A 4.3-inch full-color touch display with an intuitive interface shows color-coded status alerts and simplifies operation. Available in multiple print resolutions and two print widths, the ZT421 supports high-speed printing and flexible integration into existing workflows. It offers wired and wireless connectivity options and expandable features through two open media/communication slots, enabling factory- or field-installable options such as RFID and additional interface cards.

Advantages

The ZT421 provides robust construction and straightforward maintenance with tool-less print head and platen roller replacement and lighted, color-coded side-loading media paths for quick supplies changes. Its 4.3-inch color display provides instant visual status and dynamic QR codes for on-demand web-based support. Built on Zebra’s Link-OS platform and Print DNA suite, the printer is easy to integrate, manage and update while allowing future expansion via open architecture and optional modules.

Suitable for

• High-volume label printing in manufacturing and logistics
• Retail and point-of-sale labeling
• Asset tracking and inventory management
• Healthcare specimen and labelling applications
• Environments requiring RFID encoding or specialized media handling

Key specifications

• Print technology: Direct thermal / Thermal transfer
• Maximum printing width: 168 mm
• Maximum print speed: 305 mm/sec
• Resolution options: up to 300 x 300 dpi
• Connectivity: Ethernet LAN, USB, Serial, dual USB Host, Bluetooth (varies by configuration)
• Weight: 18.4 kg
• Colors: Black, Grey
• Expandable: Two open communication/media slots; factory- or field-installable RFID and media handling options

How to use

Install the ZT421 on a stable surface and connect it to power and your network or host device using the chosen interface. Load media and ribbon via the side-loading paths following the color-coded guides. Use the 4.3-inch touch display to configure print settings, select resolution and speed, and monitor status alerts. For integration, install drivers or use Zebra Print DNA tools and utilities to deploy templates, manage devices and update firmware. Add optional modules or RFID encoders as required by your applications either in the factory or in the field.

Recommendations

Use media and ribbons specified by Zebra or validated third parties to ensure print quality and reliable operation. Regularly clean the print head and platen roller according to the maintenance schedule in the user manual to extend component life. When deploying in networked environments, register the device with your management console and enable firmware updates from Zebra to maintain security and compatibility.
