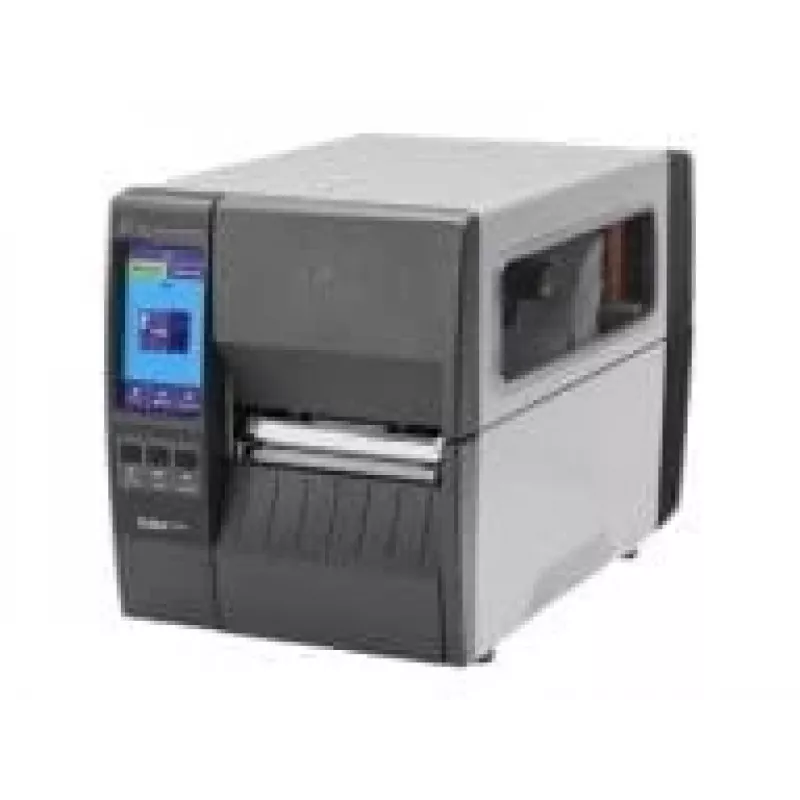

Zebra ZT231 label printer Thermal transfer 203 x 203 DPI 305 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

The Zebra ZT231 label printer combines thermal transfer printing with a 203 x 203 DPI resolution and a maximum print speed of 305 mm/sec. Designed for industrial environments but sized to save space, the ZT231 offers wired and wireless connectivity, a large color touchscreen for easy operation, and a durable all-metal frame. Expandable options such as RFID encoding, additional media handling and network connectivity allow the printer to adapt as business requirements change.

Advantages

The ZT231 provides fast print speeds and consistent 203 x 203 DPI print quality while maintaining a compact footprint. Its large color touchscreen displays status information, setup wizards and how-to videos for simplified use, including with gloved hands. Built with an all-metal frame, the printer supports onsite and remote management and includes Zebra PrintSecure for built-in security. Modular options let you add wireless, Ethernet, RFID or advanced media handling when needed.

Suitable for

• Barcode and label printing in warehouses and manufacturing
• Retail and distribution center labeling
• Asset tagging and compliance labeling with optional RFID
• Office and point-of-sale printing where space is limited

Key specifications

• Print technology: Thermal transfer
• Resolution: 203 x 203 DPI
• Maximum print speed: 305 mm/sec
• Maximum printing width: 104 mm
• Display: Large color LCD touchscreen
• Connectivity: Wired (Ethernet) and wireless (Wi‑Fi)
• Product colour: Black
• Weight: 9.1 kg
• Manufacturer part number (MPN): ZT23142-T0EC00FZ

How to use

Install the ZT231 on a stable surface and connect power and your chosen network interface (Ethernet or Wi‑Fi). Load thermal transfer ribbon and media according to the user guide, then use the color touchscreen to access setup wizards, configure print parameters (width, speed, darkness) and load templates. For RFID models, follow the RFID setup steps to enable encoding. Use Zebra’s management tools to monitor status, deploy firmware updates and manage settings remotely as required.

Recommendations

For reliable operation, use media and ribbons recommended by Zebra, keep the printer’s firmware up to date, and schedule routine cleaning of printhead and path. When using RFID features, verify tag compatibility and perform test prints to confirm encoding and print alignment before full production runs.
