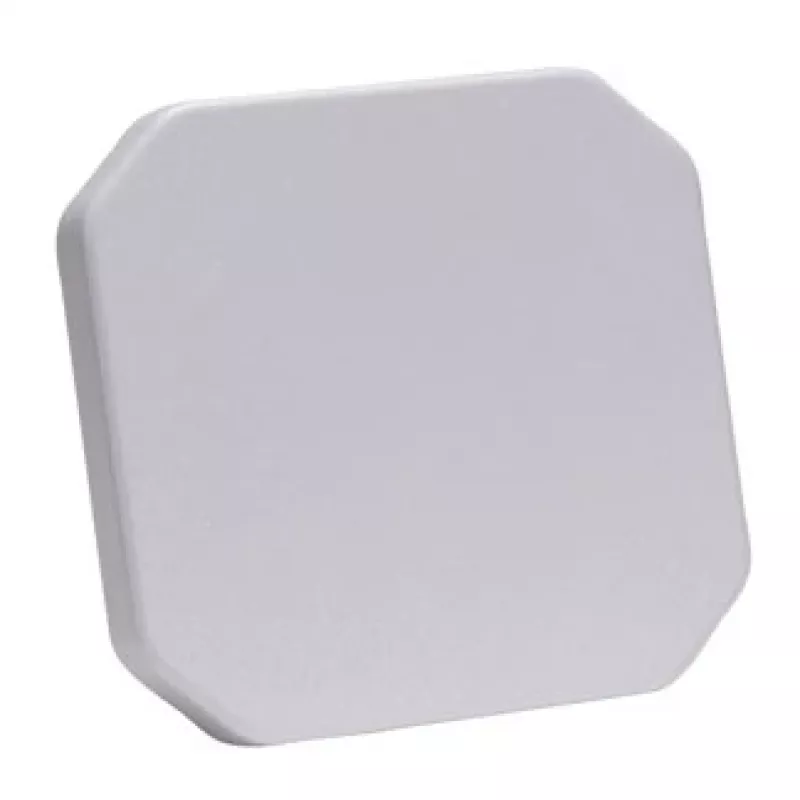

Zebra Symbol AN720 RFID Antenna - 6 dBi - Directional - White

Zebra Symbol AN720 RFID Antenna - 6 dBi - Directional - White
Zebra Symbol AN720 RFID Antenna - 6 dBi - Directional - White
R4,811
The Zebra Symbol AN720 is a high-performance UHF RFID antenna designed for reliable, long-range reading in both indoor and outdoor environments. With a 6 dBi gain and directional pattern, it delivers focused coverage for inventory management, asset tracking, and supply chain applications.AdvantagesR... Read More
Stock Out Of StockNo Stock Code 2942705 Brand ZEBRA Model AN720-L51NF00WEU Warranty 2 Years

Shipping & Returns

The Zebra Symbol AN720 is a high-performance UHF RFID antenna designed for reliable, long-range reading in both indoor and outdoor environments. With a 6 dBi gain and directional pattern, it delivers focused coverage for inventory management, asset tracking, and supply chain applications.

Advantages

Robust IP67-rated housing ensures durability in harsh conditions. Wide frequency range (865-928 MHz) supports global UHF bands. Linear polarization and 70° beamwidth provide consistent read performance. Easy mounting with VESA 75mm, wall, or pole options.

Suitable for

  • Warehouse and distribution center dock doors
  • Retail inventory management
  • Manufacturing and logistics
  • Access control and asset tracking

Key specifications

  • Antenna type: RFID Antenna
  • Frequency range: 865-928 MHz
  • Gain: 6 dBi
  • Polarization: Linear
  • Horizontal beamwidth: 70°
  • Vertical beamwidth: 70°
  • Connector: RP-TNC Female
  • Impedance: 50 Ohm
  • VSWR: < 1.5:1
  • IP rating: IP67
  • Operating temperature: -20°C to 60°C
  • Colour: White

Recommendations

For optimal performance, pair with Zebra RFID readers and use appropriate cabling. Ensure proper mounting orientation to maximize read range.

Key Highlights
  • N-type White
  • 6 dBi
  • 50 Ω
  • Circular polarization Female
  • Wall
Specifications
Antenna connector type
RP-TNC Female
Antenna gain level (max)
6 dBi
Antenna type
RFID Antenna
Brand
Zebra
Category
RFID Antennas
Certification
IP67
Depth
45 mm
EAN
5704174279709
Frequency range
865-928 MHz
Height
255 mm
Horizontal beam width
70°
Impedance
50 Ohm
Model
AN720-L51NF00WEU
MPN
AN720-L51NF00WEU
Product colour
White
Vertical beam width
70°
Voltage Standing Wave Ratio (VSWR)
< 1.5:1
Weight
0.5 kg
Width
255 mm
