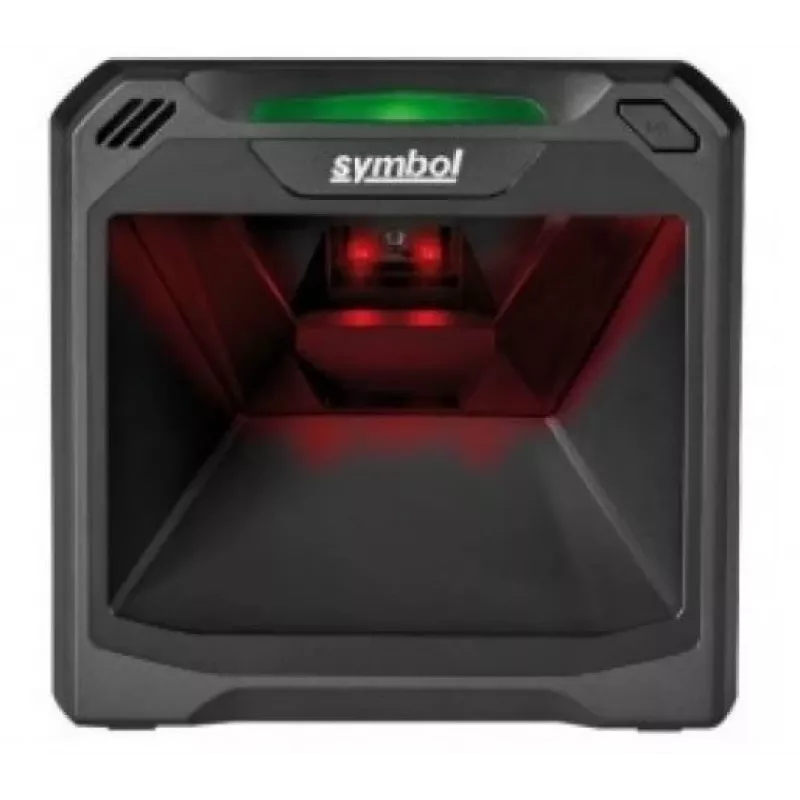

Zebra DS7708-SR4U2100ZCW Presentation Imager Barcode Scanner Desktop, Midnight Black

The Zebra DS7708-SR4U2100ZCW is a high-performance presentation imager barcode scanner designed for desktop and countertop use. With its omnidirectional 2D area imager technology, it captures 1D and 2D barcodes from printed labels and mobile device screens with exceptional speed and accuracy. The scanner features a sleek Midnight Black design and offers reliable wired USB connectivity, making it an ideal choice for retail, hospitality, and light industrial environments.

Advantages

This scanner delivers fast, reliable scanning of virtually any barcode, including those on mobile phones, thanks to its advanced 2D imager. Its compact desktop form factor saves space, while the IP52 sealing protects against dust and water splashes. With a drop specification of 1.2 m to concrete, it is built to withstand daily use in busy environments.

Suitable for

• Retail point-of-sale (POS) checkout counters
• Hospitality and ticketing applications
• Light industrial and warehouse scanning
• Healthcare and laboratory barcode reading

Key specifications

• Scanner Type: Presentation Imager
• Scan Technology: 2D Area Imager
• Scan Pattern: Omnidirectional
• Supported Symbologies: 1D, 2D, PDF417, Data Matrix, QR Code, Aztec
• Host Interface: USB (HID Keyboard, IBM SurePOS, Serial Emulation)
• Colour: Midnight Black
• Light Source: Aiming 617nm Amber LED; Illumination 660nm Red LED
• Field of View: 48° H x 37° V
• Minimum Print Contrast: 15% MRD
• Motion Tolerance: 63.5 cm/s (25 in./s)
• Drop Specification: Withstands multiple 1.2 m (4 ft.) drops to concrete
• Sealing: IP52
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Power Input: 5 VDC ± 10%
• Current Consumption: 360 mA (typical)
• Connectivity Technology: Wired

Recommendations

For optimal performance, use the included USB cable and ensure the scanner is placed on a stable, flat surface. Compatible with Windows, Linux, and mobile operating systems via USB interface. Ideal for environments requiring fast, hands-free scanning.
