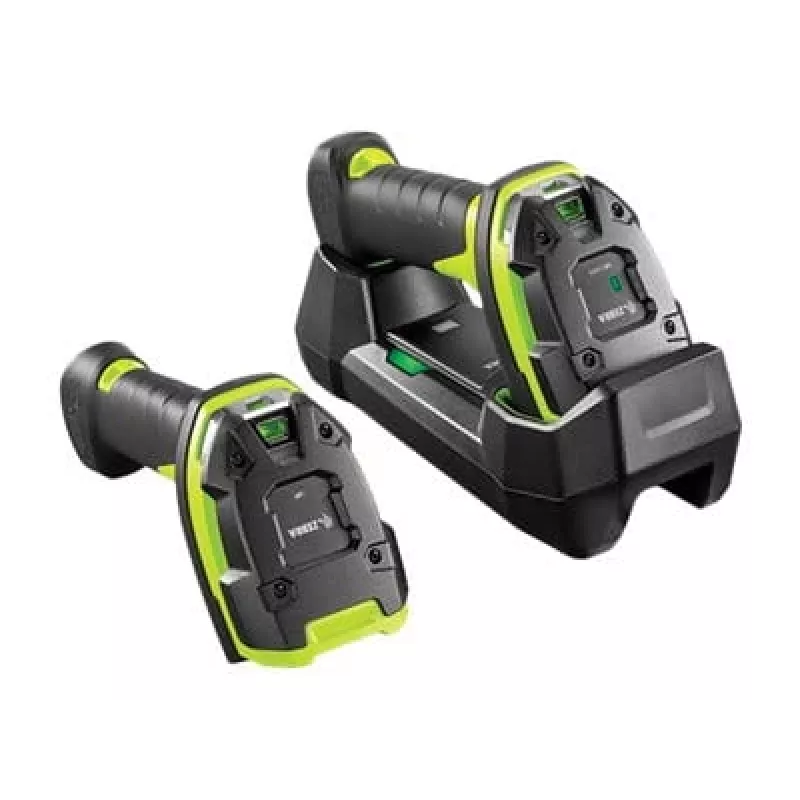

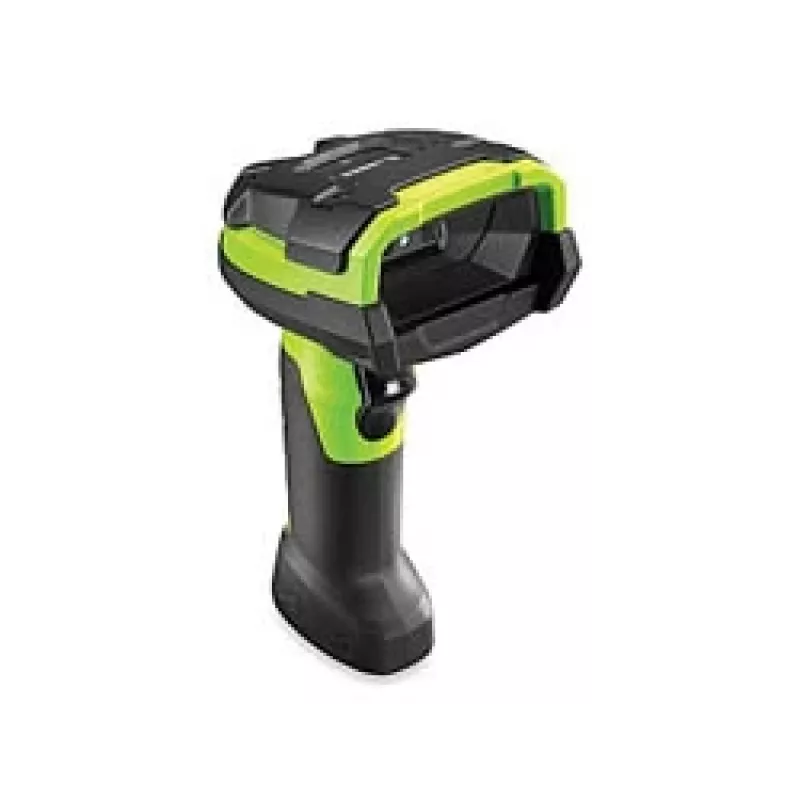

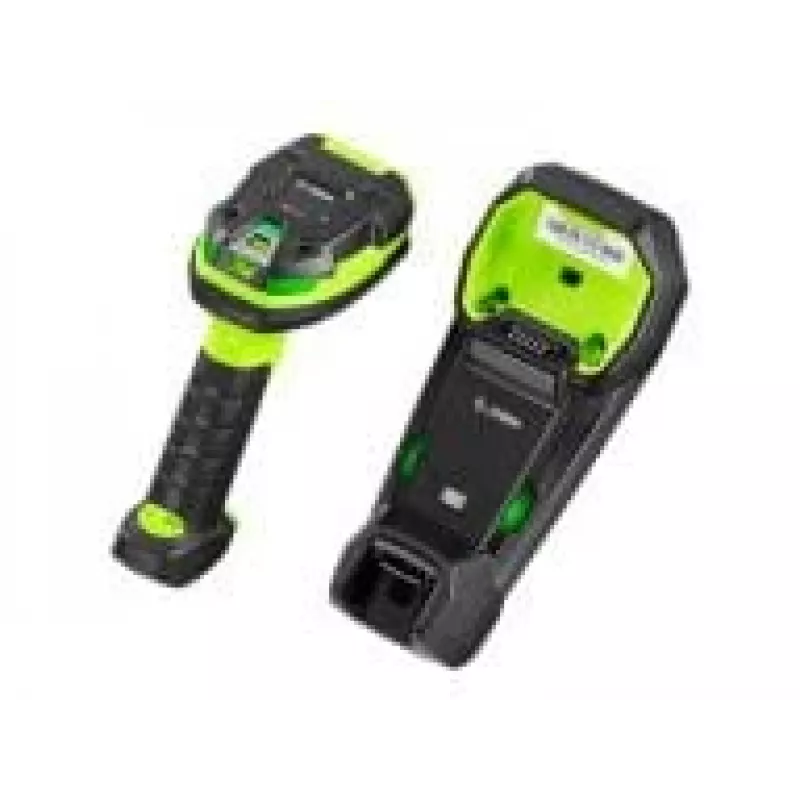

Zebra DS3678-SR Handheld bar code reader 1D/2D LED Black, Green

The Zebra DS3678-SR handheld bar code reader delivers ultra-rugged, high-performance 1D/2D barcode capture for demanding warehouse and manufacturing environments. Built as part of Zebra’s 3600 Ultra-Rugged Series, the DS3678-SR cordless model combines long-range scanning up to 1.5 m (5 ft), IP67 protection, and durable construction to withstand dust, water and shock while providing reliable, rapid capture of printed and electronic barcodes.

Advantages

The DS3678-SR provides superior scanning performance across virtually any 1D or 2D barcode, including damaged, dirty or poorly printed codes, and extends working range by approximately 30% compared with previous models. Its ultra-rugged design includes IP67 sealing for the scanner and an IP65-sealed cradle for cordless configurations, making it resistant to dust, spray and immersion. Manageability features let you remotely configure and update devices, format captured data for business systems and monitor battery statistics for cordless use.

Suitable for

• Warehouse receiving and put-away
• Manufacturing production line scanning
• Inventory management and cycle counting
• Shipping, packing and quality control stations

Key specifications

• Scanner type: 1D/2D handheld
• Sensor type: LED
• Read range: up to 1.5 m (5 ft) for typical barcodes
• Durability: IP67-rated scanner; IP65-sealed cradle (cordless)
• Connectivity: wired and wireless options, cordless range up to ~100 m (environment dependent)
• Battery: 3100 mAh Lithium‑Ion (cordless model)
• Weight: 0.407 kg
• Supported 1D barcodes: U.P.C., Plessey, MSI, GS1-128, Code 93, Code 39, Code 128, Code 11, Codabar
• Supported 2D barcodes: Composite Codes, Aztec, QR Code, Data Matrix, Han Xin, MaxiCode, Micro QR, MicroPDF417, PDF417, TLC-39
• Colour: Black, Green

How to use

For cordless operation, charge the DS3678-SR in its cradle and ensure the cradle is connected to your host system. Aim the scanner at the barcode and press the trigger; the LED aimer and decode algorithms will capture 1D or 2D barcodes from near contact up to about 1.5 m depending on barcode size and quality. Use wired operation by connecting the scanner to your terminal or POS via the appropriate cable. Configure data formatting and communication settings using Zebra’s management tools to ensure scanned data is delivered in the required format to your applications.

Recommendations

Place the cradle in a protected but accessible location for charging and communication. For best read rates, keep the scanner window clean and verify barcode contrast; if codes are frequently covered by shrinkwrap or contaminated, adjust scanner settings or use Zebra configuration tools to optimize decoding performance.
