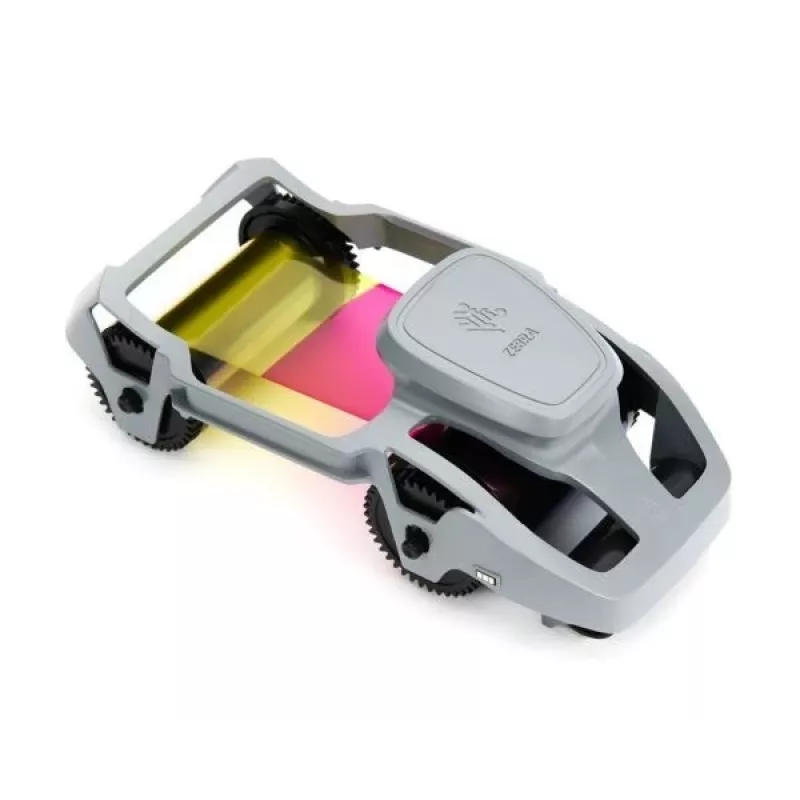

Zebra 800300-255EM printer ribbon 300 pages Black, Cyan, Magenta, Yellow

The Bixolon BCD-2000 is a customer-facing display with USB 2.0 interface that shows up to 120 characters. Designed for retail and point-of-sale environments, it provides adjustable height from 167 to 521 mm, a tilt range up to 13° and 360° screen rotation for flexible placement. The unit is black, weighs 0.85 kg and offers a brightness of 100 cd/m².

Advantages

The display supports flexible character alignment including horizontal and vertical orientation, adjustable font and line spacing, and center/left/right alignment. Two character fonts (8×16 and 9×17) are available and the model offers enhanced reliability compared with previous BCD-1000/1100 units. Images and text can be downloaded and shown via a utility, and the USB 2.0 connection enables simple plug-and-play setup with major operating systems such as Android, iOS and Windows.

Suitable for

• Retail point-of-sale counters
• Customer-facing displays in restaurants and cafes
• Reception desks and service counters

Key specifications

• Model: Bixolon BCD-2000
• Display capacity: up to 120 characters
• Interface: USB 2.0 (plug and play)
• Brightness: 100 cd/m²
• Adjustable height: 167–521 mm
• Tilt: 0–13° with five-step angle adjustor; 360° rotation
• Fonts: 8×16 and 9×17
• Weight: 0.85 kg
• Color: Black

How to use

Connect the Bixolon BCD-2000 to the host system using the USB 2.0 cable. Install any required utility or drivers if prompted to enable image download and advanced formatting features. Adjust the display height and tilt to the preferred viewing position, and rotate the screen as needed. Use the utility or host commands to set character alignment, font selection and spacing, then send text or image data to the display.

Recommendations

For optimal visibility maintain the factory brightness setting and position the display so the viewing angle is within the 0–13° tilt range; clean the screen with a soft, dry cloth and avoid abrasive cleaners. Use the supplied USB connection for reliable communication with Android, iOS and Windows hosts.
