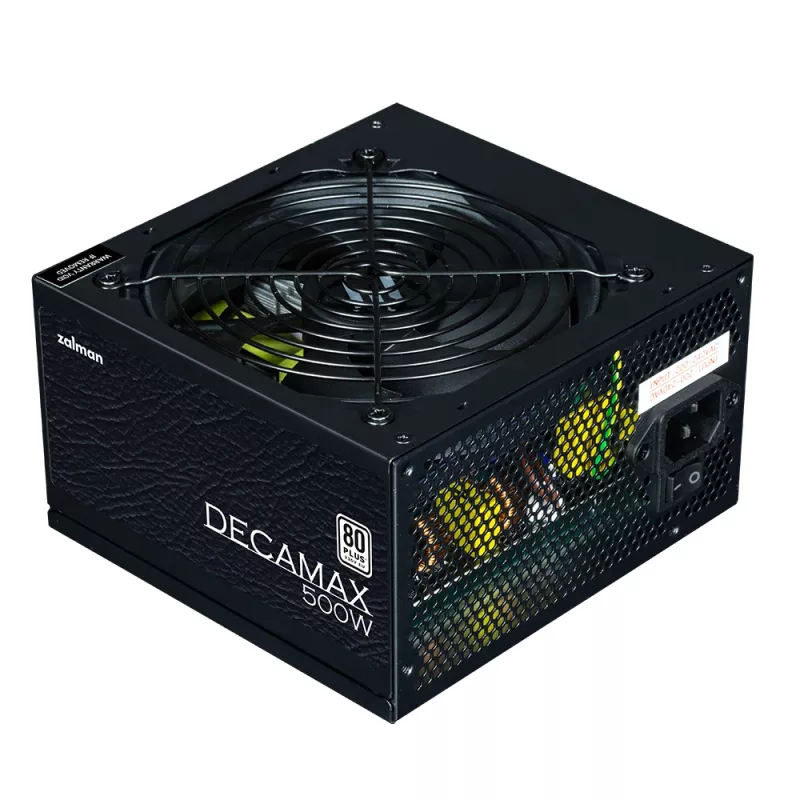

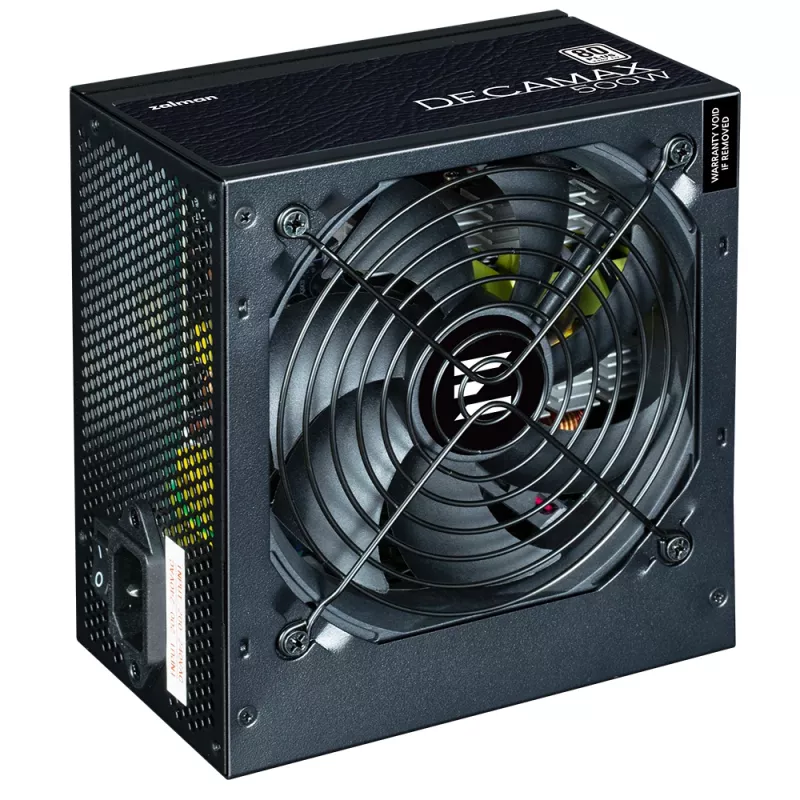

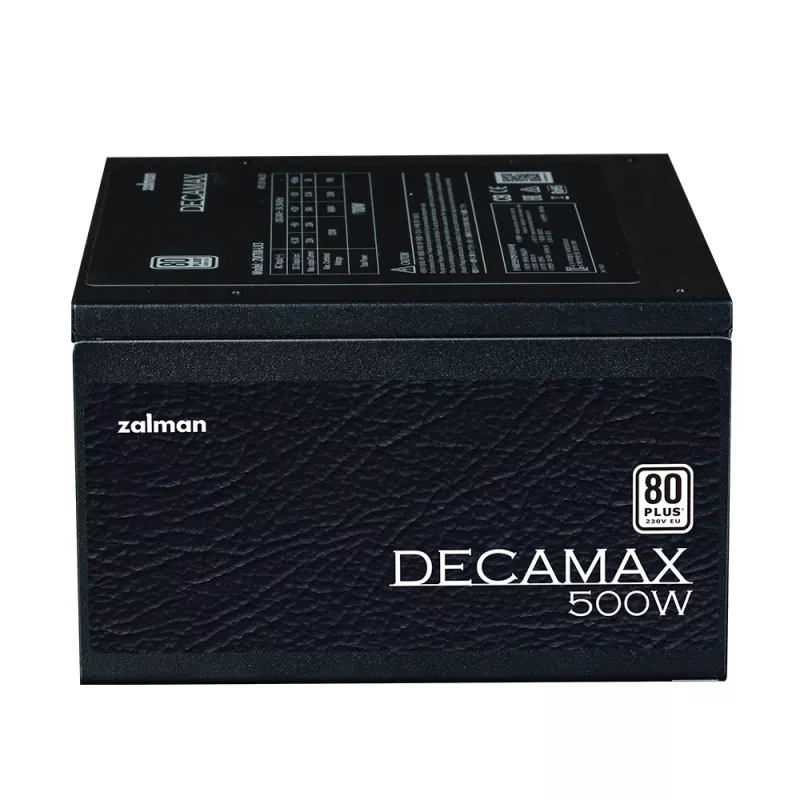

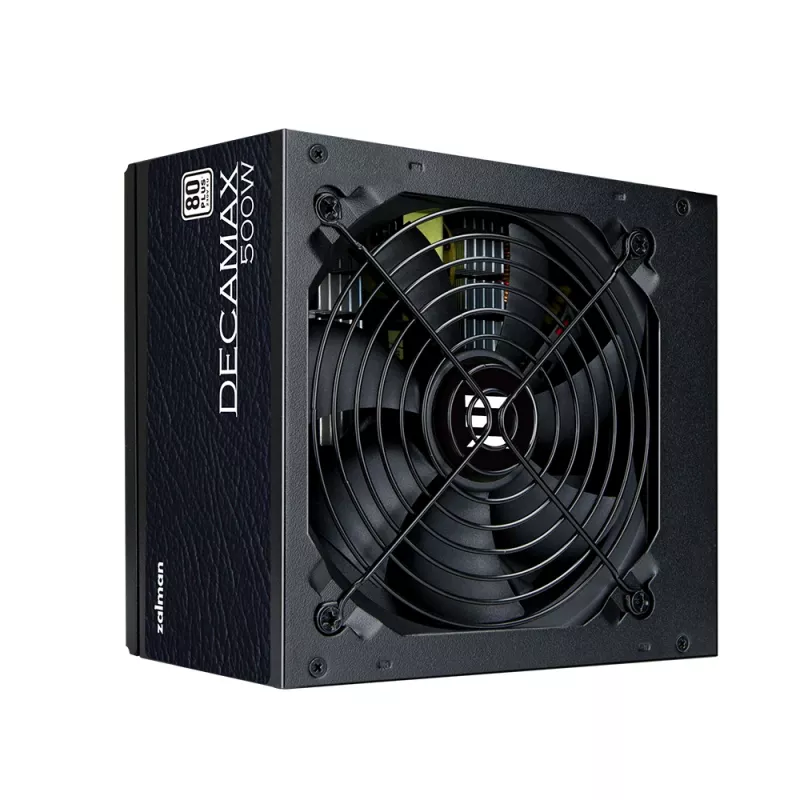

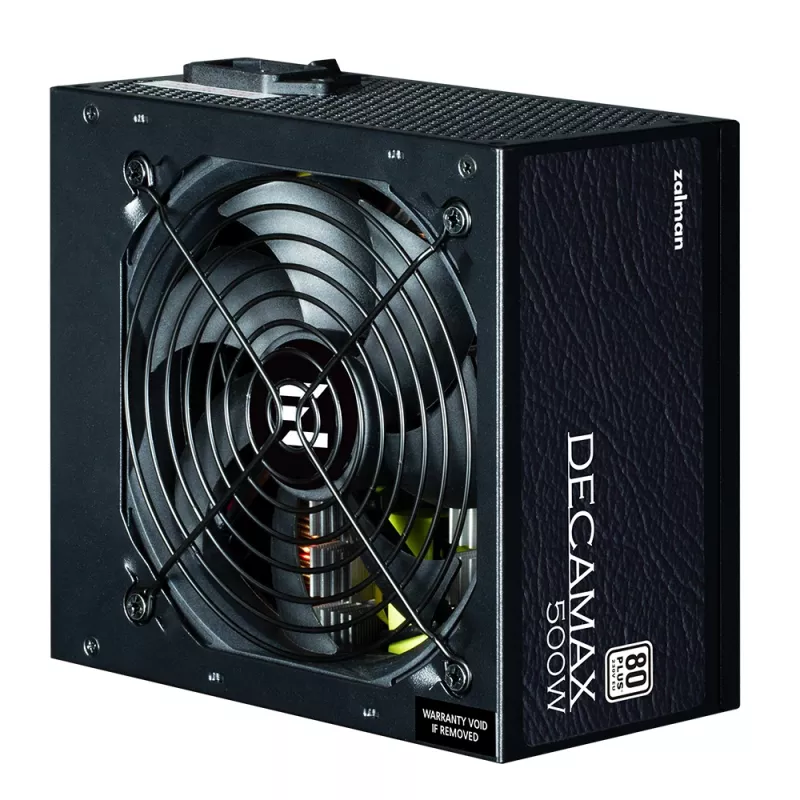

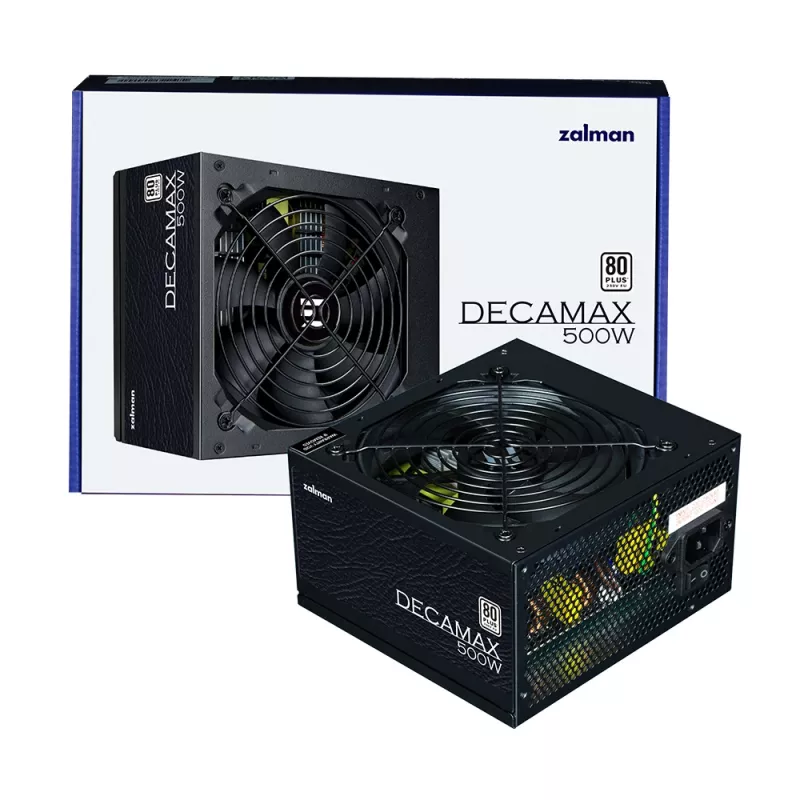

Zalman Decamax power supply unit 500 W ATX Black

80 PLUS 230V EU
Standard Certified
Superior Efficiency & Energy Savings

INTEL 5Vsb 3.0A Compatible
Ready to 5Vsb 3.0A for Intel Desktop Platform Form Factor Power Supply 1.42

Decamax 500W
Guaranteed Rated Output
Active AFC With 99%
Active PFC system with maximum power factor of 99% providing consistent and stable output as well as high energy efficiency

High performance Capacitor (105˚C)
Highly reliable capacitor used to supply stable Voltage even at high temperatures up to 105˚C

Built-In EMI Filter
EMI Filter is installed to suppress frequency that causes noise for better system operation

Switching Transform
Stable current is provided by the switching transformer without over loading the input current

12V Single Rail 91% Availability
Single rail design delivers up to +12V of available power at 91% output to provide stable voltage to CPU and GPU that are main PC components

Built-in Aluminum Heatsink
Dual Aluminum heatsink block has been installed to minimize internal heat production

Active PFC with Up to 99%
Maximum Power Factor
Active PFC system with maximum power factor of 99% providing consistent and stable output as well as high energy efficiency

Multiple Protection Circuit System
OPP, OVP, UVP, SCP
OPP (Over Power Protection)
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
SCP (Short-Circuit Protection)

HDB(Hydro-Dynamic Bearing)
Quiet and Long Lifespan
Cooling Technology
HDB(Hydro-Dynamic Bearing) has benefits of low noise and long life span
It discharges internal that quickly and provides
sufficient cooling at a low RPM to maximize stable, safe power supply

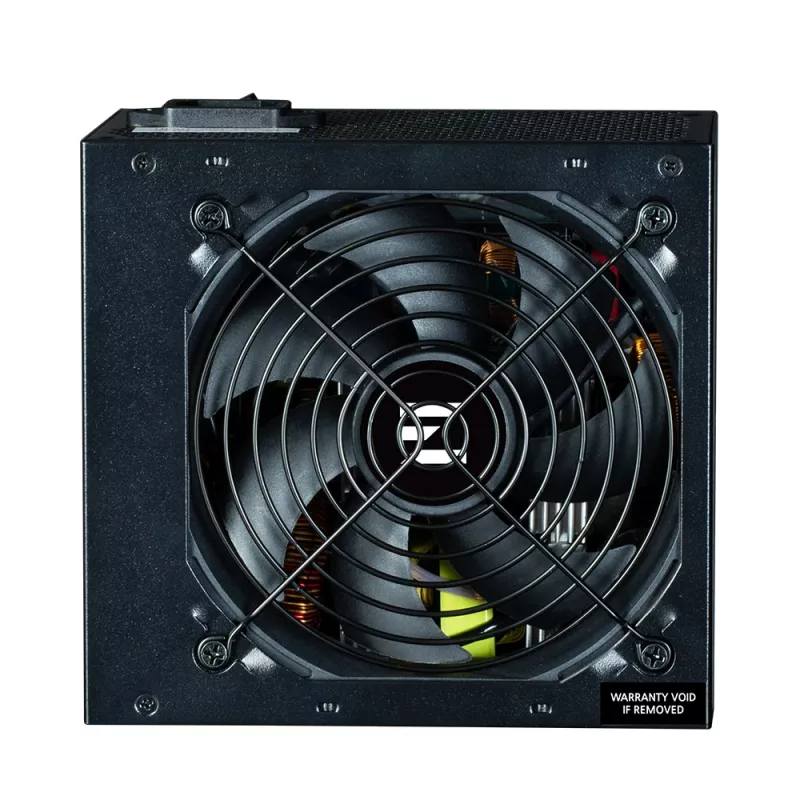

120mm HDB Fan
120mm Low-noise fan delivers powerful spin even at a low RPM to quickly removes heat from power supply for optimal cooling performance

Highly Energy-Efficient Standby
Power Supply(ErP Lot 6 Certified)
ZALMAN’s power supply has such remarkable energy efficiency, that during standby the power supply can be kept under 0.5W to avoid any unnecessary power consumption.
The power supply has acquired ErP LOT 6 which passed
European energy saving standards for environmental friendly and energy efficient experience for users.

Eco-Friendly Products
All Materials included are Environmentally safe and Harmless

RoHS Compliant
Certified products are environmentally safe that do nor cause harm to the human body
Certification is received when XRF testing determines that the 10 hazardous substances is below the standard value for the electronic products exported to Europe
Unlike other inexpensive products, Zalman products are produced from the beginning with RoHS standards in mind

Safety/EMI Approvals
KC, CE, CB, RCM, EAC, RoHS
Zalman’s Power supply has acquired many domestic and overseas certifications to ensure a safe and stable PC experience for all users

Standard-ATX
Standard ATX size provides wide compatibility 140 x 150 x 86(H)mm

All Black and simple Cables
Convenient Sleeve Cable
Users can install the system easily by delicately processed Sleeve cable

Black Flat Cable
Zalman applies flat cable to all cables, which makes the cables easier organize when building system

Zalman Decamax. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, KC, RoHS. Width: 140 mm, Depth: 150 mm, Height: 86 mm
