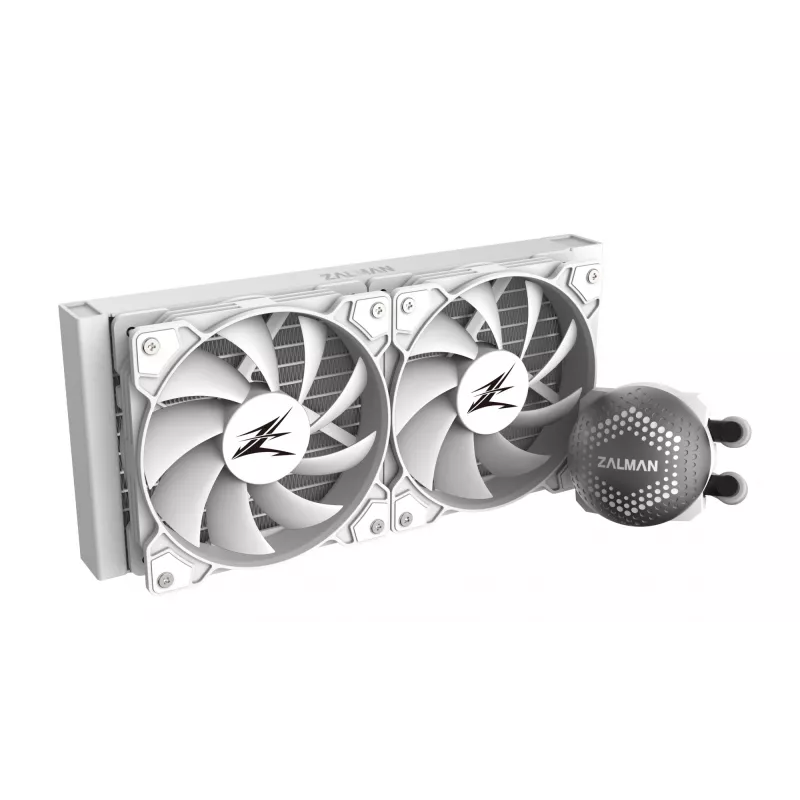

Zalman ALPHA24 White CPU Liquid Cooler 240mm Radiator 2 x 10 mm Fan ARGB pump Dual Processor All-in-one liquid cooler 12 cm

Zalman ALPHA24 CPU Liquid Cooler, White
Key Features
- Innovative triple water flow pump to maximize cooling performance
- Fascinating Sphere Pump Cover Design
- Compatible with LGA1700
- Support Motherboard ARGB Control
- Accurate PWM control fans and pumps to minimize noise, maximize flow rate
- Super Thermal Compound included

Innovative design with triple water flow pump
The innovative way to prevent pump overload by separating coolant inflow and outflow into three flow paths. Maximum cooling performance by minimizing residual liquid. 32mm 7-blade cooling fans for increasing coolant flow and velocity.

Unique design from ZALMAN
Sphere Pump lid design with addressable RGB lighting effects. The Alpha attracts the attention of users with different and aesthetic effects. Zalman brings a unique design to life with the Alpha series.

Fascinating Sphere Pump Cover
Planet-inspired pump cover design. It grabs the user's attention with different lights and provides visual satisfaction through the addressable RGB effects.

360° rotatable water block housing
Alpha Water Block is designed to rotate 360°. It can rotate freely according to the direction of the tube and the location of the logo. The radiator can be mounted in different positions.

Perfect synchronization ARGB
Exclusive design with ARGB effect. Control your ARGB with motherboard that supports 3-pin 5V RGB SYNC. The impact of ARGB lighting allows harmonized lighting effects.

Anti-Vibration Rubber Pads
The housing is made of robust material. It has excellent durability and anti-vibration rubber pads to minimize the vibrations generated during fan operation.

ARGB controller
The ARGB controller allows users to switch between LED modes, colors and speeds when using a motherboard without a 5V addressable RGB header. Users can switch different colors and LED speed options.

PWM control
PWM can control the speed according to the user's custom optimization settings.

Sturdy braided nylon cover and rubber tube
Durable, flexible design against temperature fluctuations and high pressures.

Aluminum radiator with maximum heat dissipation area
Heat dissipation fins in aluminum radiator provide great airflow. Rapid cooling of coolant. Mounting holes on both sides for easier installation. Pull and push setup for maximum airflow.

Specifications
Model: Alpha24

Pump
Dimensions: 68 (L) x 68 (W) x 62 (H) mm
Materials: ABS, PC, PPS, pure copper
Speed: 3,200 ± 10%
Bearing Type: Ceramic Bearing
Water flow: 0.83L/min

Radiator
Dimensions: 120 x 276 x 27 (H) mm
Materials: Pure aluminum

Fan
Dimensions: 120mm x 120 x 25mm
Bearing Type: Long Life Bearing
Speed: 500 1,800 RPM ± 200 RPM
Max.Noise Level: 33dB(A) ±10%
Maximum air pressure: 1.9 mm H²O ± 10%
Control method: PWM control
LED: Addressable RGB
Socket Compatibility: Intel LGA 2066/2011-V3/2011/1700/1200/115X, AMD AM4/AM3

How to use

Install the radiator in a compatible case position using the mounting holes on either side; the water block housing can rotate 360° to align the tubes and logo orientation. Mount the pump/block onto the CPU socket using the supplied mounting hardware for your platform. Connect the fans and pump to motherboard headers for PWM and ARGB control, or use the included ARGB controller if your motherboard lacks a 5V addressable header. Apply or confirm the included thermal compound on the CPU before securing the block for optimal thermal transfer.

Recommendations

For balanced performance and acoustics, use PWM control and configure fan curves in the motherboard BIOS or software; ensure good case airflow and secure anti-vibration pads to reduce noise. Verify ARGB connections match a 3-pin 5V addressable header or use the included controller to avoid voltage mismatch.
