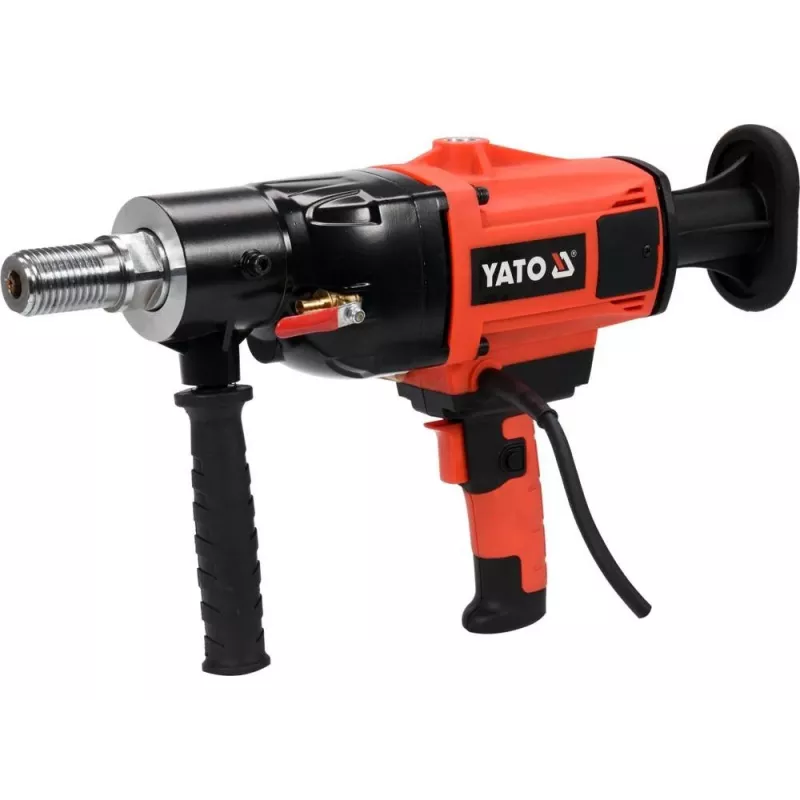

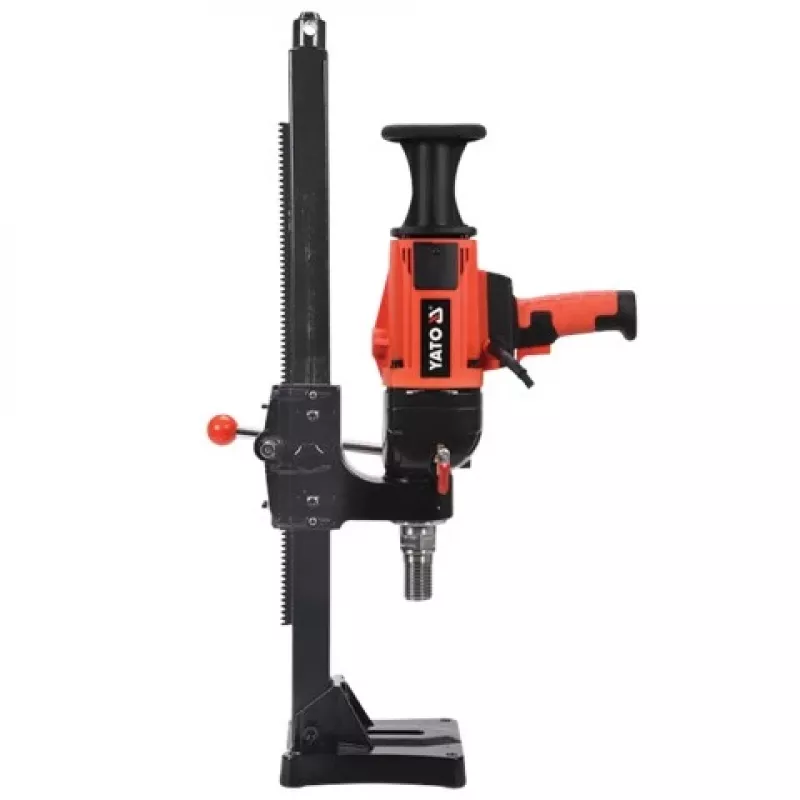

YATO Concrete Drilling Rig with Tripod 2200W

The YATO Concrete Drilling Rig with Tripod is a professional-grade tool designed for precise and efficient core drilling in concrete, brick, and masonry. Powered by a robust 2200W motor, this rig delivers high torque and reliability for demanding construction and renovation projects. The integrated water cooling system with quick connector ensures optimal bit performance and longevity, while the mechanical safety clutch provides added protection during operation.

Advantages

High power 2200W motor for heavy-duty drilling. Three-speed gearbox (400/800/1200 rpm) for versatile applications. Aluminum stand with wheels and angle adjustment for easy positioning and stability. Mechanical safety clutch prevents overload and damage. Integrated water cooling system with quick connector for efficient dust-free drilling.

Suitable for

• Professional contractors and construction workers
• Core drilling in concrete, brick, and masonry walls and floors
• Installation of pipes, cables, and anchors
• Renovation and demolition projects

Key specifications

• Power: 2200 W
• Voltage: 230 V
• Frequency: 50 Hz
• Max. Drilling Diameter (Concrete): 200 mm
• Max. Drilling Diameter (Brick/Masonry): 250 mm
• Spindle Thread: 1 1/4" UNC
• Number of Gears: 3
• Gear 1 Speed: 400 rpm
• Gear 2 Speed: 800 rpm
• Gear 3 Speed: 1200 rpm
• Safety Clutch: Mechanical
• Water Cooling System: Integrated with quick connector
• Overload Protection: Yes
• Stand Material: Aluminum
• Stand Features: Wheels, Angle adjustment
• Max. Drilling Angle: 45 degrees
• Motor Type: Electric (Brush motor)
• Recommended Core Bit Type: Diamond
• Water Connection Thread: G 1/2"
• Cable Length: 3 m

Recommendations

For best results, use diamond core bits and ensure proper water flow during operation. Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and hearing protection. Follow the manufacturer's instructions for maintenance and safe operation.
