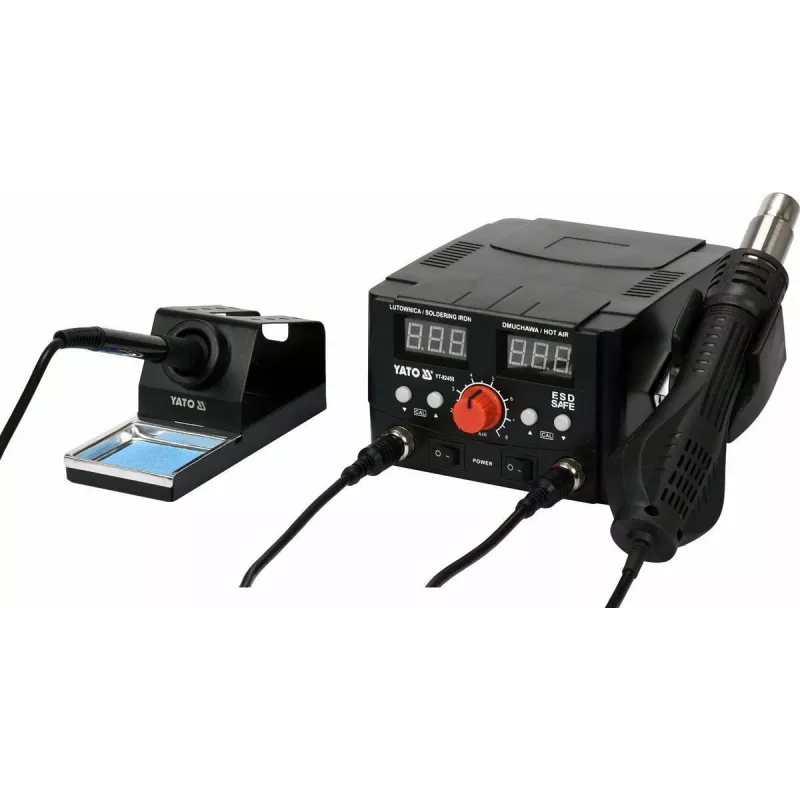

YATO AN-20904 2-in-1 Soldering Station 750W with Hot Air Rework, Dual LED Display, ESD Safe

Soldering and rework tasks often require switching between separate tools, which slows down workflow and clutters the workbench. The YATO AN-20904 2-in-1 soldering station combines a 60W soldering iron and a 690W hot air gun in one unit, so you can handle both precision soldering and SMD rework without changing stations. The dual LED display shows real-time temperature for each channel, and the digital calibration keeps the heat accurate to ±1°C for the iron and ±2°C for the hot air. A diaphragm pump delivers up to 120 L/min airflow, and the auto-cooling function protects the hot air gun after use. ESD-safe design helps prevent static damage to sensitive components.

Who is it for

This station suits electronics repair technicians, hobbyists, and lab engineers who regularly work with through-hole and surface-mount components. It is especially useful when you need to remove or install small ICs, connectors, or heat-shrink tubing.

Main features

• 2-in-1 soldering and hot air rework in a single station
• Soldering iron: 60W, 200–480°C, ceramic heating element, 900M series tips
• Hot air gun: 690W, 100–480°C, metal coil heating element, max 120 L/min airflow
• Dual LED digital display with independent temperature control
• ESD-safe design protects sensitive electronics
• Auto-cooling function for hot air gun extends component life
• Protection against overload, short circuit, and over-temperature
• Includes soldering iron, hot air gun, stand, 3 hot air nozzles, and sponge

Specifications

• Total power: 750W
• Soldering iron power: 60W
• Hot air gun power: 690W
• Soldering iron temperature range: 200–480°C
• Hot air gun temperature range: 100–480°C
• Air flow capacity: max 120 L/min
• Display: dual LED digital
• Heating element (soldering iron): ceramic
• Heating element (hot air gun): metal coil
• Pump type: diaphragm pump
• Input voltage: 230V AC, 50Hz
• Temperature stability: ±1°C (soldering iron), ±2°C (hot air)
• Tip compatibility: 900M series
• Nozzle compatibility: standard 22mm nozzles
• Protection features: overload, short circuit, over-temperature

Tips

Always tin the soldering tip before first use and after each session to prevent oxidation. For hot air rework, start with lower airflow and temperature, then increase gradually to avoid blowing small components off the board. Use the auto-cooling function after hot air operation to prolong the heating element's life.
