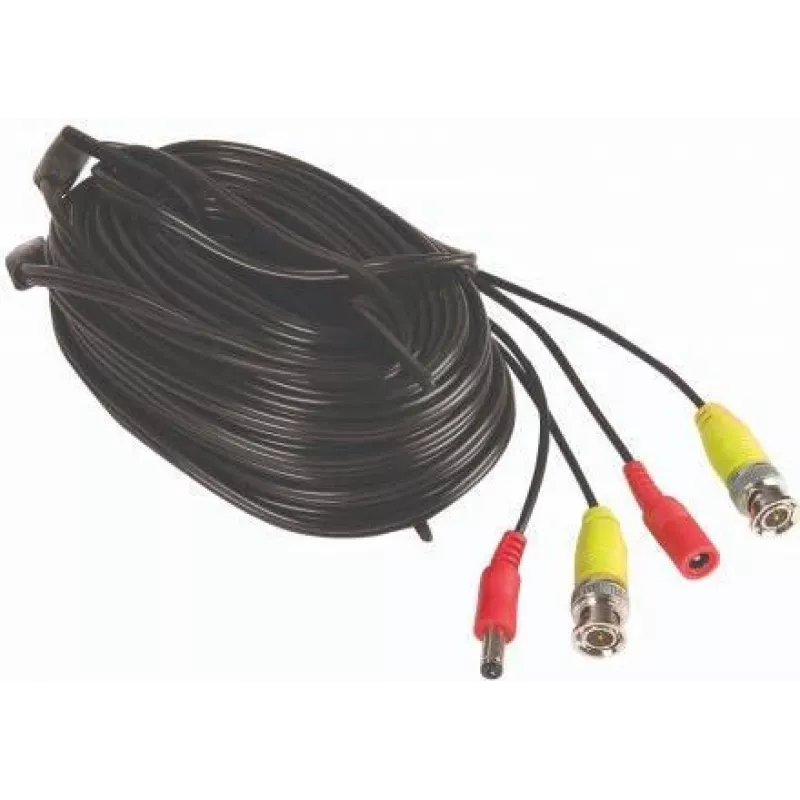

Yale HD BNC Cable 18m coaxial cable Black BNC connectors

The Yale HD BNC Cable 18m is a coaxial cable engineered for high-definition video transmission in CCTV and surveillance systems. With an 18-metre length and robust black insulation, this cable connects cameras, recorders and monitors using BNC connectors to provide stable analogue HD signal paths for video surveillance installations.

Advantages

This coaxial cable offers consistent signal quality over its 18 m length and is constructed with durable outer insulation to resist wear in indoor and protected outdoor installations. The moulded BNC connectors ensure a secure mechanical connection and reduce the risk of signal loss at joints. The cable's impedance and shielding are designed to minimise interference and maintain clear video output for compatible HD analogue cameras and recorders.

Suitable for

Key specifications

How to use

Route the Yale HD BNC Cable between the camera and the recording or display device, avoiding tight bends and sharp edges that may damage the cable. Push the BNC connectors onto the mating BNC sockets and twist to lock them in place until secure. For longer runs, ensure connectors and junctions are kept dry and, if installed outdoors, use appropriate weatherproofing on connections. Test the video feed after connection to confirm signal integrity and make any necessary adjustments to cable routing or connector seating.

Recommendations

For optimal performance, keep cable runs within recommended lengths for your specific camera and DVR system, use proper grounding and avoid running coaxial cable parallel to high-voltage power lines. Use additional shielding or surge protection where lightning or electrical interference is a concern.
