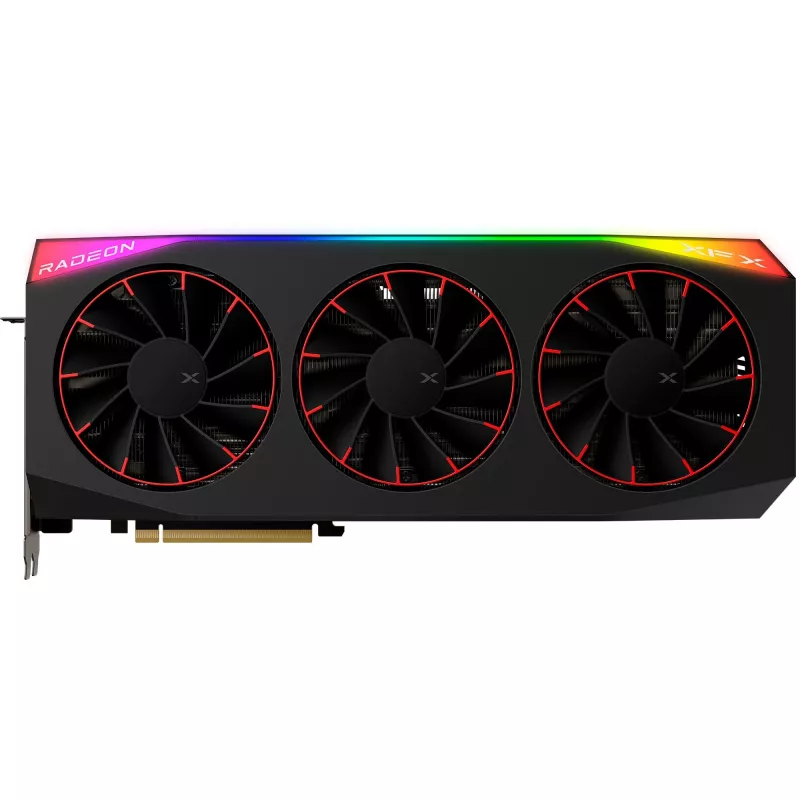

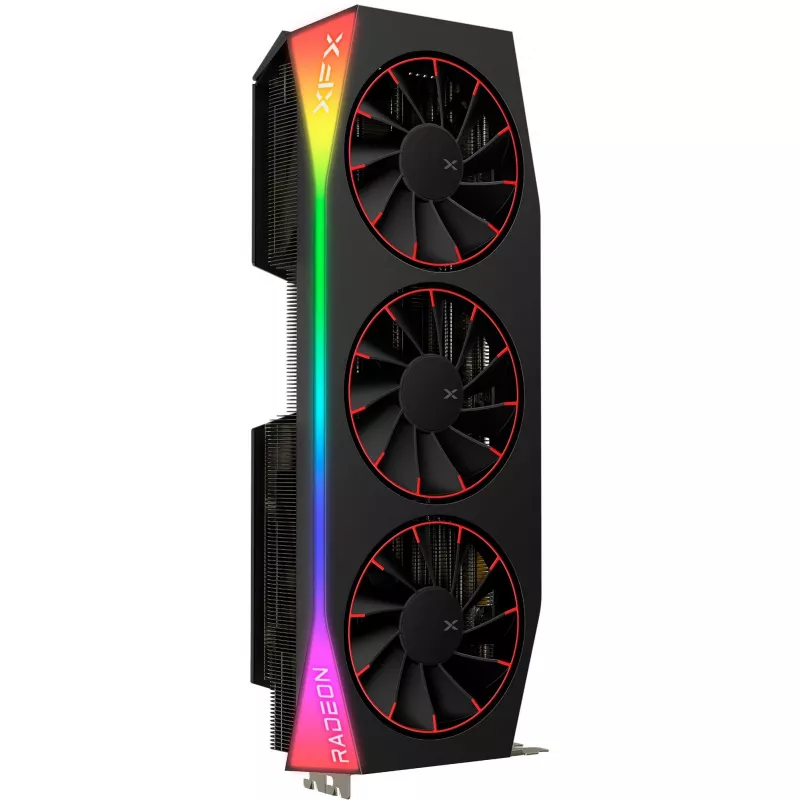

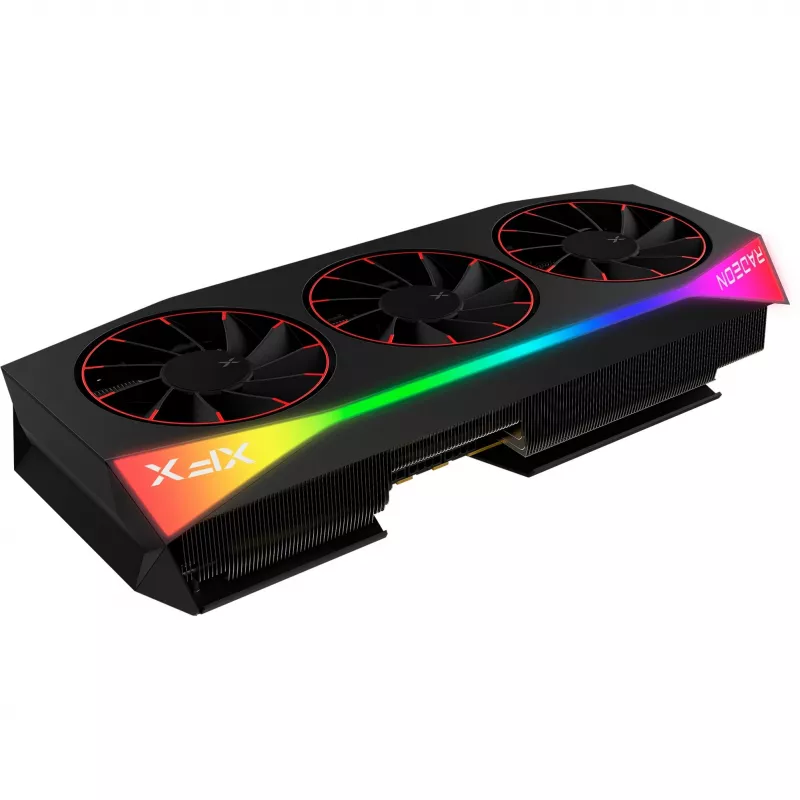

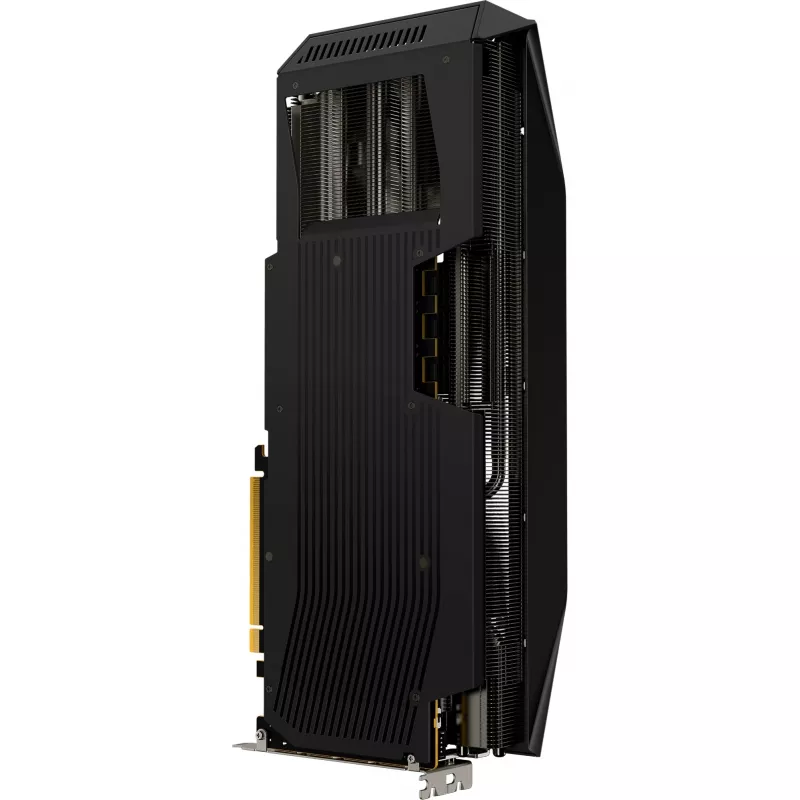

Graphics card XFX Radeon RX 9070 XT OC — 12GB GDDR6, PCIe 5.0, 3x DisplayPort 2.1, HDMI 2.1, 3 fans, 360×155×72 mm

XFX Radeon RX 9070 XT OC is a discrete graphics card based on the Radeon RX 9070 XT GPU with 12 GB GDDR6 memory, 256-bit memory bus and up to 640 GB/s bandwidth. The card uses a PCI Express 5.0 interface, features factory overclocking with boost clocks up to 3100 MHz (OC), active cooling with three fans, multi-colour illumination and a 3.5-slot full-height/full-length design. Video outputs include three DisplayPort 2.1 ports and one HDMI 2.1 port. The card requires three 8‑pin supplementary power connectors and a minimum 800 W system power supply. Supported technologies include DirectX 12 Ultimate and AMD FreeSync; the card is compatible with Windows 11.

Advantages

The graphics card combines a high number of stream processors and an elevated boost clock for strong raster and compute performance, while 12 GB of GDDR6 memory and a 256-bit bus provide high bandwidth for gaming at high resolutions. A triple-fan active cooler and a 3.5-slot design improve thermal performance and sustained clocks under load. Modern connectivity with DisplayPort 2.1 and HDMI 2.1 enables high-resolution and high-refresh-rate displays. Factory overclocked (OC) edition offers higher out-of-the-box frequencies for increased performance.

Suitable for

• High-resolution gaming and esports at 1440p–4K
• Content creation workloads that benefit from GPU acceleration (rendering, video editing)
• Multi-monitor setups and high-refresh-rate displays
• Systems with PCIe 5.0 motherboards seeking modern connectivity

Key specifications

• Graphics processor: Radeon RX 9070 XT
• Compute units: 64; stream processors: 4096
• Processor base frequency: 1870 MHz; boost frequency up to 3100 MHz (OC), gaming mode boost up to 2570 MHz
• Memory: 12 GB GDDR6; data rate 20 Gbit/s; memory bus 256 bit; maximum bandwidth up to 640 GB/s
• Interface: PCI Express 5.0
• Display outputs: 3× DisplayPort 2.1, 1× HDMI 2.1
• Cooling: active, 3 fans; illumination: multi-colour
• Power: 3 × 8-pin supplementary power connectors; recommended system PSU: minimum 800 W
• Form factor: 3.5-slot, full-height/full-length; dimensions: 360 × 155 × 72 mm
• Supported APIs/technologies: DirectX 12 Ultimate, AMD FreeSync

How to use

Install the graphics card into an available PCI Express x16 slot on a compatible motherboard (PCIe 5.0 recommended for full bandwidth). Secure the card in the case using the full-height bracket and connect three 8-pin PCIe power connectors from a sufficient power supply (minimum 800 W). Connect displays to the DisplayPort 2.1 or HDMI 2.1 outputs as needed. Install the latest AMD drivers for Windows 11 to ensure optimal performance and feature support. Ensure adequate case airflow to maintain cooling efficiency during extended load.

Recommendations

For stable operation at high load and to take full advantage of the card’s power delivery and cooling, use a high-quality 800 W (or greater) PSU with the required 3×8-pin connectors, ensure case ventilation, and keep drivers updated to the latest AMD release.
