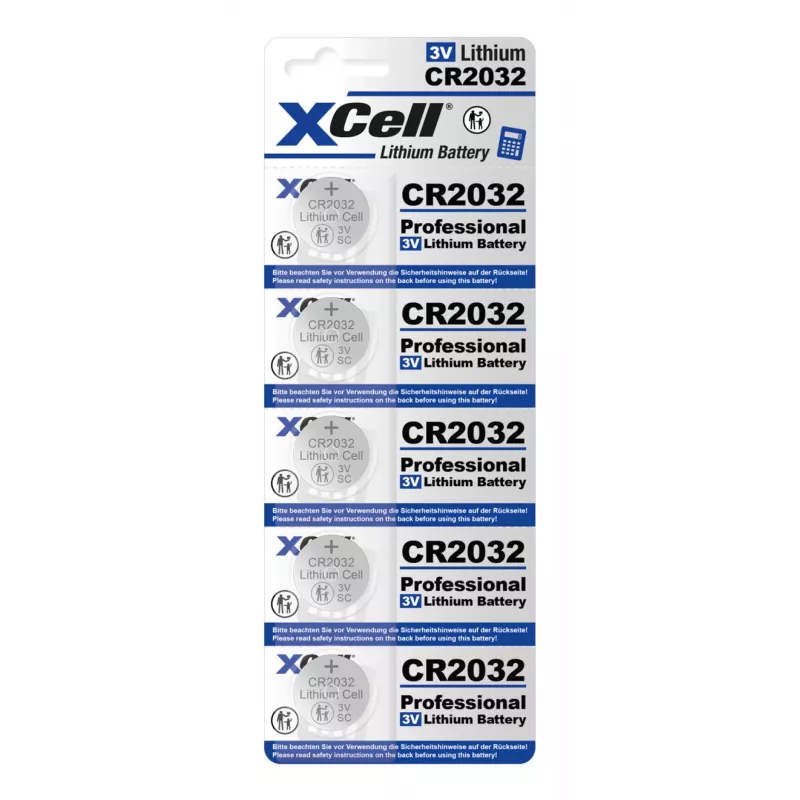

XCell CR2032 Button Cell Battery - 3V Lithium Coin Cell (145538)

The XCell CR2032 is a high-quality lithium manganese dioxide button cell battery, designed for reliable long-term power in a wide range of electronic devices. With a nominal voltage of 3V and a capacity of 220 mAh, this coin cell offers excellent energy density and a shelf life of up to 10 years. It is a direct replacement for many standard CR2032 batteries, including DL2032, ECR2032, and BR2032.

Advantages

This battery is mercury, lead, and cadmium free, making it an environmentally friendly choice. Its flat top terminal design ensures compatibility with most devices requiring a CR2032 cell. The wide operating temperature range (-20°C to +70°C) allows use in various conditions, from cold outdoor environments to warm indoor settings.

Suitable for

• Car key fobs and remote controls
• Medical devices and fitness trackers
• Watches and calculators
• Computer motherboards (CMOS backup)
• Toys and other small electronics

Key specifications

• Battery Type: Button Cell / Coin Cell
• Chemistry: Lithium Manganese Dioxide (LiMnO2)
• Voltage: 3V
• Capacity: 220 mAh
• Diameter: 20 mm
• Thickness: 3.2 mm
• Rechargeable: No (Primary Battery)
• Shelf Life: Up to 10 years
• Operating Temperature: -20°C to +70°C
• Terminal Type: Flat Top
• IEC Standard: CR2032

Recommendations

For optimal performance, store the battery in a cool, dry place. Ensure the device is powered off before inserting or replacing the battery. This battery is not rechargeable; do not attempt to recharge it.
