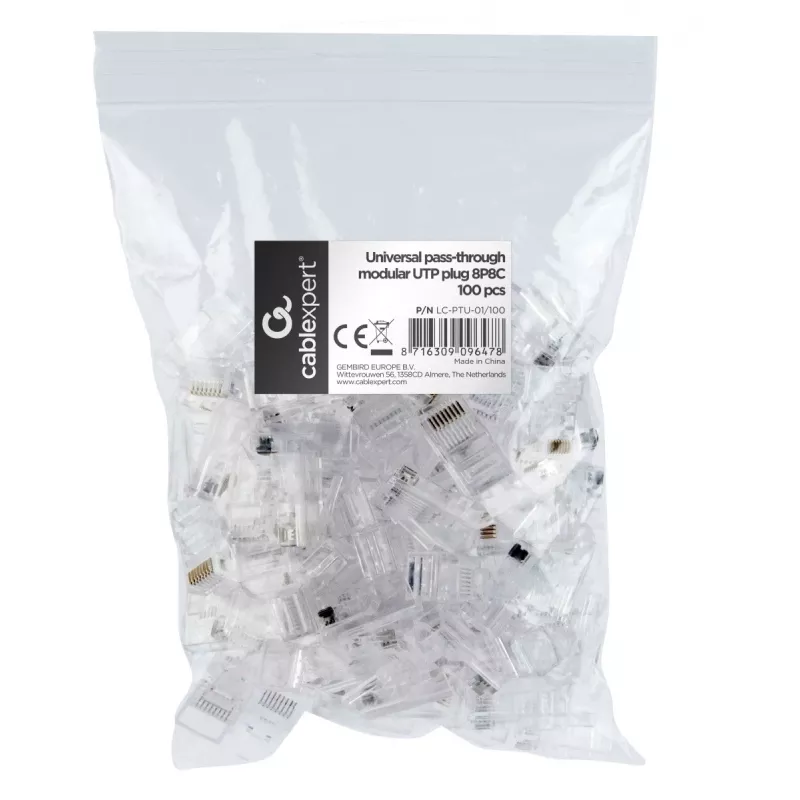

Wire Connector Gembird LC-PTU-01/100 8P8C RJ45 Transparent

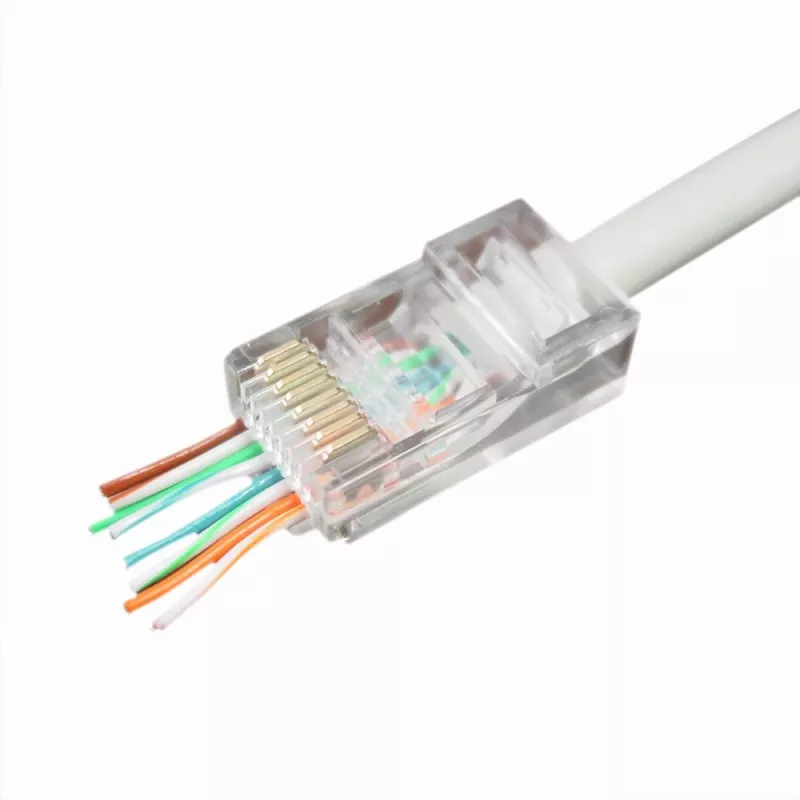

This RJ45 8P8C connector allows twisted-pair wires to be inserted fully through the connector and out the front, making it easy to verify wiring order and to pull the connector tightly over the cable jacket for a secure rear seat. Reduced distance between wire twists and contacts improves electrical performance.

Advantages

The design enables visible verification of the wiring order, tighter seating at the cable rear by pulling the connector over the jacket, and reduced untwisted conductor length which enhances signal integrity and overall performance.

Key specifications

• Type: RJ45 8P8C connector
• Cable compatibility: twisted-pair network cables
• Wire routing: wires pass completely through connector and exit front
• Benefit: reduced untwisted length between twists and contacts

How to use

Strip the cable jacket to the recommended length, insert the individual conductors through the connector so they exit at the front, verify the wiring order visually, then pull the connector down over the cable jacket and terminate according to your crimping tool instructions to achieve a secure seat and reliable contact.

Recommendations

Use with appropriate twisted-pair network cables and a compatible crimping tool; ensure correct jacket strip length to allow the connector to seat tightly and minimize untwisted conductor length for optimal performance.
