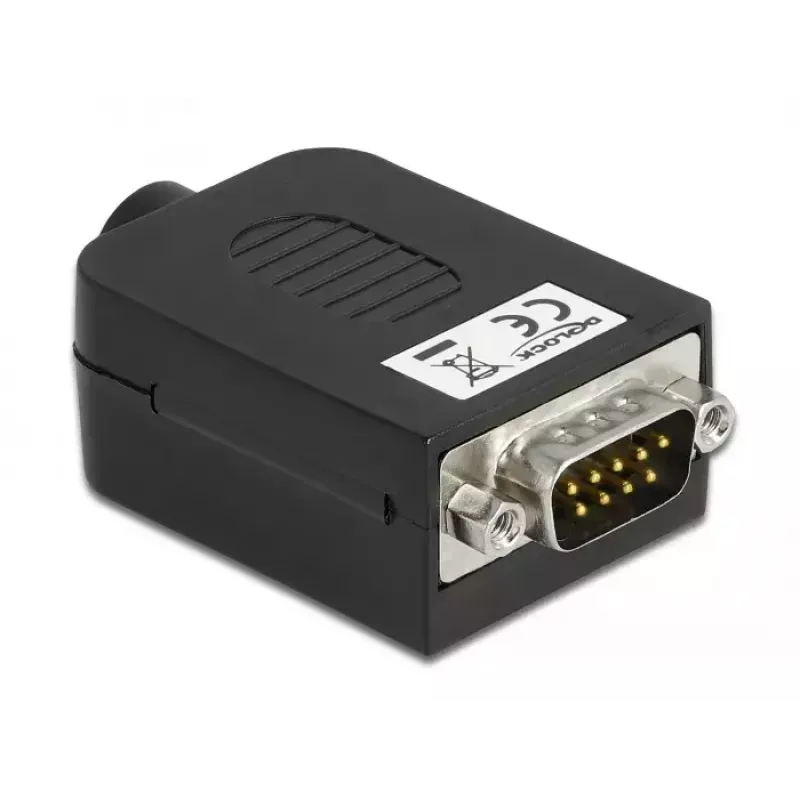

Wire connector DeLOCK 66264 Sub-D 9 10 pin terminal block Black

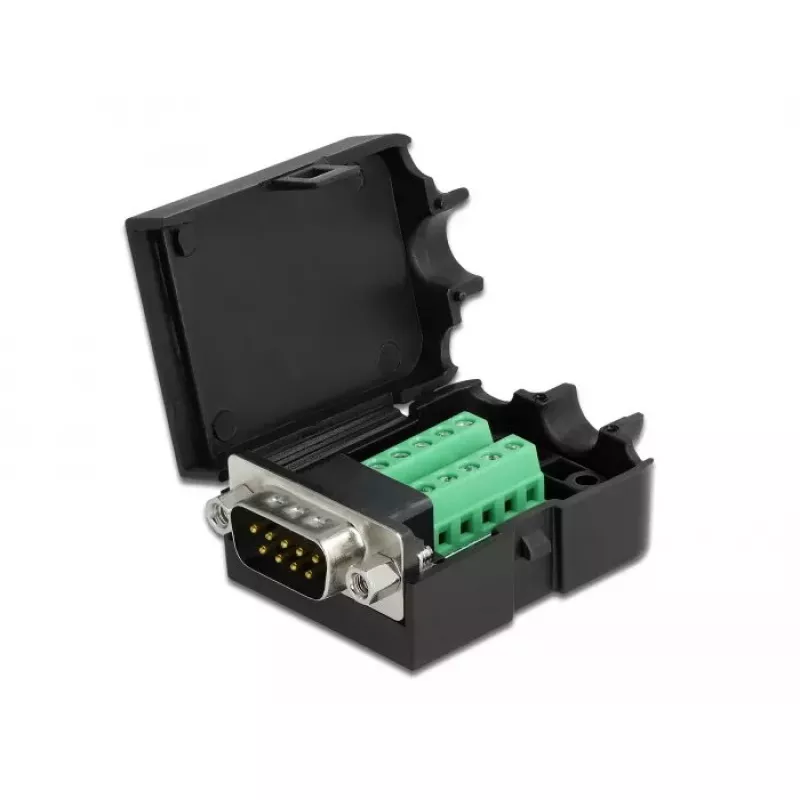

The DeLOCK 66264 wire connector is a compact adapter with Sub-D 9 and 10 pin terminal blocks designed to connect bare wires. Housed in a black plastic enclosure, it protects the printed circuit board from dirt and mechanical damage while providing integrated strain relief to secure the cable. The connector accepts AWG 26–18 conductors and is suitable for both industry-specific uses and hobby projects such as railway modelling.

Advantages

The plastic enclosure provides protection for the PCB and attached wiring, and the integrated strain relief fixes the cable to reduce stress on the terminations. Its small dimensions (34.4 × 51.8 × 21 mm) make it easy to integrate into tight spaces. The device supports a range of wire gauges (AWG 26–18) and comes in a single-piece polybag pack for convenient storage and handling.

Suitable for

• Industry applications requiring Sub-D terminal connections
• Hobby projects such as railway modelling
• Compact electronic enclosures and retrofit wiring

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66264
• EAN: 4043619662647
• Connector type: Sub-D 9 and 10 pin terminal block
• Supported wire gauge: AWG 26–18
• Colour: Black
• Dimensions (W × D × H): 34.4 × 51.8 × 21 mm
• Packaging: 1 piece in polybag

How to use

Strip the wire to the appropriate length for the terminal and insert the bare conductor into the corresponding terminal pin. Secure the conductor according to the terminal block fastening method (screw or clamp) until the connection is firm. Place the assembled PCB and wiring inside the plastic enclosure and route the cable through the strain relief. Ensure the strain relief is engaged so the cable is fixed and will not put tension on the terminals.

Recommendations

Use AWG 26–18 conductors only, and verify that wire insulation is stripped to the correct length before insertion. Avoid exceeding mechanical stress limits and ensure the enclosure is intact to maintain protection against dirt and damage.
