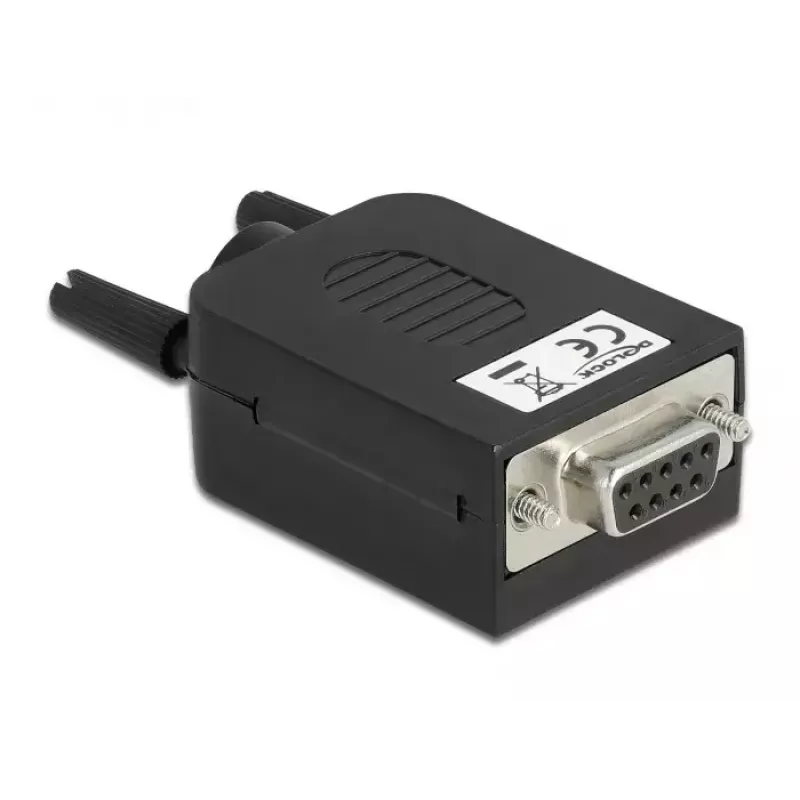

Wire connector DeLOCK 66257 Sub-D 9 10 pin terminal block Black

This Delock wire connector 66257 provides Sub-D 9 and 10 pin terminal blocks in a compact black plastic enclosure, allowing bare wires to be connected securely. The housing protects the PCB from dirt and mechanical damage while the integrated strain relief fixes the cable inside the enclosure. The connector supports common AWG sizes and is suitable for both industry and hobby use, such as railway modelling.

Advantages

The plastic enclosure offers protection for the PCB and assembled connections. Integrated strain relief secures cables and reduces stress on solder joints and terminals. Compact dimensions (34.4 mm × 51.8 mm × 21 mm) and support for multiple wire gauges make the unit versatile for different setups.

Suitable for

• Connecting bare wires to Sub-D 9 and 10 pin interfaces
• Electronic prototypes and small industrial applications
• Hobby projects, e.g. model railways and DIY electronics

Key specifications

• Brand: DELOCK
• Model / MPN: 66257
• Product colour: Black
• Connector type: Sub-D 9 and Sub-D 10 pin terminal block
• Supported wire sizes: AWG 26–18
• Dimensions (W × D × H): 34.4 mm × 51.8 mm × 21 mm
• Packaging: 1 piece in polybag
• EAN: 4043619662579

How to use

Strip the insulation from the wire end according to the supported AWG sizes (26–18). Insert the bare wire into the appropriate terminal on the Sub-D terminal block and tighten the terminal screws to secure the conductor. Place the cable and connector assembly inside the plastic enclosure so the integrated strain relief can be positioned around the cable. Close or mount the enclosure as required for your installation.

Recommendations

Use wires within the specified AWG range and tighten terminals to the recommended torque for reliable contact. Ensure the enclosure is mounted in a location protected from excessive mechanical stress and moisture. For safety, disconnect power before wiring.
